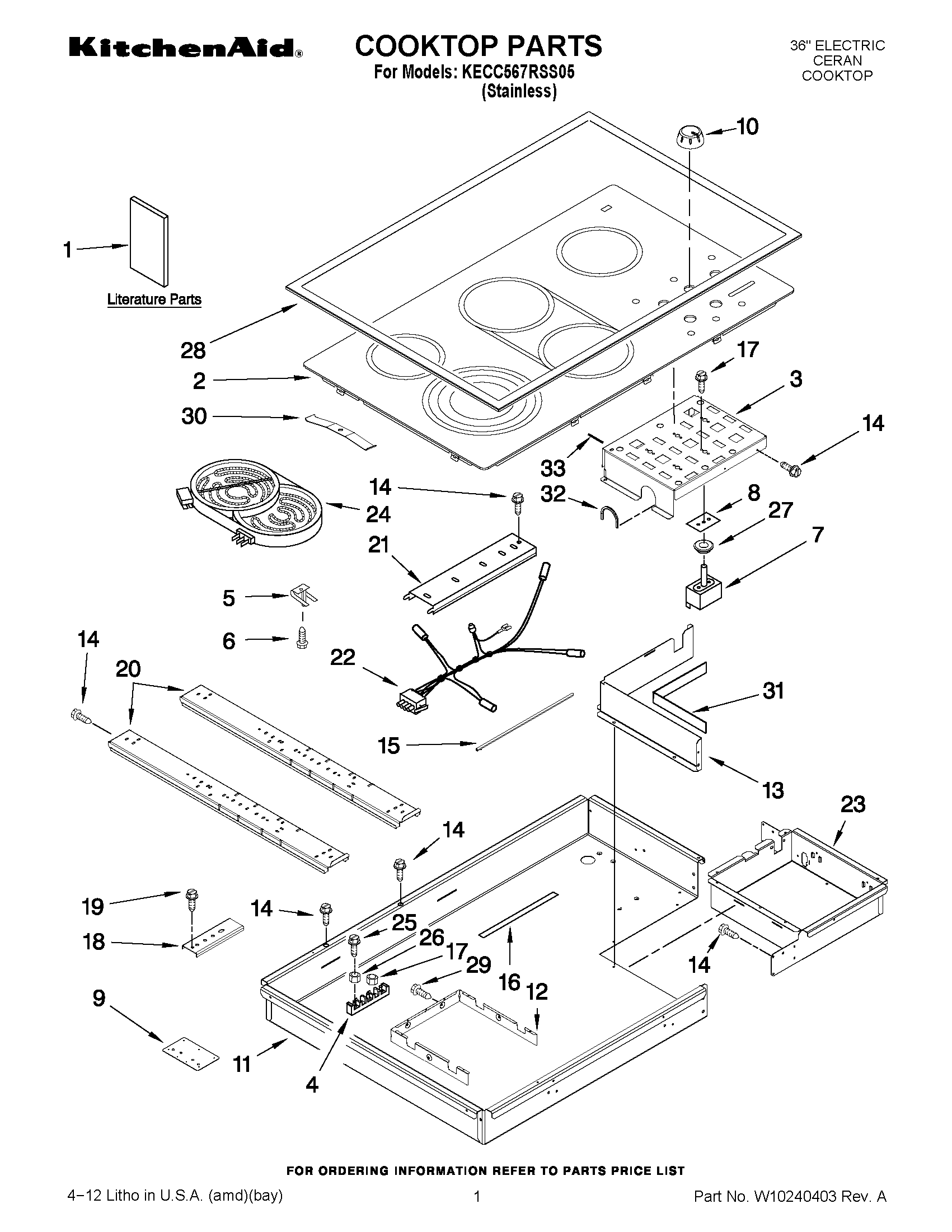

KECC567RSS05 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1Installation Instructions (Undercounter Oven)
1Use & Care Guide
1SAFER COOKING TIPS (ENGLISH
1Wiring Diagram
2Cooktop, Glass (Black)
3Bracket, Switch
4WP8203546 Whirlpool Terminal Block
59759094 Whirlpool Spring
6WP486754 Whirlpool Compactor Screw
7Switch, Infinite (Single (2))
7Switch, Infinite (Triple)
7Switch, Infinite (Dual)
83183956 Whirlpool Oven Seal Switch
9Bracket, Bottom
10WP8286096BL Whirlpool Knob
11Box, Burner
12Shield, Heat
13Wall, Inside
14WP3196557 Whirlpool Screw
15Seal, Heat Shield
16Seal, Foam (36“)
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Box, Control
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
24W10823699 Whirlpool Right Front Surface Element
24W10823695 Whirlpool Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
25WP3196163 Whirlpool Screw
26WP112432 Whirlpool Nut Assembly
278285469 Whirlpool Oven Seal Switch
28Frame, Cooktop (Stainless Only)
29W10491985 Whirlpool Screw
30CLIP, SPRING (FOR BRIDGE)
31Inside Wall, Insulation
32GROMMET, FLEXIBLE
33W10491984 Whirlpool Switch Seal
