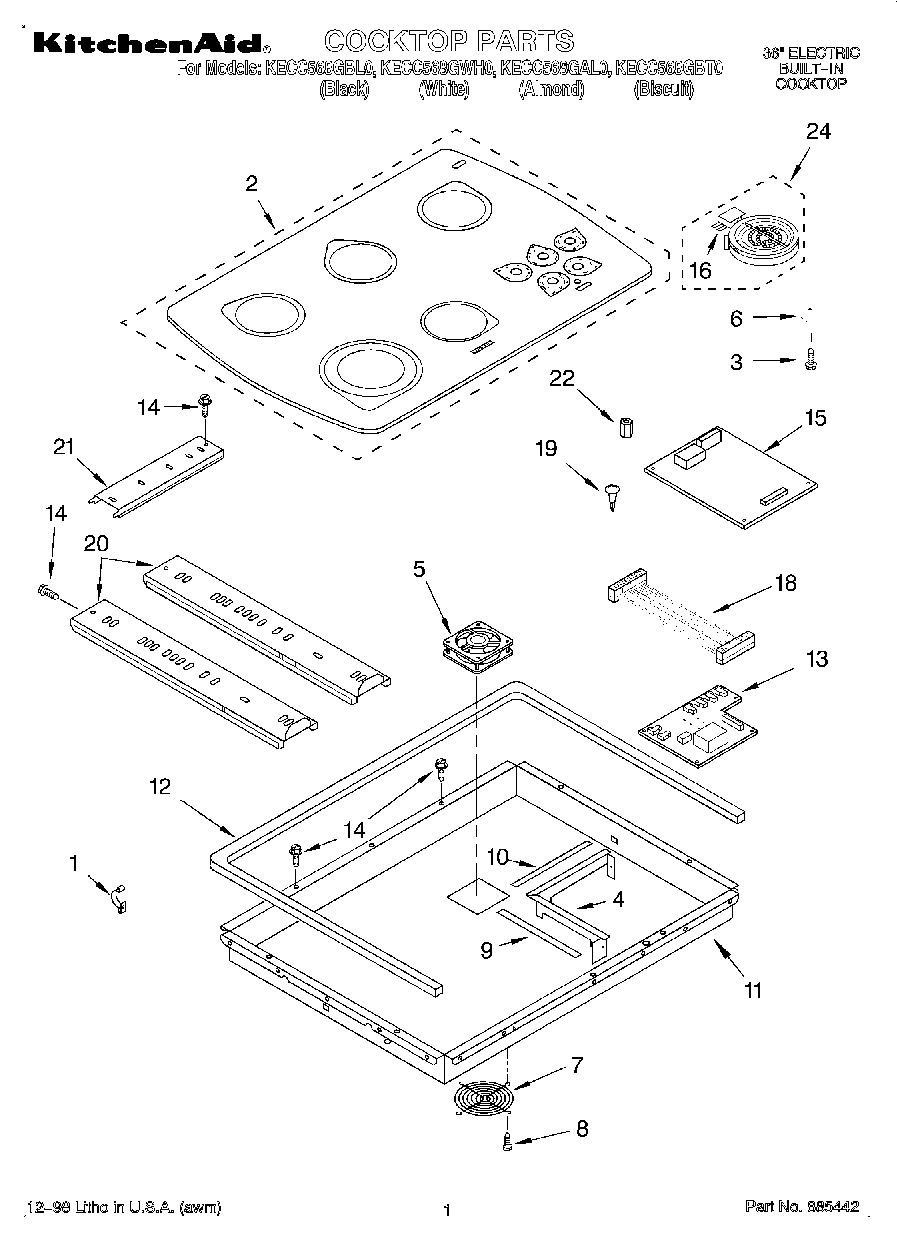

KECC568GWH0 01 – SECTION

Products

Position	Product
	Safer Cooking Tips
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Literature Parts (Use & Care Guide)
	WPL 3192437
	Literature Parts (Wiring Diagram)
	WPL 3191521
	WPL 3192475
	WPL 3179589
	Hardware Asm.
	WPL 3192476
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Literature Parts (Installation Instructions)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
1	8528351 Whirlpool Clip
2	Cooktop, Glass (White)
2	Cooktop, Glass (Almond & Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Shield, Heat Cntrl
5	Fan, Cooling
6	Spring, Locator
7	Guard, Fan
8	Screw
9	Seal, Heat Shield
10	Seal, Heat Shield
11	Box, Burner
12	Seal, Burner Box
13	Board, Power
14	WP3196557 Whirlpool Screw
15	Board, Control
16	Limiter, Temp. (LF)
16	Switch, Limiter (Use W/3191984 Element)
16	Limiter, Temp. (LF)
16	Switch, Limiter (Use W/3191981 Element)
18	Cable Ass`y, Flat
19	Support, Power Board
20	Rail, Element (2)
21	Rail, Element (1)
22	Screw, 6-32 x .175
22	Standoff, Power Board
24	Element, Surface (Includes No. 16) (Left Rear)
24	W10823692 Whirlpool Dual Radiant Element
24	Element, Surface (Includes No. 16) (1200W Right Front)
24	W10823693 Whirlpool Surface Element
