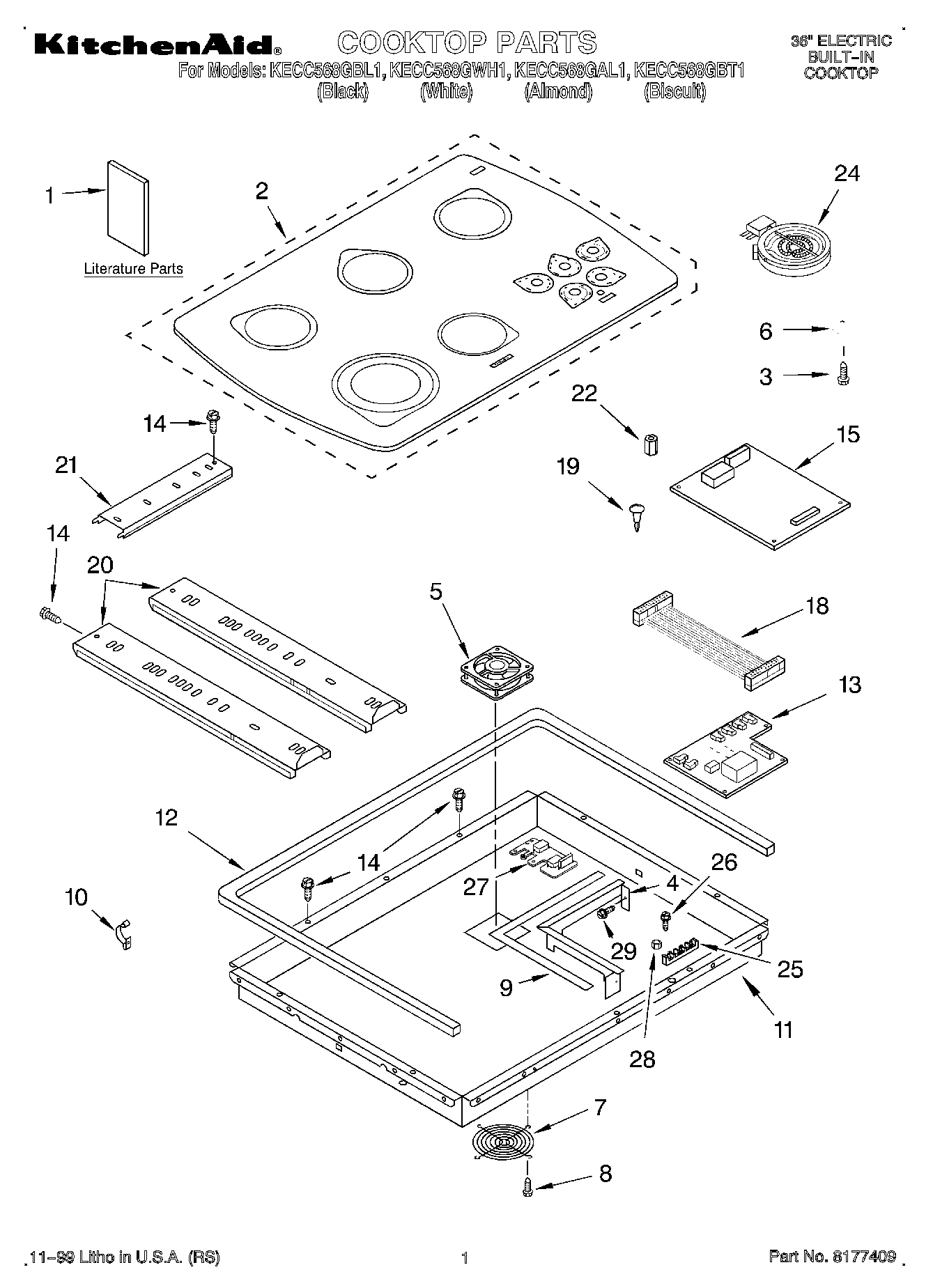

KECC568GWH1 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Honeycomb)
3WP486754 Whirlpool Compactor Screw
4Shield, Heat Cntrl
5Fan, Cooling
6Spring, Locator
7Guard, Fan
8Screw
9Seal, Heat Shield
108528351 Whirlpool Clip
11Box, Burner
12WPL 3192737
13Board, Power
14WP3196557 Whirlpool Screw
15Board, Control
18Cable Ass`y, Flat
19Support, Power Board
20Rail, Element (2)
21Rail, Element (1)
22Standoff, Power Board
22Screw, 6-32 x .175
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823698 Whirlpool Surface Element Right Rear
24W10823692 Whirlpool Dual Radiant Element
24W10823699 Whirlpool Right Front Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27WP112432 Whirlpool Nut Assembly
28Suppressor
2918 Ga. 80~c Rating (Red)
29Wire, 25` Roll (Black 14 Ga.)
29WP3400015 Whirlpool Screw
29Wire, 25` Roll (Red 14 Ga.)
291
29Hardware Asm.
29WPL 4455144
29WP3177991 Whirlpool Screw
29WPL 4455283
29Wire, 25“ Roll (White 14 GA.)
29W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29Wire (12 Ga. 150 c Black)
29Wire (14 Ga. 150 c Yellow)
29Wire (14 Ga. 150 c Orange)
29Wire (14 Ga. 150 c Green)
29Wire (14 Ga. 150 c Brown)
29Wire (14 Ga. 200 c Brown)
29242831 Whirlpool Oven Wire
29WPL 3192769
29WPL 3191521
