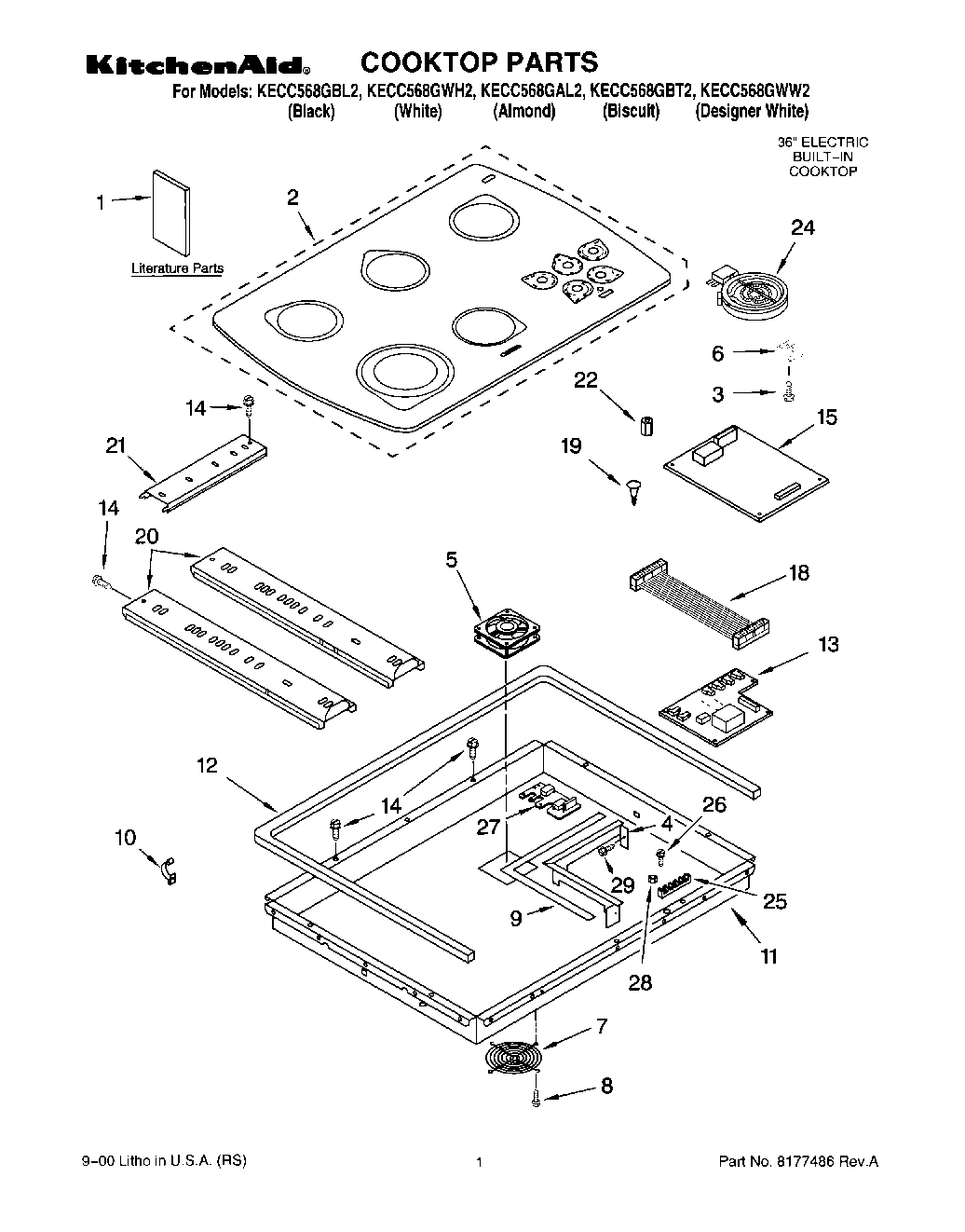

KECC568GWH2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Honeycomb)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Shield, Heat Cntrl
5	Fan, Cooling
6	Spring, Locator
7	Guard, Fan
8	Screw
9	Seal, Heat Shield
10	8528351 Whirlpool Clip
11	Box, Burner
12	WPL 3192737
13	Board, Power
14	WP3196557 Whirlpool Screw
15	Board, Control
18	Cable Ass`y, Flat
19	Support, Power Board
20	Rail, Element (2)
21	Rail, Element (1)
22	Standoff, Power Board
22	Screw, 6-32 x .175
24	W10823699 Whirlpool Right Front Surface Element
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	W10823698 Whirlpool Surface Element Right Rear
24	W10823692 Whirlpool Dual Radiant Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	WP112432 Whirlpool Nut Assembly
28	Suppressor
29	18 Ga. 80~c Rating (Red)
29	Wire, 25` Roll (Black 14 Ga.)
29	Wire, 25“ Roll (White 14 GA.)
29	WP3400015 Whirlpool Screw
29	1
29	Hardware Asm.
29	WPL 4455144
29	WP3177991 Whirlpool Screw
29	WPL 4455283
29	Wire, 25` Roll (Red 14 Ga.)
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29	W10491984 Whirlpool Switch Seal
29	Wire (12 Ga. 150 c Black)
29	Wire (14 Ga. 150 c Yellow)
29	Wire (14 Ga. 150 c Orange)
29	Wire (14 Ga. 150 c Green)
29	Wire (14 Ga. 150 c Brown)
29	242831 Whirlpool Oven Wire
29	Wire (14 Ga. 200 c Brown)
29	WPL 3192769
29	WPL 3191521
