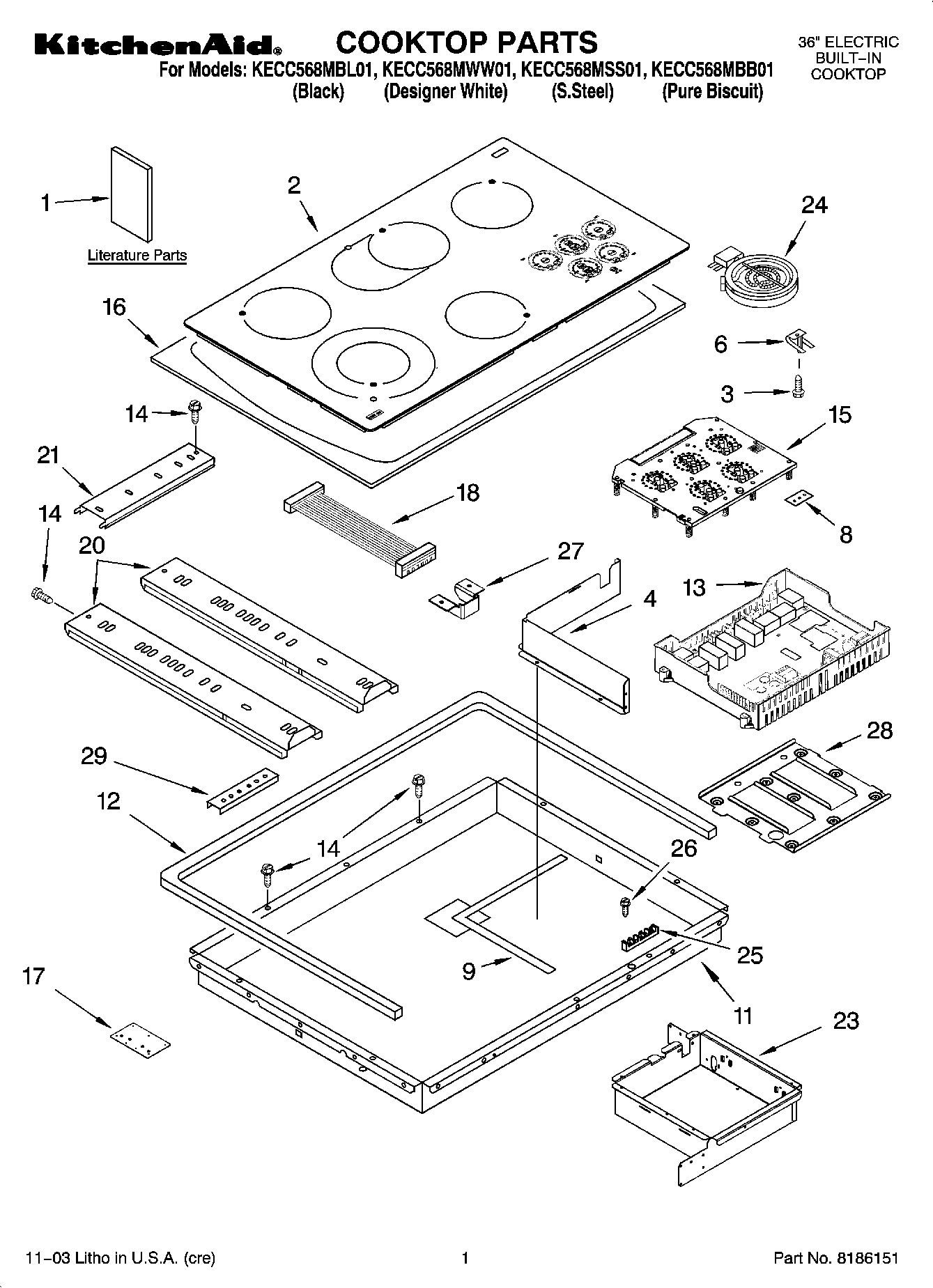

KECC568MBB01 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Bracket, Support (2)
	WPL 8285599
	WPL 8285471
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI84370A1
	WPL ARI84369A5
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WPL ARI84368A1
	WP3400015 Whirlpool Screw
	WPL ARI84367A2
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Safer Cooking Tips
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Pure Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	Spring, Locator
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
11	Box, Burner
12	WPL 3192737
13	Board, Power
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	Board, Control
16	Frame, Cooktop
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
24	WP8285230 Whirlpool Surface Element
24	W10823693 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
24	Element, Surface (1500W LR)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	W10491985 Whirlpool Screw
27	Cover, Harness
28	Support, Module
29	8186533 Whirlpool Hardware
29	WP3400093 Whirlpool Screw
