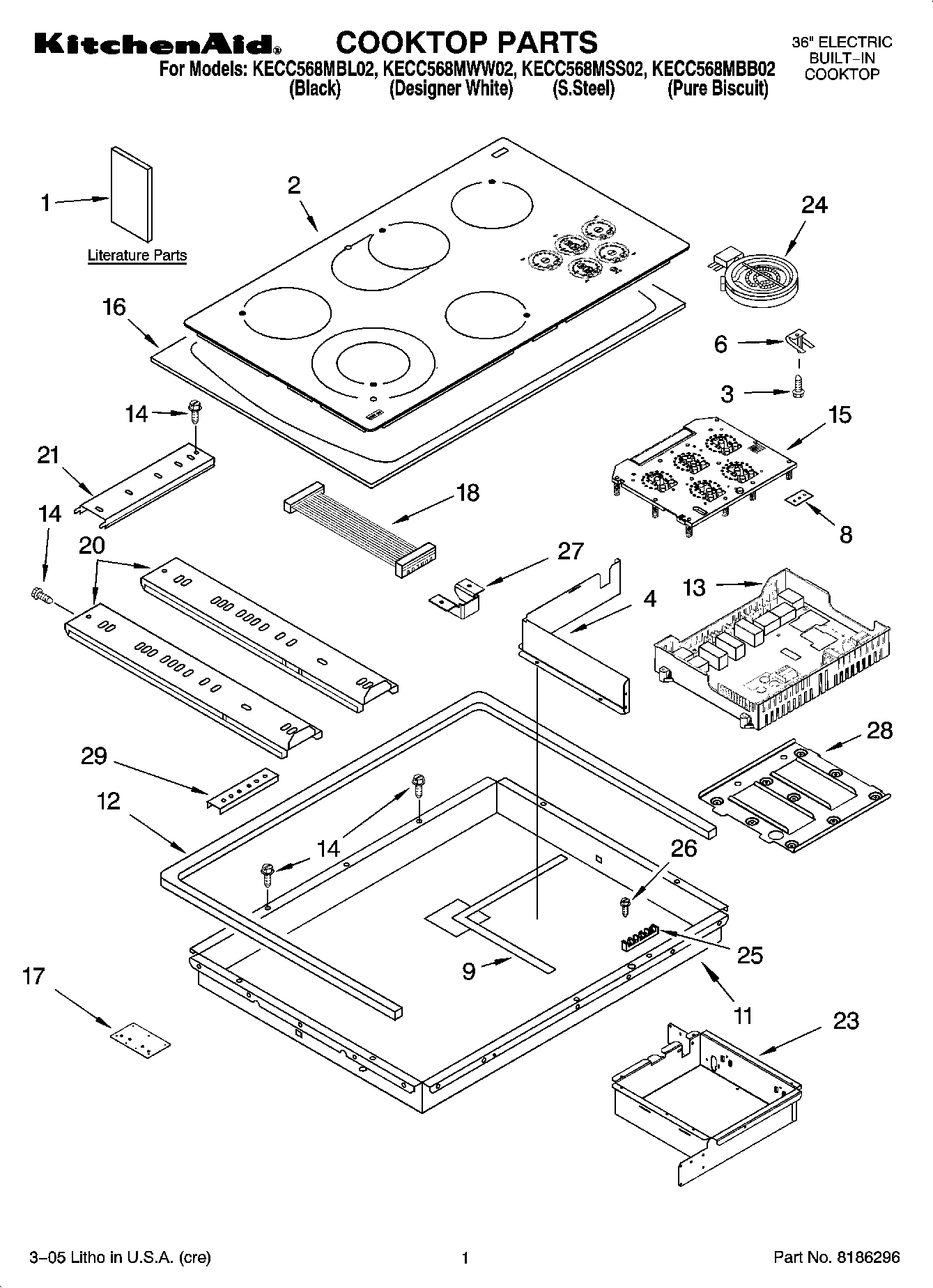

KECC568MSS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Bracket, Support (2)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI84398A6
	WPL 8285471
	WPL 8285599
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	WPL ARI84397A3
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI84396A3
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	WP3400015 Whirlpool Screw
	WPL ARI84395A5
1	Installation Instructions
1	Safe Cooking Tips
1	Tech Sheet
1	Use & Care Guide
1	Wiring Diagram
2	Cooktop, Glass (Pure Biscuit)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	9759094 Whirlpool Spring
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
11	Box, Burner
12	WPL 3192737
13	WP4449745 Whirlpool Screw
13	Board, Power
14	WP3196557 Whirlpool Screw
15	Board, Control
16	Frame, Cooktop
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
24	W10823693 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (1500W LR)
24	Element, Surface (1200/2400W LF)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	W10491985 Whirlpool Screw
27	Cover, Harness
28	Support, Module
29	WP3400093 Whirlpool Screw
29	8186533 Whirlpool Hardware
