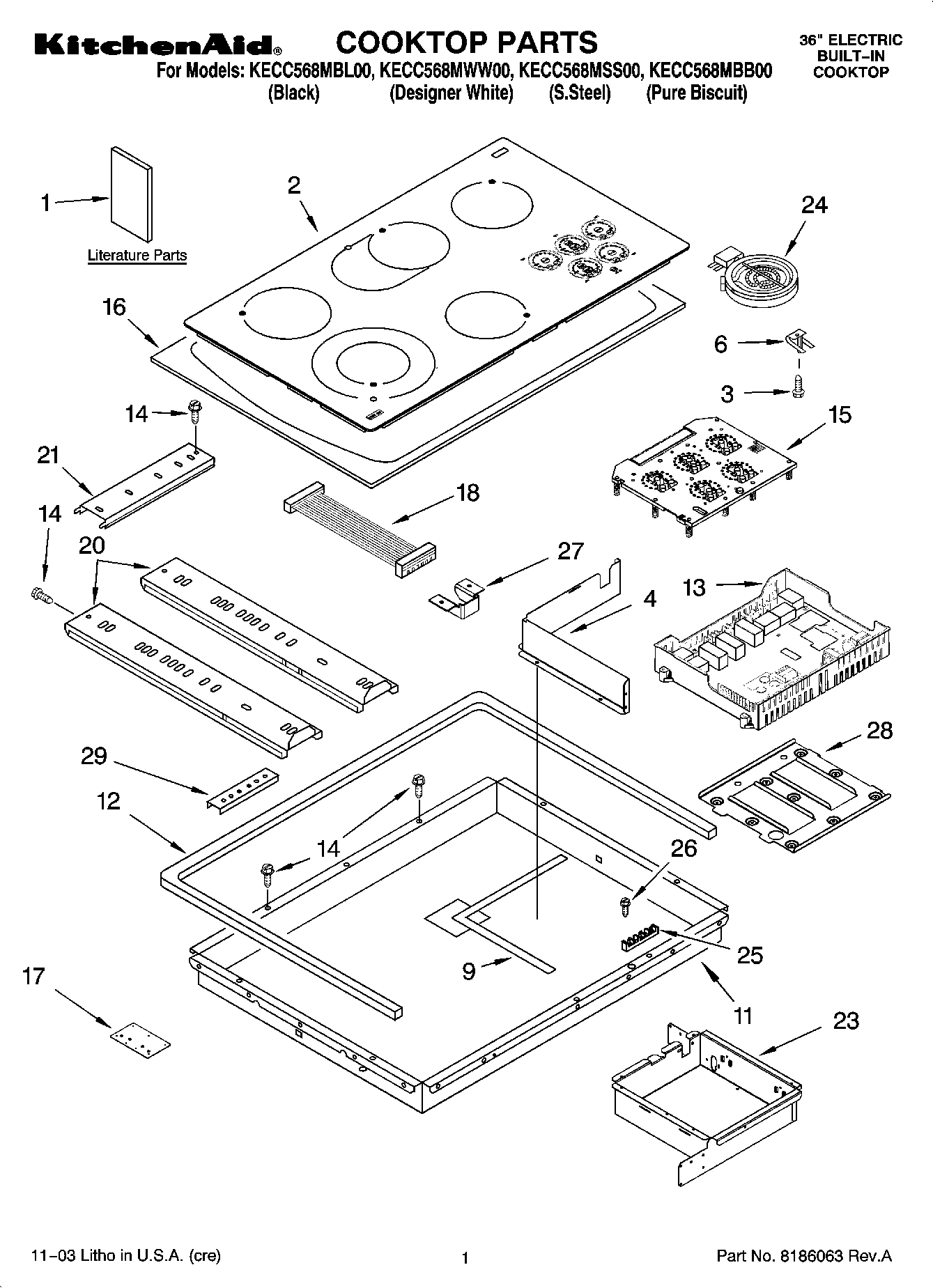

KECC568MWW00 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	WPL ARI84402A5
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 8285471
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI84401A8
	WPL ARI84400A8
	WPL ARI84399A1
	WP3400015 Whirlpool Screw
	Bracket, Support (2)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL 8285366
1	Literature Parts (Use & Care Guide)
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Pure Biscuit)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Designer White)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	Spring, Locator
9	Seal, Heat Shield
11	Box, Burner
12	WPL 3192737
13	Board, Power
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	Board, Control
16	Frame, Cooktop
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
24	W10823693 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (1500W LR)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	Cover, Harness
27	W10491985 Whirlpool Screw
28	Support, Module
29	WP3400093 Whirlpool Screw
29	8186533 Whirlpool Hardware
