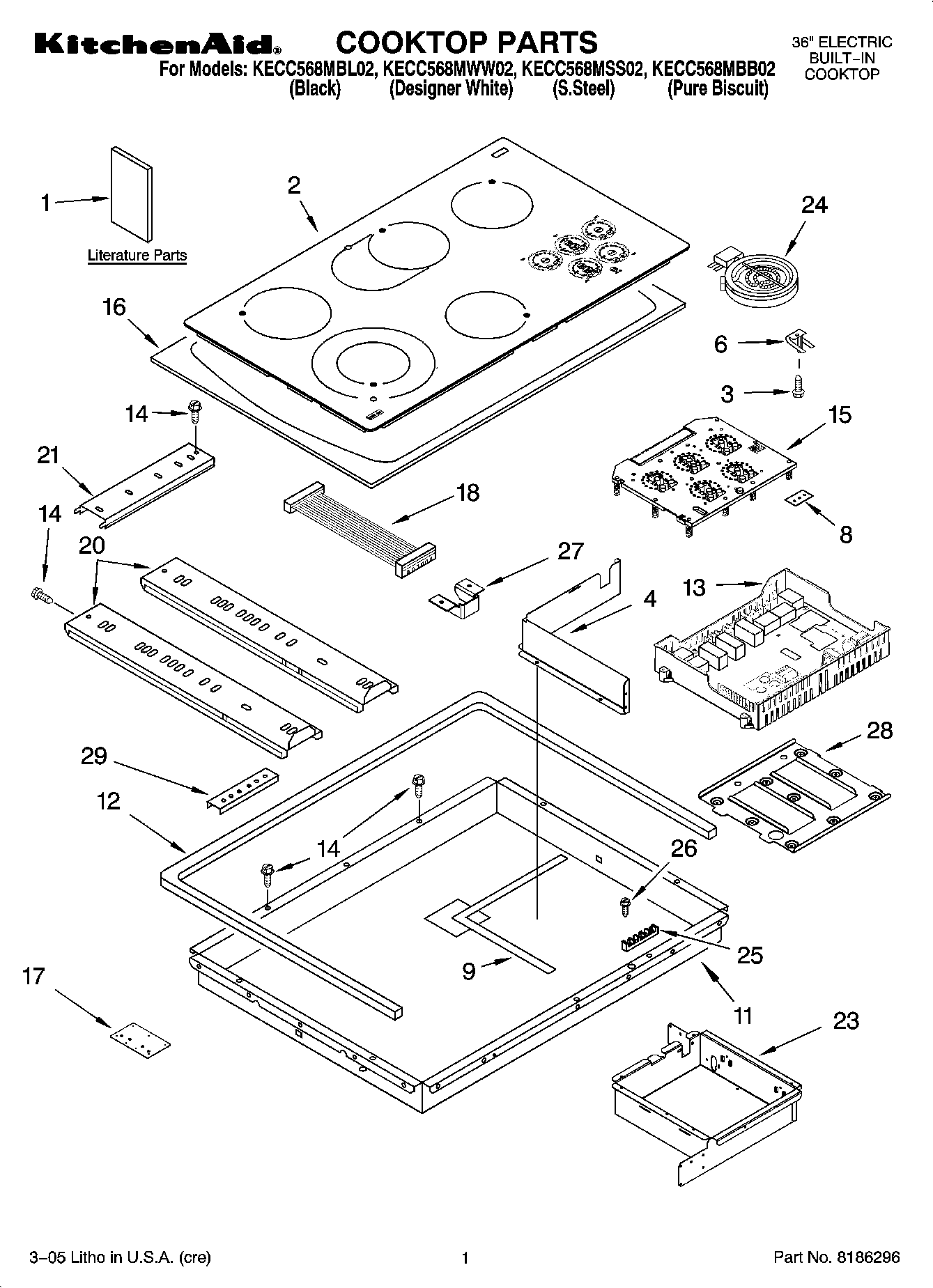

KECC568MWW02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Bracket, Support (2)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 8285471
	WPL 8285599
	242831 Whirlpool Oven Wire
	WP3400015 Whirlpool Screw
	WPL ARI84410A2
	WPL ARI84409A9
	WPL ARI84408A2
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI84407A1
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Installation Instructions
1	Safe Cooking Tips
1	Tech Sheet
1	Use & Care Guide
1	Wiring Diagram
2	Cooktop, Glass (Pure Biscuit)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	9759094 Whirlpool Spring
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
11	Box, Burner
12	WPL 3192737
13	WP4449745 Whirlpool Screw
13	Board, Power
14	WP3196557 Whirlpool Screw
15	Board, Control
16	Frame, Cooktop
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
24	W10823693 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (1500W LR)
24	Element, Surface (1200/2400W LF)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	W10491985 Whirlpool Screw
27	Cover, Harness
28	Support, Module
29	WP3400093 Whirlpool Screw
29	8186533 Whirlpool Hardware
