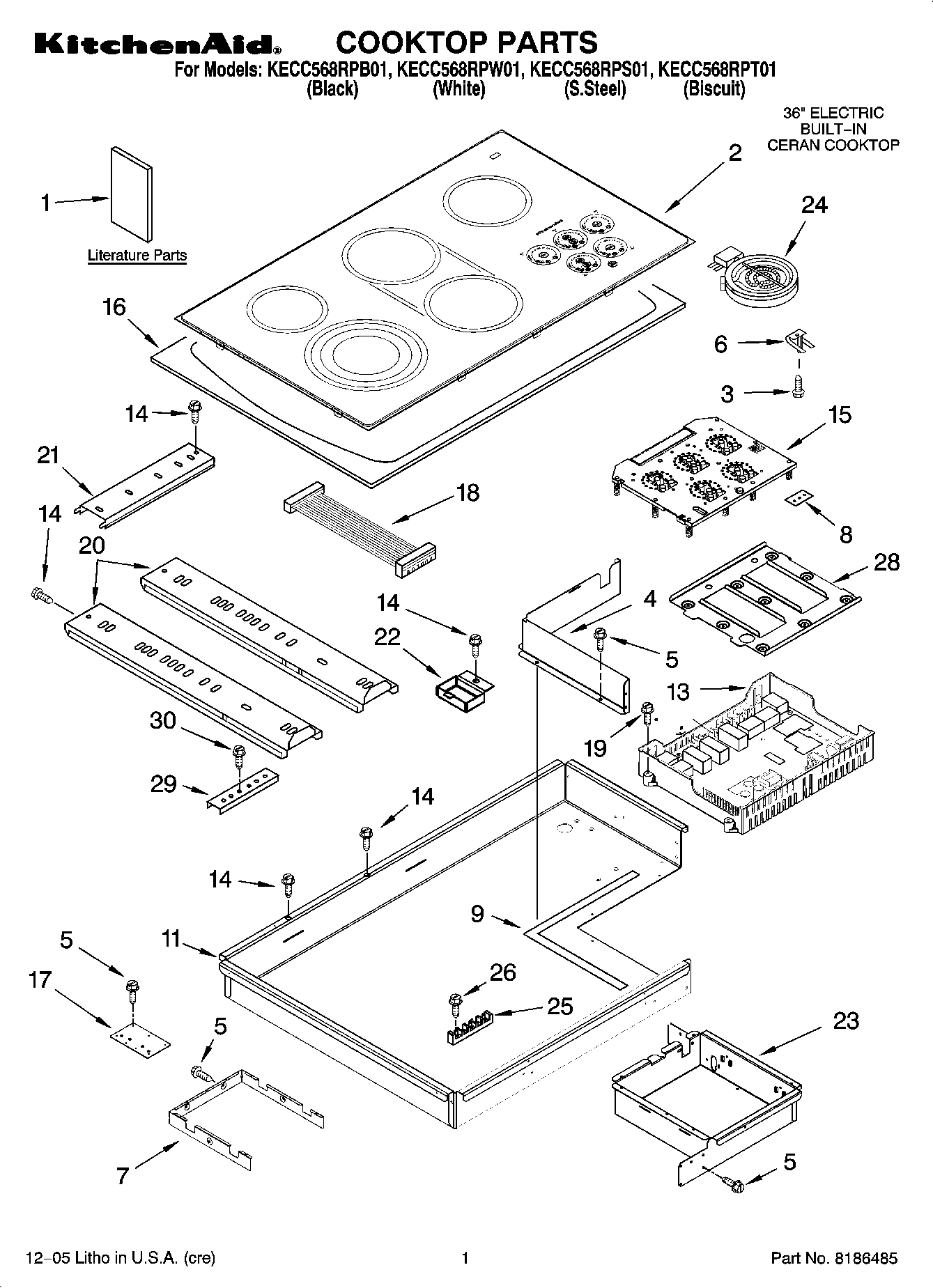

KECC568RPB01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI84417A5
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI84418A9
	8286381 Whirlpool Oven Wire Harness
	Bracket, Support (2)
	Seal, Foam (36“)
	Clip, Harnes
	WPL 8286444
	WPL ARI84415A7
	WPL ARI84416A5
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	BUSHING
	Wire (14 Ga. 150 c Brown)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25“ Roll (White 14 GA.)
	242831 Whirlpool Oven Wire
	WP3400015 Whirlpool Screw
1	Tech Sheet
1	Wiring Diagram
1	Use & Care Guide
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	INSTALLATION INSTRUCTIONS
2	Cooktop, Glass (White)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
11	Box, Burner
13	Board, Power
14	WP3196557 Whirlpool Screw
15	WP8285924 Whirlpool Electronic Control Board
16	Frame, Cooktop (Stainless Only)
17	Bracket, Bottom
18	Cable Ass`y
19	WP4449745 Whirlpool Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	8285593 Whirlpool Oven Wire Cover
23	Box, Touch Control
24	WP8285230 Whirlpool Surface Element
24	WP4453907 Whirlpool Surface Element
24	Element, Surface (2500/1800/900W LF)
24	Element, Surface (4300W Center)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
