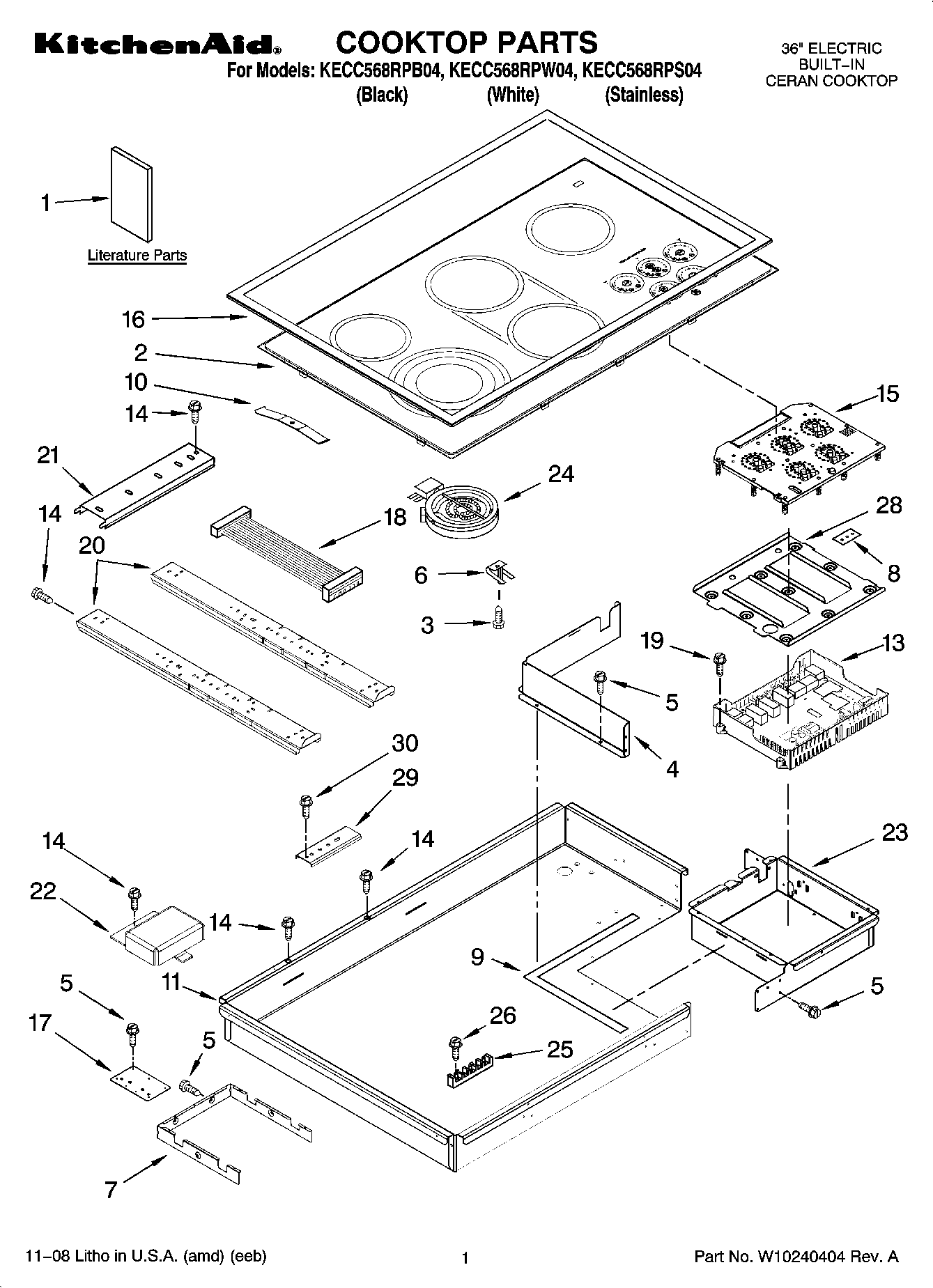

KECC568RPB04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP8286642 Whirlpool Tape
	Seal, Foam (36“)
	WIRING HARNESS PARTS
	8286381 Whirlpool Oven Wire Harness
	WPL W10105820
	Clip, Harnes
	Following Parts Not Illustrated
	ACCESSORY PARTS
	Miscellaneous
	WP3400015 Whirlpool Screw
1	INSTALLATION INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	Installation Instructions (Undercounter Oven)
1	Use & Care Guide
1	Tech Sheet
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	CLIP, SPRING (FOR BRIDGE)
11	Box, Burner
13	Board, Power
14	WP3196557 Whirlpool Screw
15	WP8285925 Whirlpool Electronic Control Board
15	WP8285924 Whirlpool Electronic Control Board
16	Frame, Cooktop (Stainless Only)
17	Bracket, Bottom
18	Cable Ass`y
19	WP4449745 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	8285593 Whirlpool Oven Wire Cover
23	Box, Touch Control
24	WP8285230 Whirlpool Surface Element
24	WP4453907 Whirlpool Surface Element
24	Element, Surface (2500/1800/900W LF)
24	Element, Surface (4300W Center)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
