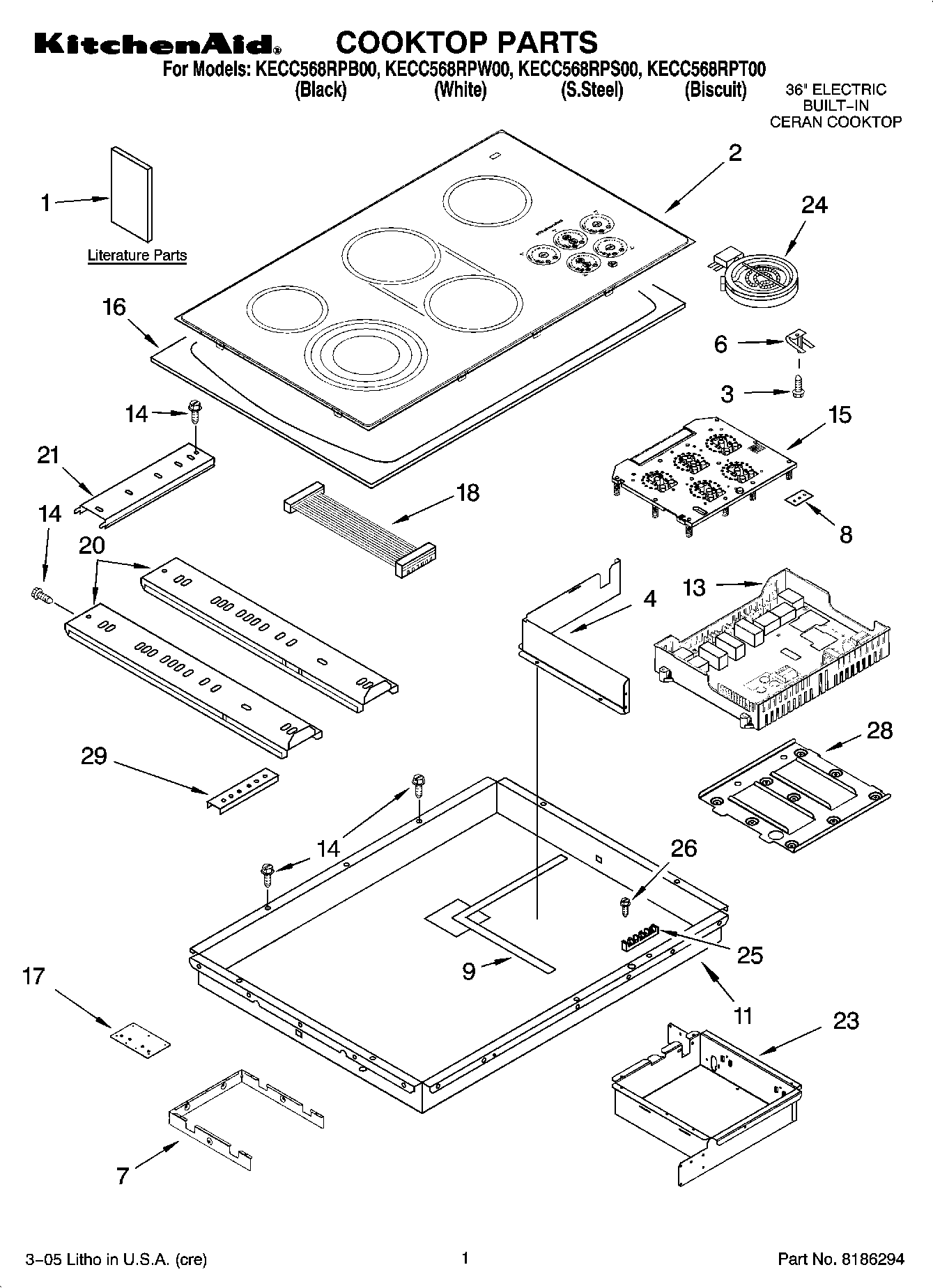

KECC568RPS00 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Bracket, Support (2)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8286381 Whirlpool Oven Wire Harness
	242831 Whirlpool Oven Wire
	WPL 8286379
	WPL ARI84436A7
	WPL ARI84435A7
	WP3400015 Whirlpool Screw
	WPL ARI84434A4
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI84437A2
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Wiring Diagram
1	INSTALLATION INSTRUCTIONS
1	Tech Sheet
1	Use & Care Guide
1	Safe Cooking Tips
2	Cooktop, Glass (White)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
11	Box, Burner
13	WP4449745 Whirlpool Screw
13	Board, Power
14	WP3196557 Whirlpool Screw
15	WP8285924 Whirlpool Electronic Control Board
16	Frame, Cooktop (Stainless Only)
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
23	W10491985 Whirlpool Screw
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (2500/1800/900W LF)
24	Element, Surface (4300W Center)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	WP3400093 Whirlpool Screw
29	8186533 Whirlpool Hardware
