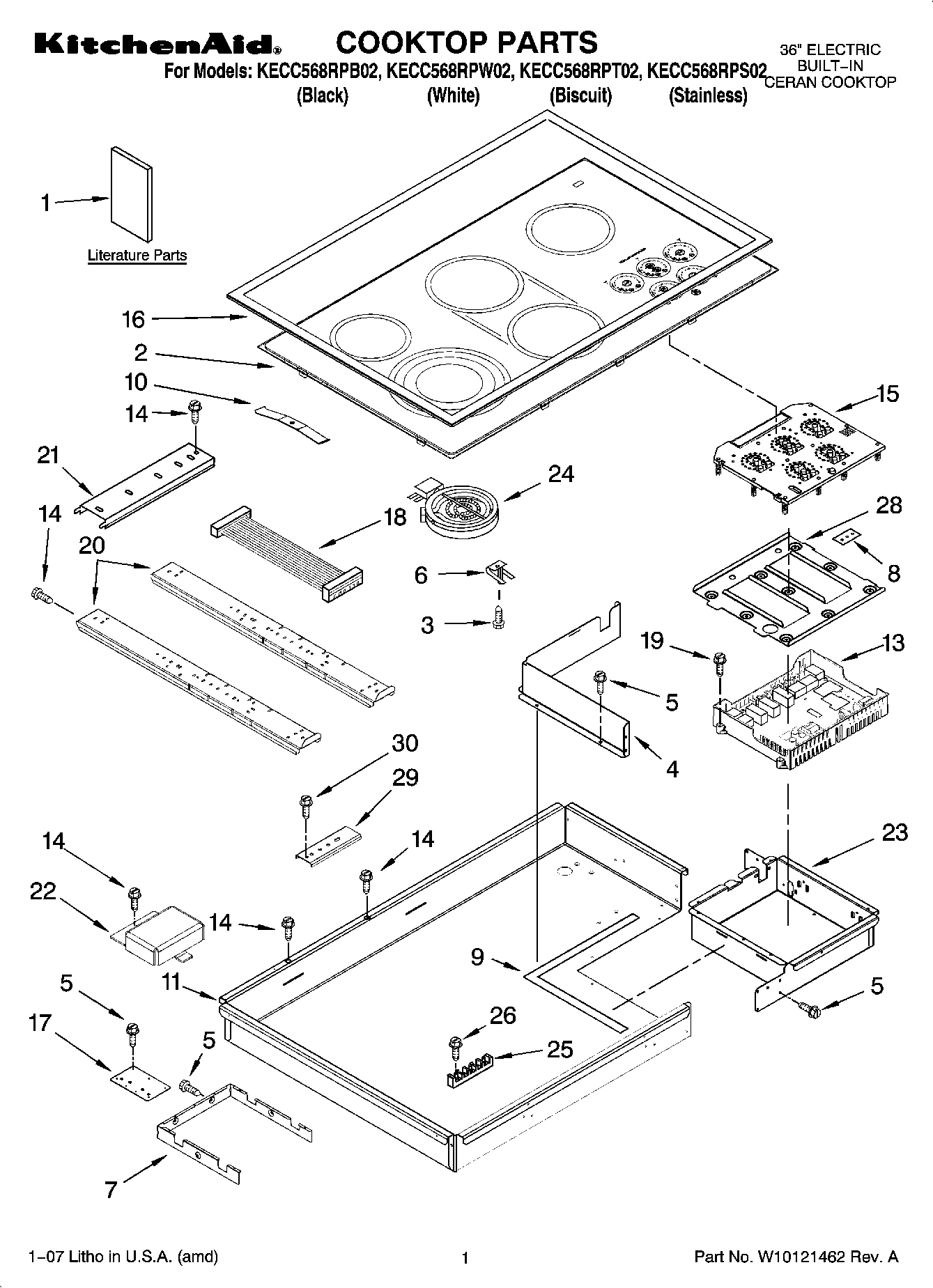

KECC568RPS02 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC568RPS02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
WPL ARI84443A9
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL W10105820
Clip, Harnes
Seal, Foam (36``)
Bracket, Support (2)
242831 Whirlpool Oven Wire
WPL ARI84444A5
WPL ARI84445A6
WPL ARI84447A3
WP3400015 Whirlpool Screw
WPL ARI84446A6
8286381 Whirlpool Oven Wire Harness
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25`` Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WP8286642 Whirlpool Tape
BUSHING
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Tech Sheet
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
1Safe Cooking Tips
1LITERATURE PARTS
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Wall, Inside
5W10491985 Whirlpool Screw
69759094 Whirlpool Spring
7Shield, Heat
8W10491984 Whirlpool Switch Seal
9Seal, Heat Shield
10CLIP, SPRING (FOR BRIDGE)
11Box, Burner
13Board, Power
14WP3196557 Whirlpool Screw
15WP8285924 Whirlpool Electronic Control Board
16Frame, Cooktop (Stainless Only)
17Bracket, Bottom
18Cable Ass`y
19WP4449745 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
228285593 Whirlpool Oven Wire Cover
23Box, Touch Control
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
24Element, Surface (2500/1800/900W LF)
24Element, Surface (4300W Center)
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
28Support, Module
298186533 Whirlpool Hardware
30WP3400093 Whirlpool Screw
