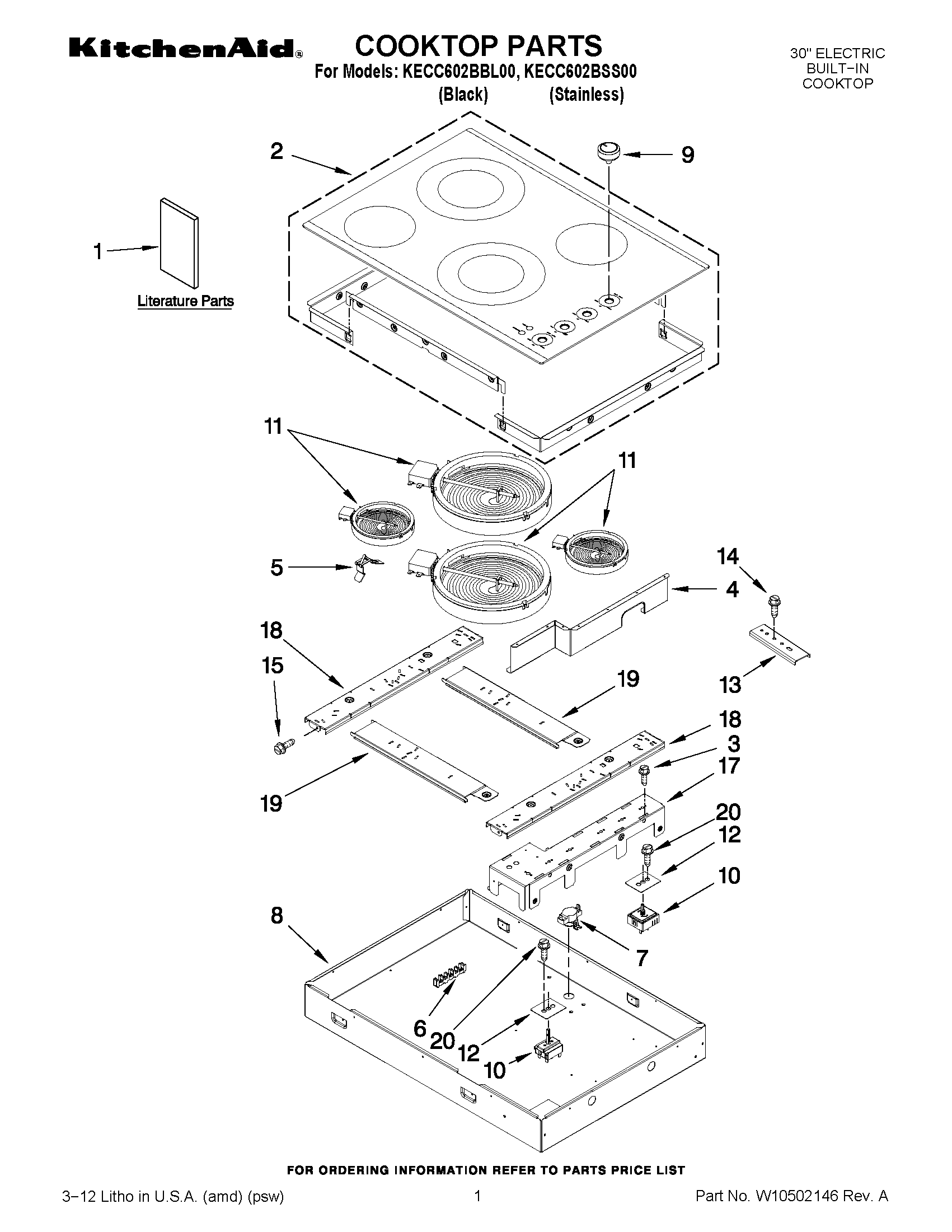

KECC602BBL00 01 – COOKTOP PARTS

KECC602BBL00 01 – COOKTOP PARTS

Written by

in

KECC602BBL00 01 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (WIRING DIAGRAM)
1USE & CARE GUIDE
2W10505177 Whirlpool Cooktop
2COOKTOP (BLACK)
3W10443110 Whirlpool Screw
4W10311796 Whirlpool Heat Shield
5WPW10225448 Whirlpool Spring Assembly
6WP8203546 Whirlpool Terminal Block
7W10464566 Whirlpool Thermostat
8BOX, BURNER
9WPW10353372 Whirlpool Knob
9W10364147 Whirlpool Knob
10SWITCH, INFINITE (RR)
10WPW10326246 Whirlpool Infinite Switch
10W10431995 Whirlpool Infinite Switch
11ELMNT-SURF
11ELMNT-SURF
123183956 Whirlpool Oven Seal Switch
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
17PLATE, SWITCH
18RAIL, VERTICAL
19W10311790 Whirlpool Sprt Element
20WPL 7101P30960
