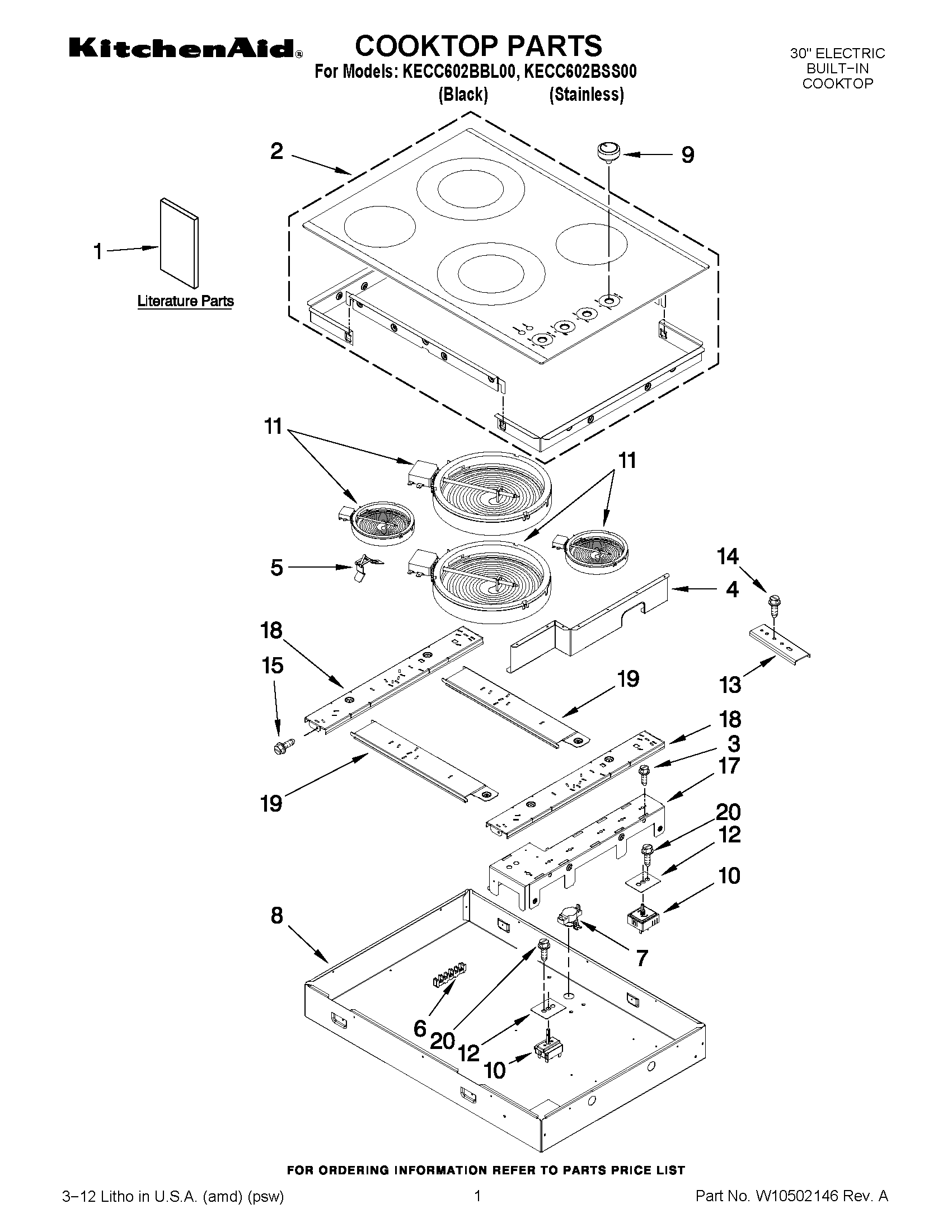

KECC602BSS00 01 – COOKTOP PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (WIRING DIAGRAM)
1	USE & CARE GUIDE
2	W10505177 Whirlpool Cooktop
2	COOKTOP (BLACK)
3	W10443110 Whirlpool Screw
4	W10311796 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	WP8203546 Whirlpool Terminal Block
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10353372 Whirlpool Knob
9	W10364147 Whirlpool Knob
10	SWITCH, INFINITE (RR)
10	WPW10326246 Whirlpool Infinite Switch
10	W10431995 Whirlpool Infinite Switch
11	ELMNT-SURF
11	ELMNT-SURF
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	W10311790 Whirlpool Sprt Element
20	WPL 7101P30960
