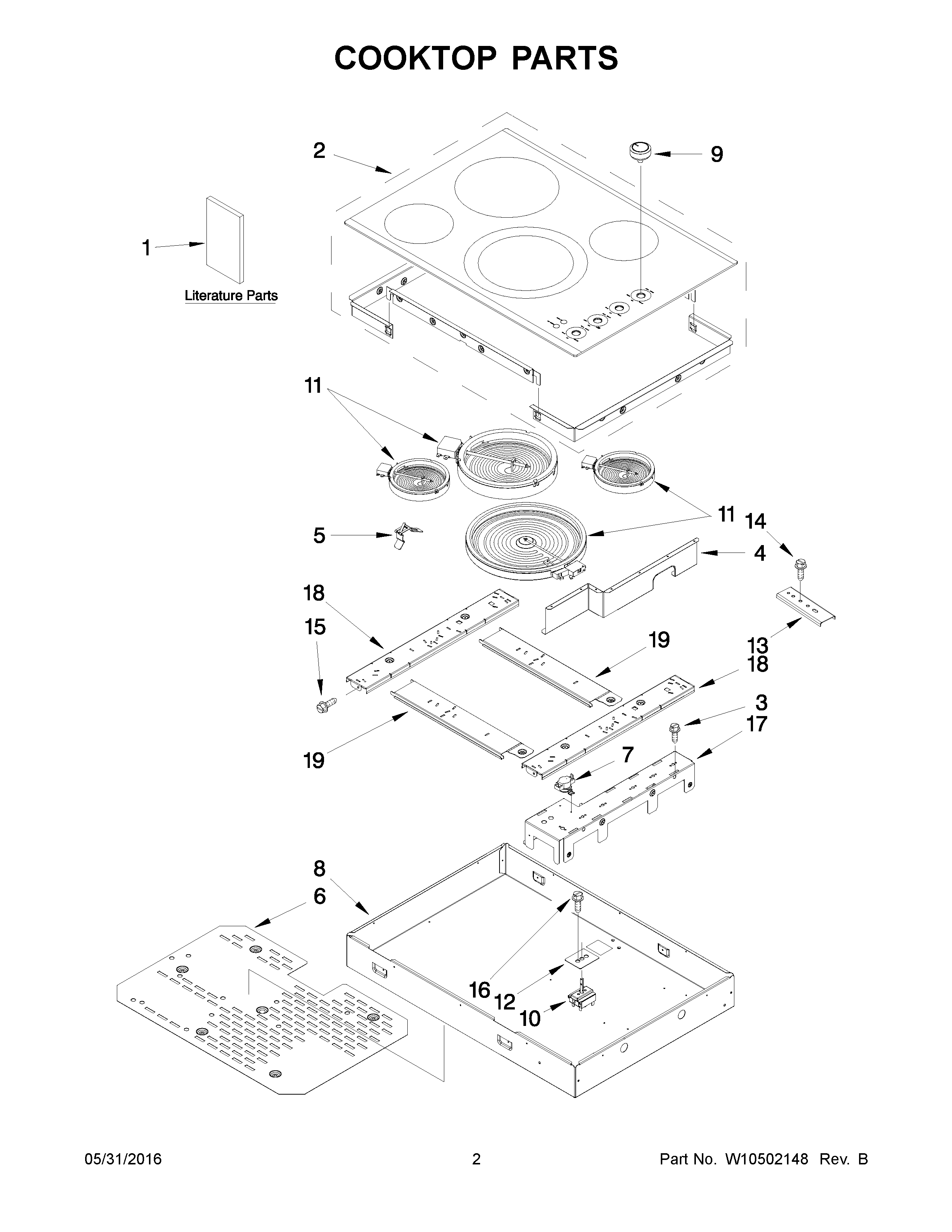

KECC604BBL00 02 – COOKTOP PARTSadmin2025-04-26T12:13:02+00:00KECC604BBL00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | GROMMET, WIRE |
| NI | W10491984 Whirlpool Switch Seal |
| NI | WP8286642 Whirlpool Tape |
| NI | W10316661 Whirlpool Heat Gasket Assembly |
| NI | WIRING HARNESS PARTS, JUMPER |
| NI | W11685004 Whirlpool Insulation |
| NI | W10742415 Whirlpool Wire Harness |
| NI | GROMMET |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | CLAMP, WIRE |
| 1E | DIAGRAM, WIRING |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1C | SAFER COOKING TIPS (ENGLISH |
| 1D | Safer Cooking Tips (French) |
| 1B | OWNERS MANUAL |
| 2 | W10505178 Whirlpool Cooktop Assembly |
| 2A | W10505179 Whirlpool Cooktop Assembly |
| 3 | W10443110 Whirlpool Screw |
| 4 | W10311796 Whirlpool Heat Shield |
| 5 | WPW10225448 Whirlpool Spring Assembly |
| 6 | BOTTOM, HEAT SHIELD |
| 7 | W10464566 Whirlpool Thermostat |
| 8 | BOX, BURNER |
| 9A | WPW10353372 Whirlpool Knob |
| 9 | W10364147 Whirlpool Knob |
| 10A | WPW10434447 Whirlpool Infinite Switch |
| 10B | WPW10326246 Whirlpool Infinite Switch |
| 10 | WPW10462778 Whirlpool Infinite Switch |
| 11A | WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element |
| 11C | ELMNT-SURF |
| 11 | WPW10342780 Whirlpool Surface Element |
| 11B | WPW10189281 Whirlpool Surface Element |
| 12 | 3183956 Whirlpool Oven Seal Switch |
| 13 | 8186533 Whirlpool Hardware |
| 14 | WP3400093 Whirlpool Screw |
| 15 | SCREW |
| 16 | WPL 7101P30960 |
| 17 | PLATE, SWITCH |
| 18 | RAIL, VERTICAL |
| 19 | W10311790 Whirlpool Sprt Element |
