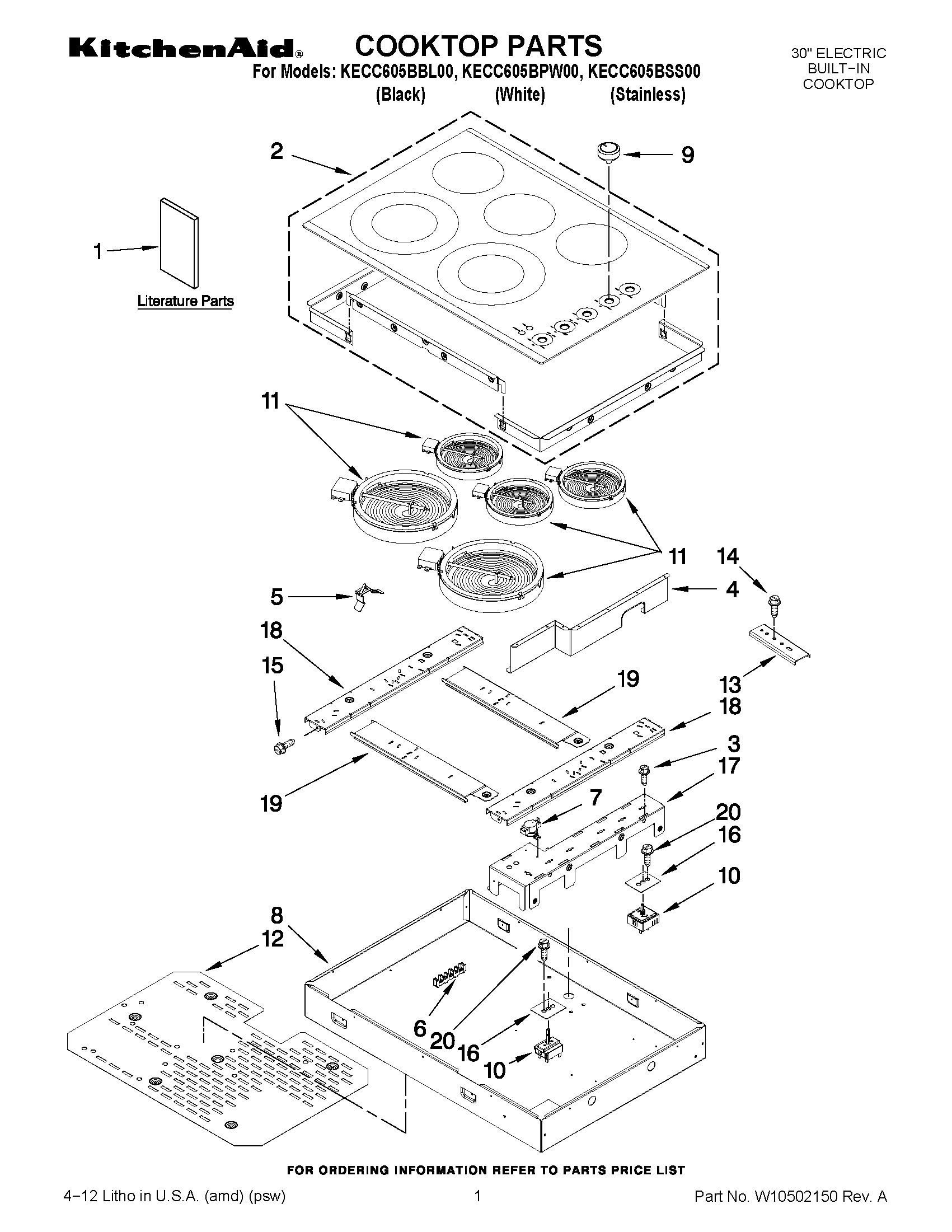

KECC605BBL00 01 – COOKTOP PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	USE & CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
2	W10505182 Whirlpool Cooktop
2	W10505180 Whirlpool Cooktop
2	W10505181 Whirlpool Cooktop
3	W10443110 Whirlpool Screw
4	W10311796 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	WP8203546 Whirlpool Terminal Block
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10353372 Whirlpool Knob
9	W10364147 Whirlpool Knob
10	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10	WPW10326246 Whirlpool Infinite Switch
10	SWITCH, INFINITE (RR)
10	WPW10434447 Whirlpool Infinite Switch
11	ELMNT-SURF
11	WPW10270604 Whirlpool Surface Element
11	ELMNT-SURF
12	BOTTOM, HEAT SHIELD
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	3183956 Whirlpool Oven Seal Switch
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	W10311790 Whirlpool Sprt Element
20	WPL 7101P30960
