KECC607BBL00 01 – COOKTOP PARTS

KECC607BBL00 01 – COOKTOP PARTS

Written by

in

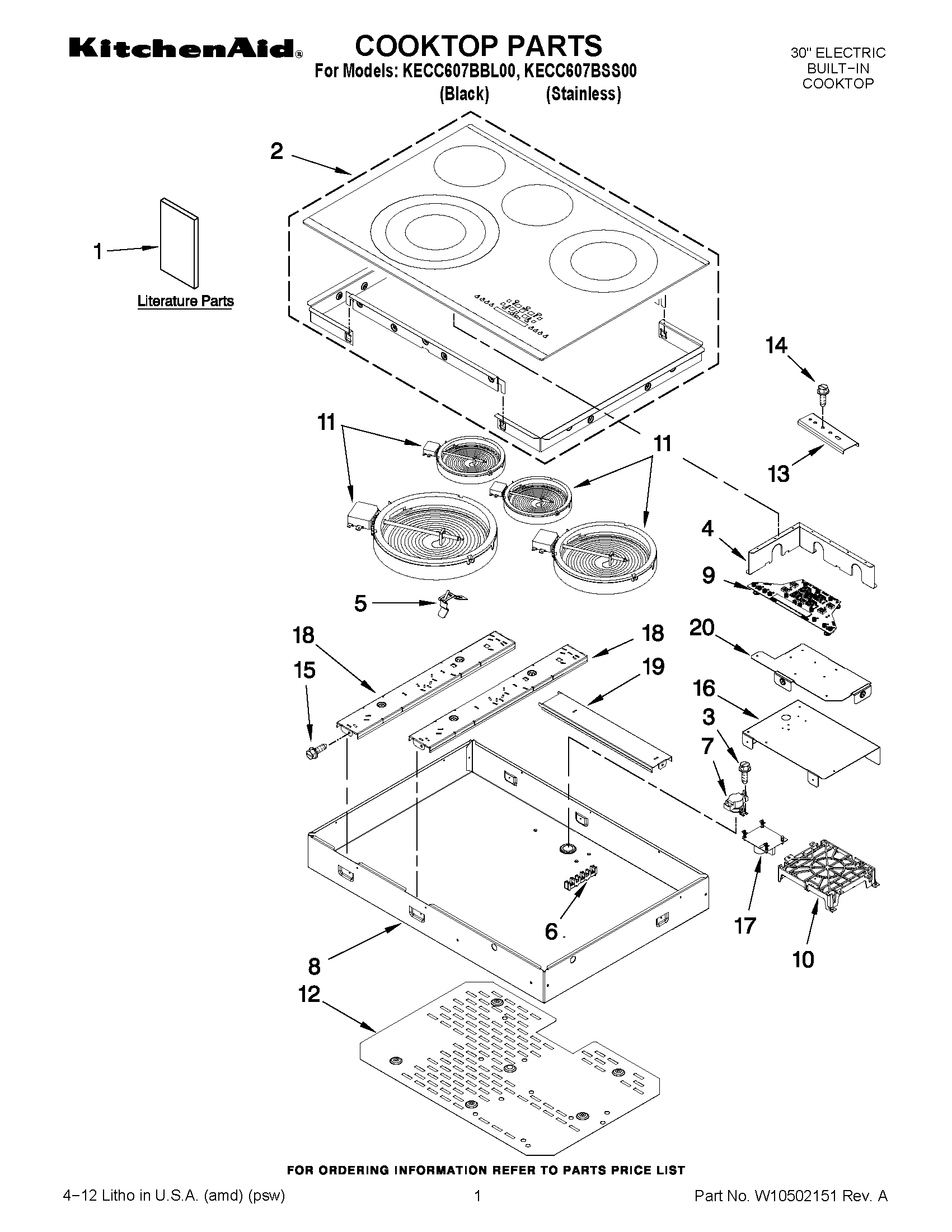

KECC607BBL00 01 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, UNDERCOUNTER INSTALL
1USE & CARE GUIDE
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (FRENCH)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2W10505192 Whirlpool Cooktop Assembly
2W10581108 Whirlpool Cooktop
3W10443110 Whirlpool Screw
4SHIELD, HEAT
5WPW10225448 Whirlpool Spring Assembly
6BLOCK, TERMINAL
7W10464566 Whirlpool Thermostat
8BOX, BURNER
9WPW10545370 Whirlpool Electronic Control Board + Core
10WPW10387653 Whirlpool Electronic Control Board + Core
11W11563195 Whirlpool Surface Element
11W11517959 Whirlpool Electric Range Radiant Surface Element
11ELMNT-SURF
12BOTTOM, HEAT SHIELD
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16BOX, APPLIANCE MANAGER
17WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
18RAIL, VERTICAL
19W10340178 Whirlpool Element Support
20SUPPORT, USER INTERFACE
