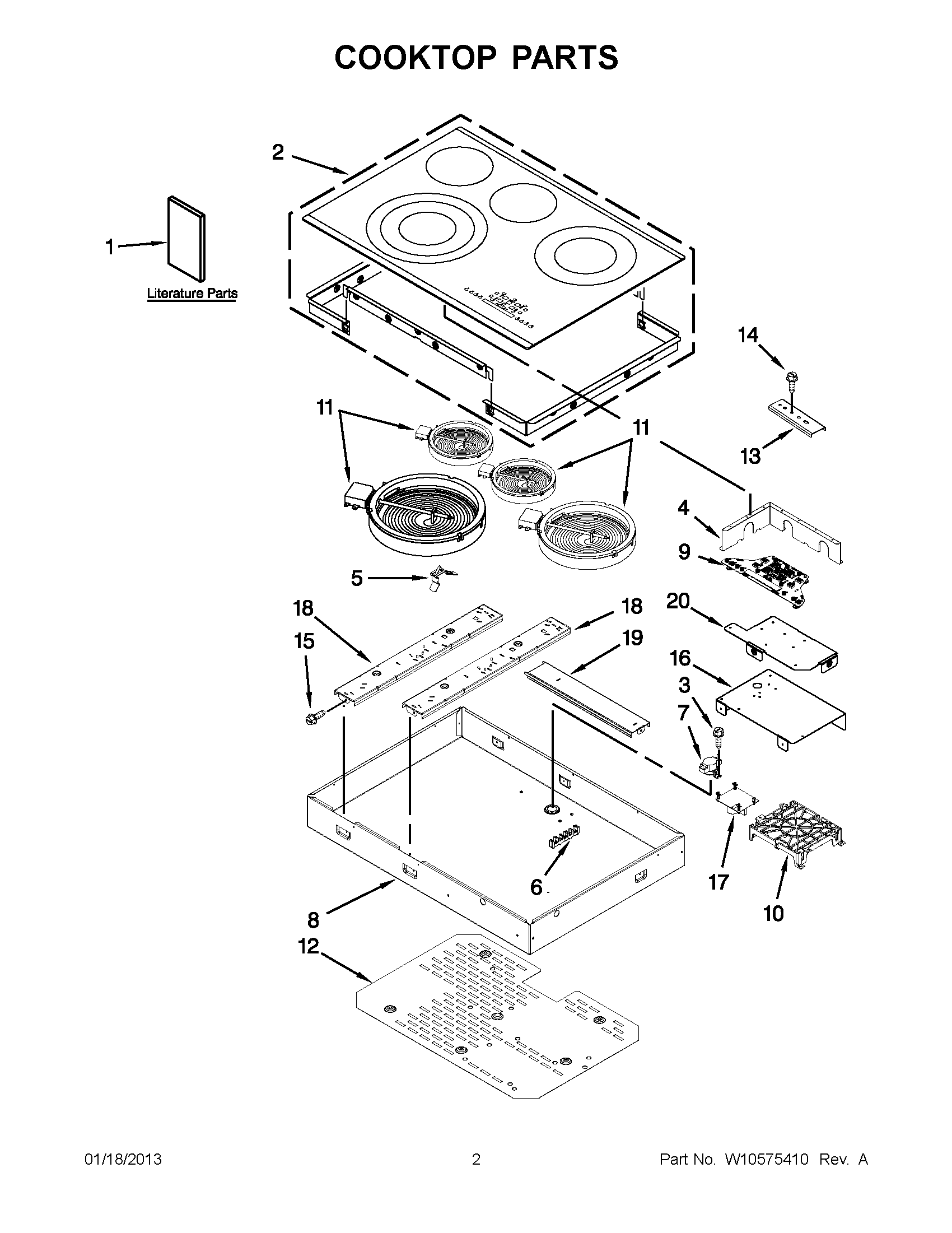

KECC607BBL01 01 – COOKTOP PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1	OWNERS MANUAL
1	TECH SHEET (FRENCH)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	INSTRUCTIONS, INSTALLATION
2	W10581108 Whirlpool Cooktop
2	W10566736 Whirlpool Cooktop
3	W10443110 Whirlpool Screw
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10545370 Whirlpool Electronic Control Board + Core
10	WPW10387653 Whirlpool Electronic Control Board + Core
11	ELMNT-SURF
11	W11517959 Whirlpool Electric Range Radiant Surface Element
11	W11563195 Whirlpool Surface Element
12	BOTTOM, HEAT SHIELD
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	BOX, APPLIANCE MANAGER
17	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
18	RAIL, VERTICAL
19	W10340178 Whirlpool Element Support
20	SUPPORT, USER INTERFACE
