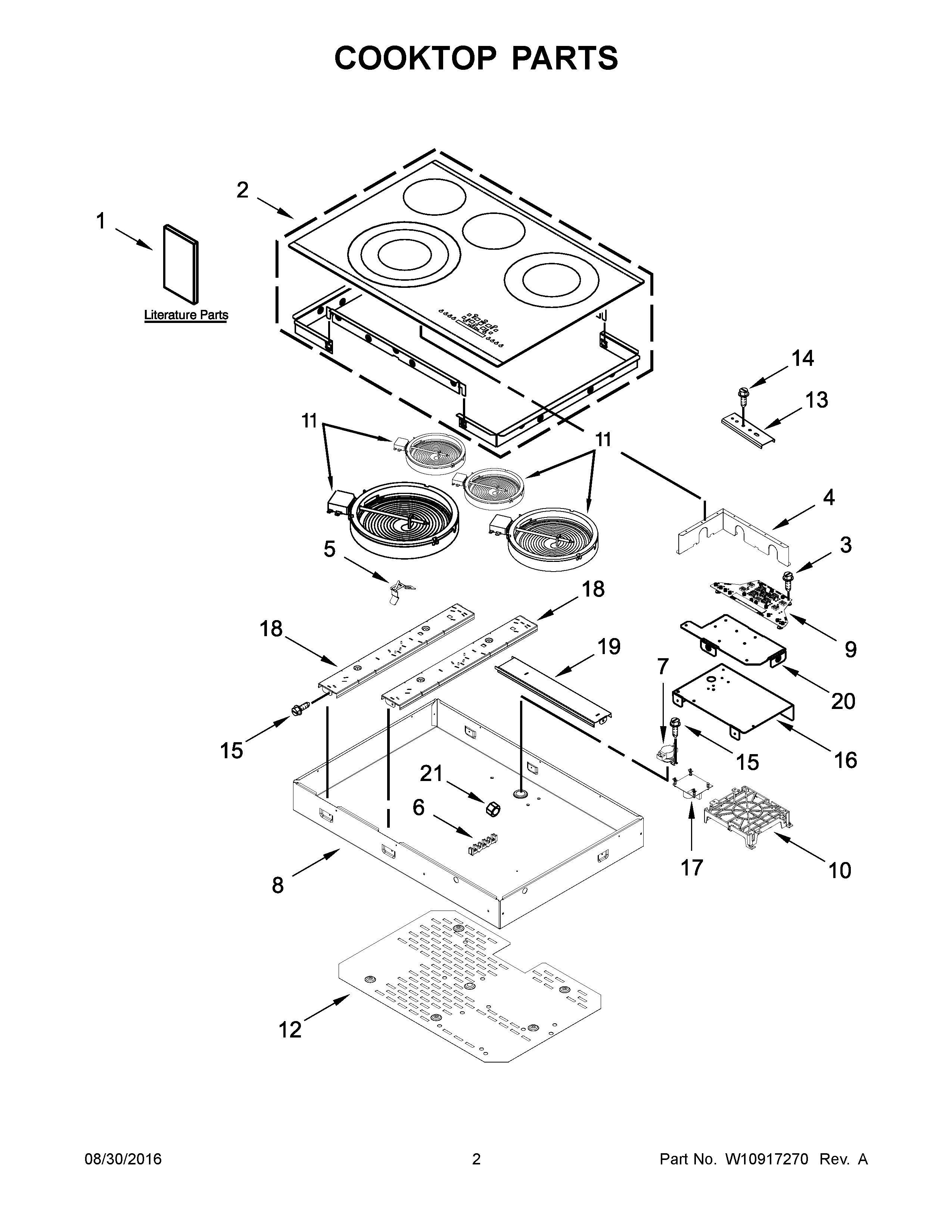

KECC607BSS02 02 – COOKTOP PARTS

Products

Position	Product
NI	W10291385 Whirlpool Conduit
NI	W10491984 Whirlpool Switch Seal
NI	BUSHING
NI	WP8286642 Whirlpool Tape
NI	GROMMET, WIRE
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10905145 Whirlpool Wire Harness
NI	W10340184 Whirlpool Heat Gasket
NI	Nut
1B	SHEET, TECH (ENGLISH)
1	OWNERS MANUAL
1C	SHEET, TECH (FRENCH)
1A	INSTRUCTIONS, INSTALLATION
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
2	W10581108 Whirlpool Cooktop
2A	W10566736 Whirlpool Cooktop
3	SCREW
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10545370 Whirlpool Electronic Control Board + Core
10	W10920242 Whirlpool Electronic Control Board
11B	W11517959 Whirlpool Electric Range Radiant Surface Element
11A	ELMNT-SURF
11	W11563195 Whirlpool Surface Element
12	BOTTOM, HEAT SHIELD
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	BOX, APPLIANCE MANAGER
17	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
18	RAIL, VERTICAL
19	W10340178 Whirlpool Element Support
20	SUPPORT, USER INTERFACE
21	WP3400029 Whirlpool Dishwasher Nut
