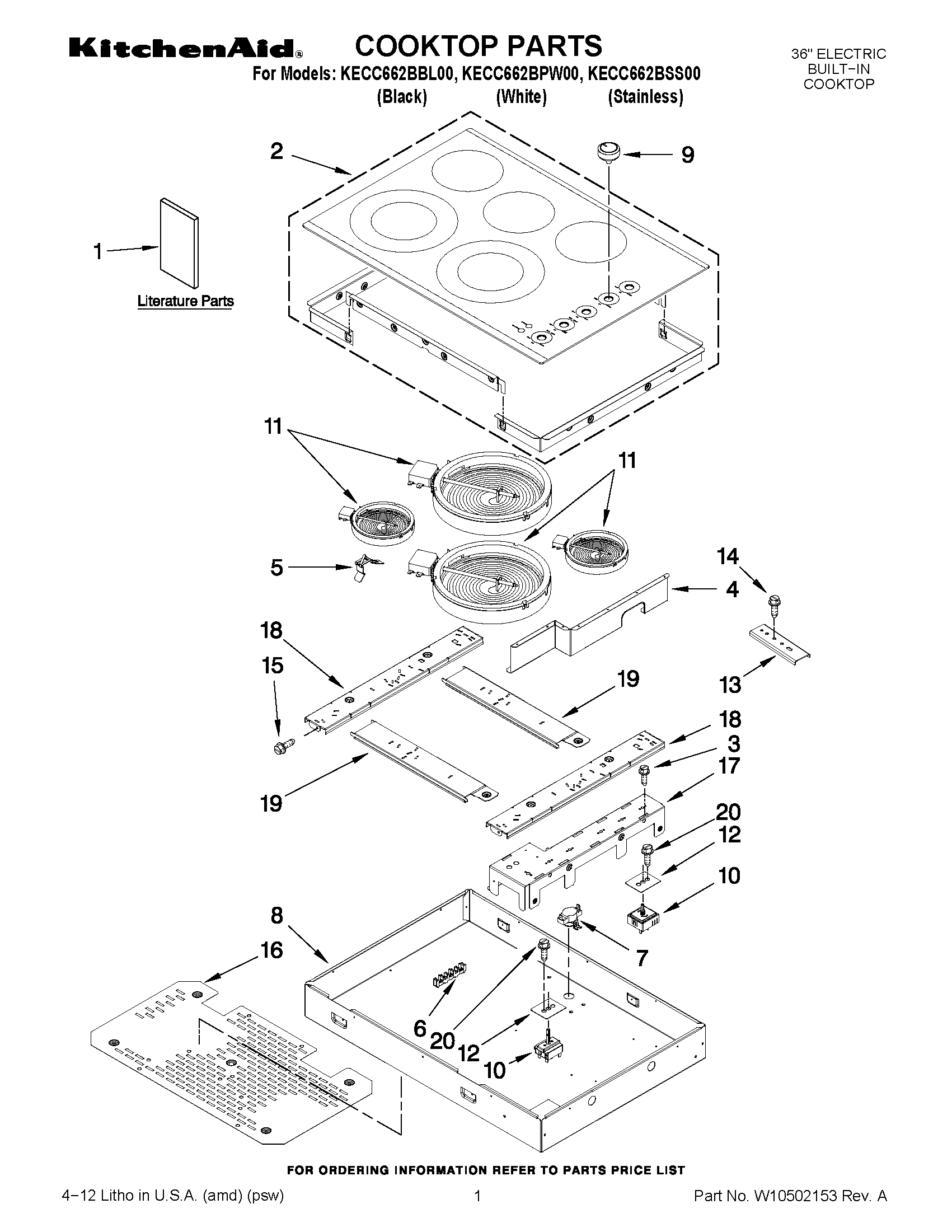

KECC662BBL00 01 – COOKTOP PARTS

KECC662BBL00 01 – COOKTOP PARTS

Written by

in

KECC662BBL00 01 – COOKTOP PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTRUCTIONS, UNDERCOUNTER INSTALL
1INSTRUCTIONS, INSTALLATION
1WIRING DIAGRAM
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2W10505184 Whirlpool Cooktop
2COOKTOP (BLACK)
2COOKTOP (STAINLESS)
3W10443110 Whirlpool Screw
4SHIELD, SWITCH
5WPW10225448 Whirlpool Spring Assembly
6BLOCK, TERMINAL
7W10465323 Whirlpool Thermostat
8BOX, BURNER
9WPW10353372 Whirlpool Knob
9W10364147 Whirlpool Knob
10W10861720 Whirlpool Infinite Switch
10WPW10326246 Whirlpool Infinite Switch
10W10431995 Whirlpool Infinite Switch
10SWITCH, INFINITE (RR)
11ELMNT-SURF
11ELMNT-SURF
11WP8273993 Whirlpool Surface Element
123183956 Whirlpool Oven Seal Switch
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16W10422069 Whirlpool Heat Shield
17PLATE, SWITCH
18RAIL, VERTICAL
19W10340199 Whirlpool Element Support
20WPL 7101P30960
