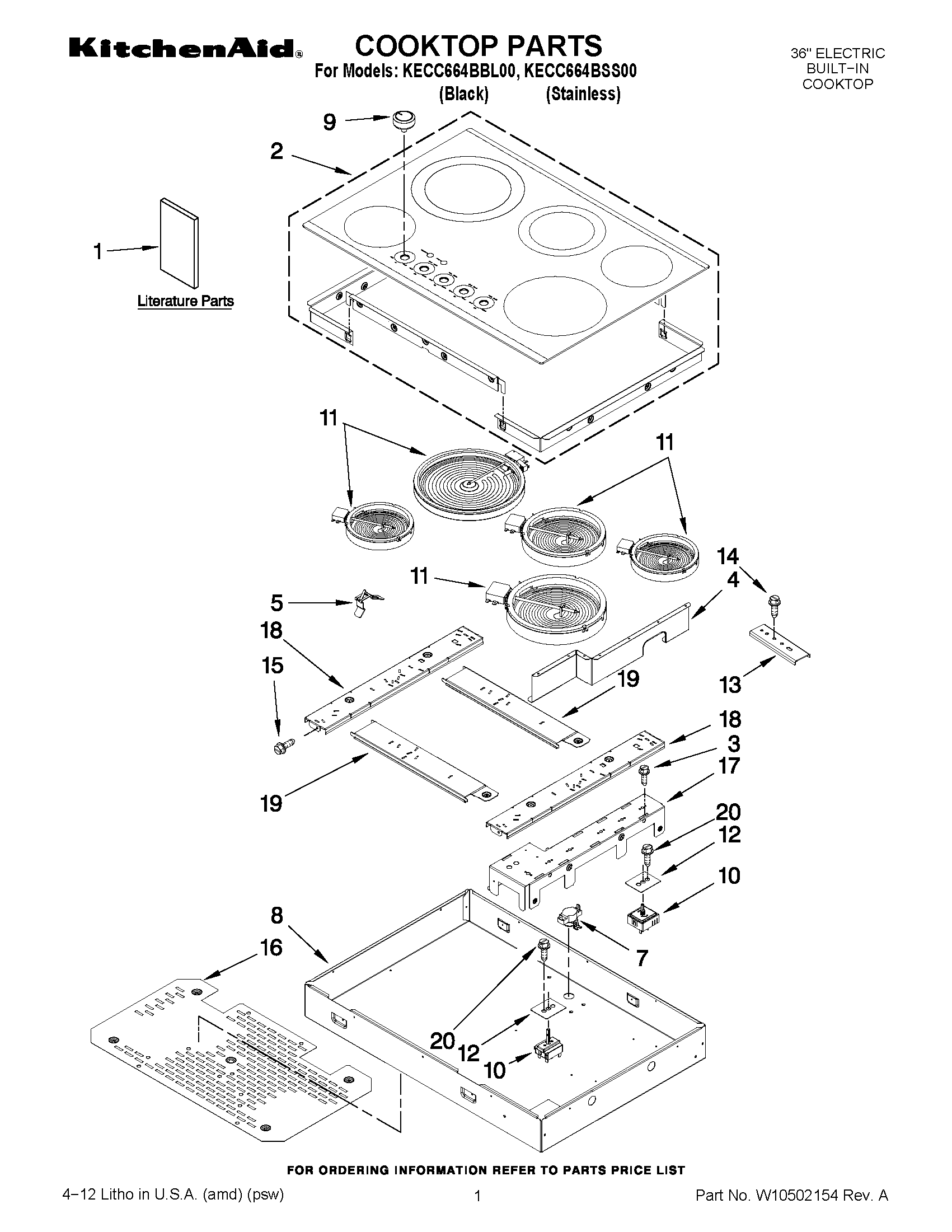

KECC664BBL00 01 – COOKTOP PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	WIRING DIAGRAM
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	INSTRUCTIONS, INSTALLATION
2	W10505188 Whirlpool Oven Cooktop Assembly
2	W10505189 Whirlpool Cooktop
3	W10443110 Whirlpool Screw
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
7	W10471482 Whirlpool Thermostat
8	BOX, BURNER
9	W10364147 Whirlpool Knob
9	WPW10353372 Whirlpool Knob
10	WPW10434447 Whirlpool Infinite Switch
10	WPW10462778 Whirlpool Infinite Switch
10	W11106342 Whirlpool Infinite Switch
11	WPW10245539 Whirlpool Surface Element
11	WPW10204680 Whirlpool Surface Element
11	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
11	WPW10342780 Whirlpool Surface Element
11	WPW10245533 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10422069 Whirlpool Heat Shield
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	W10340199 Whirlpool Element Support
20	WPL 7101P30960
