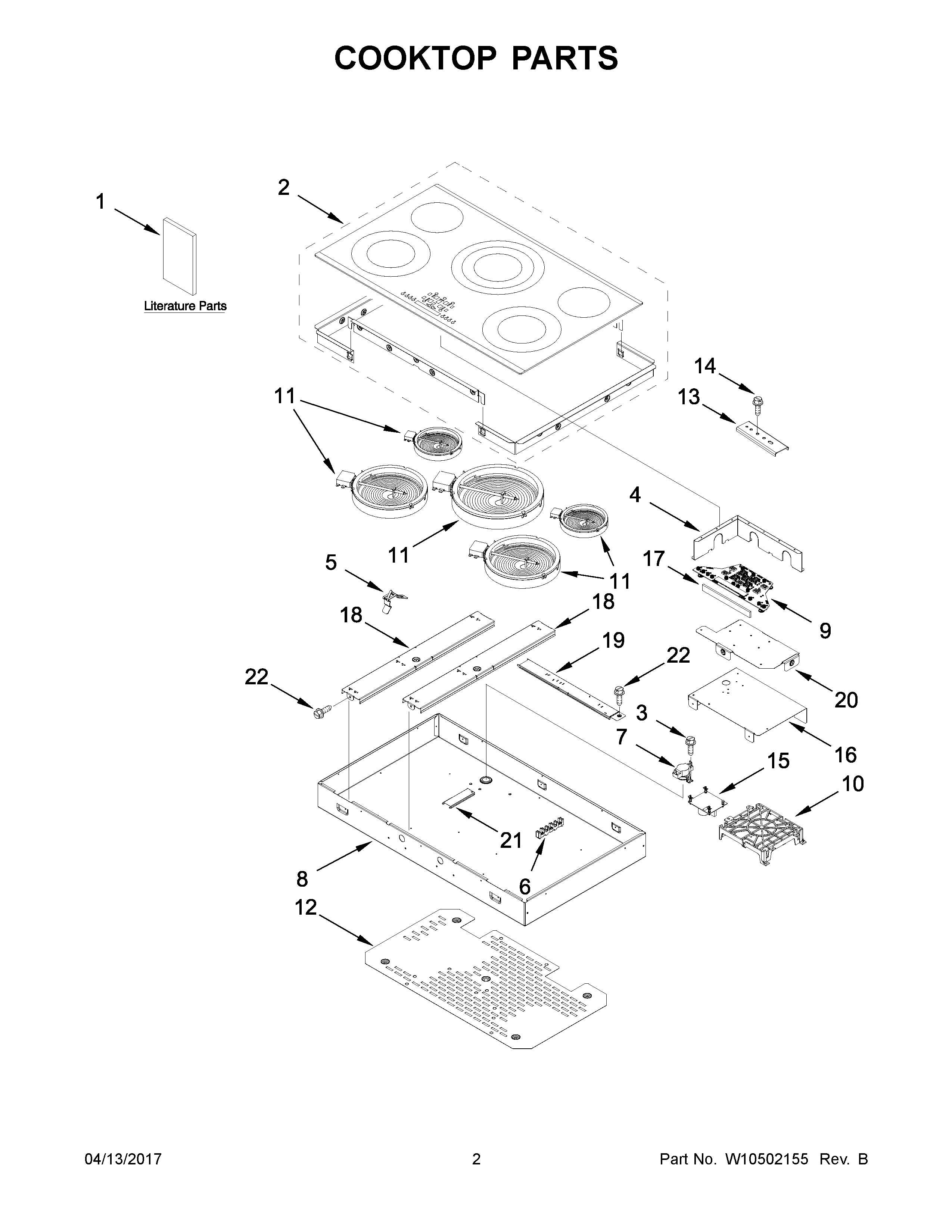

KECC667BBL00 02 – COOKTOP PARTS
Written by
in
KECC667BBL00 02 – COOKTOP PARTS
Products
Position
Product
NI
W10449083 Whirlpool Wire Harness
NI
GASKET
NI
W10291385 Whirlpool Conduit
NI
Nut
NI
CABINET (NOT A SERVICEABLE PART)
NI
GROMMET, WIRE
NI
W10491984 Whirlpool Switch Seal
1F
INSTRUCTIONS, UNDERCOUNTER INSTALL
1B
TECH SHEET (ENGLISH)
1A
USE & CARE GUIDE
1C
TECH SHEET (FRENCH)
1
INSTRUCTIONS, INSTALLATION
1E
Safer Cooking Tips (French)
1D
SAFER COOKING TIPS (ENGLISH
2
W10524409 Whirlpool Cooktop
2A
W10566716 Whirlpool Cooktop
3
W10443110 Whirlpool Screw
4
SHIELD, HEAT
5
WPW10225448 Whirlpool Spring Assembly
6
BLOCK, TERMINAL
7
W10464566 Whirlpool Thermostat
8
BOX, BURNER
9
WPW10545370 Whirlpool Electronic Control Board + Core
10
WPW10387653 Whirlpool Electronic Control Board + Core
11B
W11563195 Whirlpool Surface Element
11
ELMNT-SURF
11A
ELMNT-SURF
12
W10422069 Whirlpool Heat Shield
13
8186533 Whirlpool Hardware
14
WP3400093 Whirlpool Screw
15
WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
16
BOX, APPLIANCE MANAGER
17
W10464574 Whirlpool Insulation
18
W10340200 Whirlpool Element Support
19
W10340199 Whirlpool Element Support
20
W10340228 Whirlpool Mounting Bracket
21
RAIL, VERTICAL SHORT
22
SCREW
←
