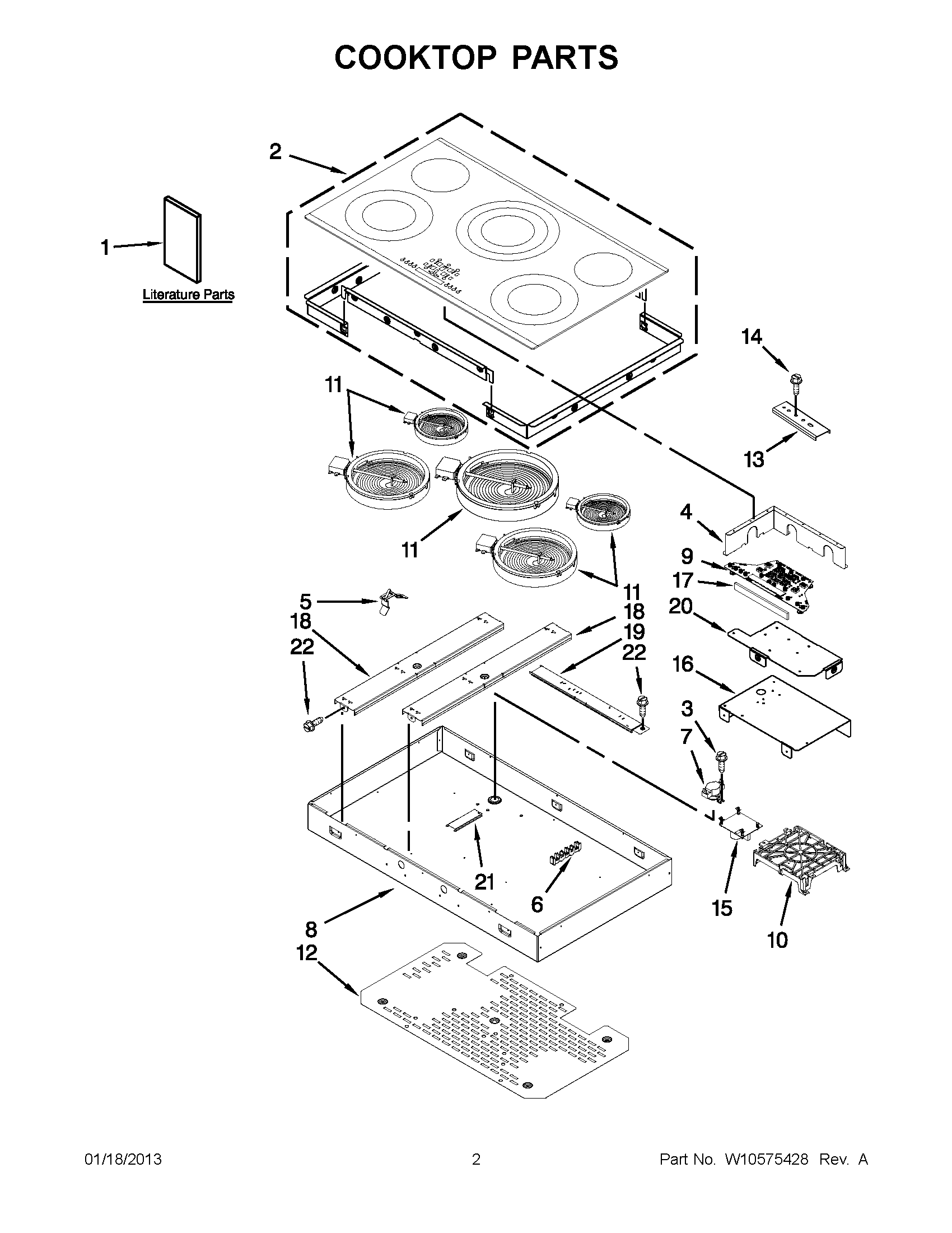

KECC667BBL01 01 – COOKTOP PARTS

Products

Position	Product
1	OWNERS MANUAL
1	INSTRUCTIONS, INSTALLATION
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	TECH SHEET (ENGLISH)
1	TECH SHEET (FRENCH)
2	W10566716 Whirlpool Cooktop
2	W10524409 Whirlpool Cooktop
3	W10443110 Whirlpool Screw
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10545371-includeCORE Whirlpool WPW10545371 Refrigerator Electronic Control Board + Core
10	WPW10387653 Whirlpool Electronic Control Board + Core
11	W11563195 Whirlpool Surface Element
11	ELMNT-SURF
11	ELMNT-SURF
12	W10422069 Whirlpool Heat Shield
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
16	BOX, APPLIANCE MANAGER
17	W10464574 Whirlpool Insulation
18	W10340200 Whirlpool Element Support
19	W10340199 Whirlpool Element Support
20	W10340228 Whirlpool Mounting Bracket
21	RAIL, VERTICAL SHORT
22	SCREW
