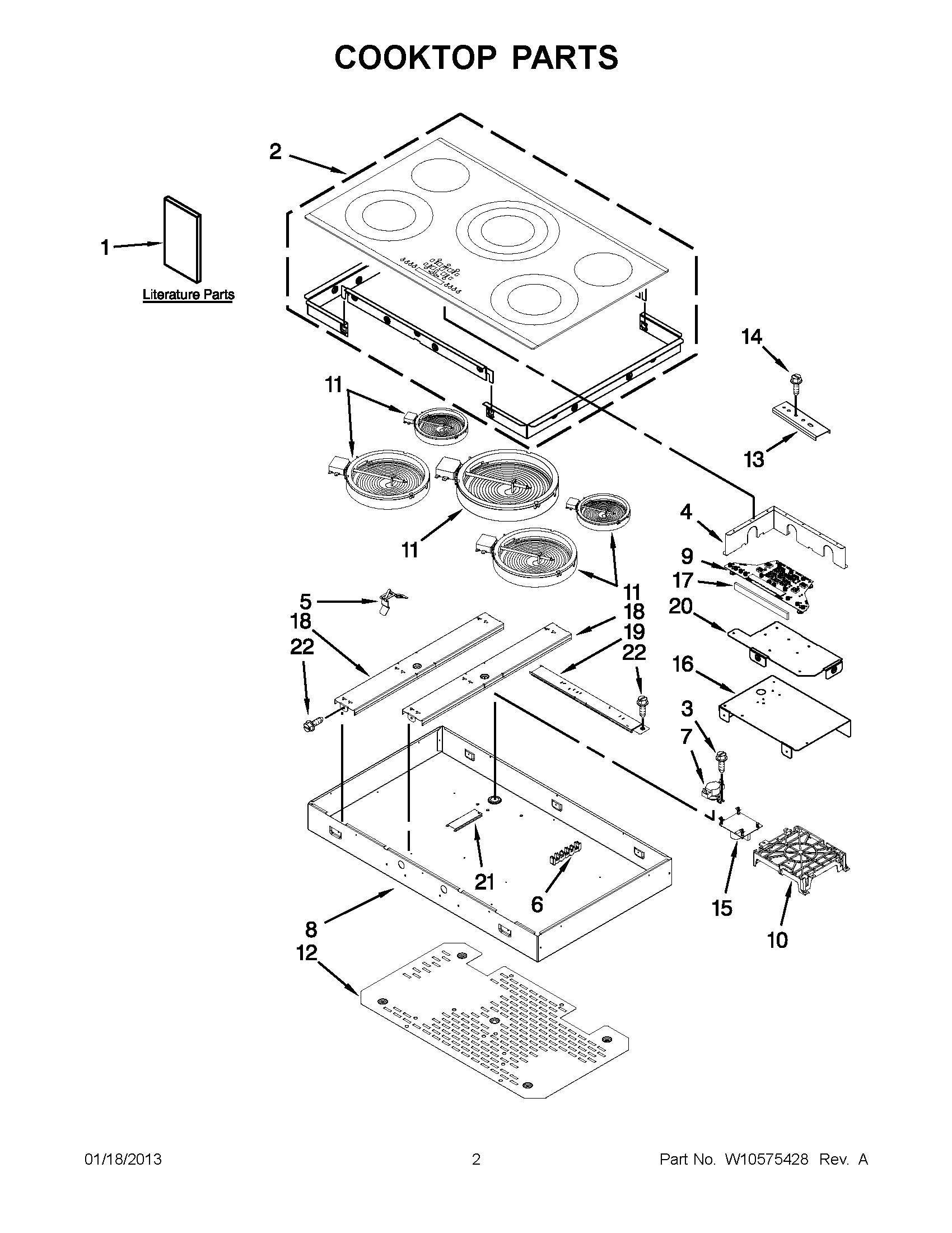

KECC667BSS01 01 – COOKTOP PARTS

KECC667BSS01 01 – COOKTOP PARTS

Written by

in

KECC667BSS01 01 – COOKTOP PARTS

Products

PositionProduct
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
2W10566716 Whirlpool Cooktop
2W10524409 Whirlpool Cooktop
3W10443110 Whirlpool Screw
4SHIELD, HEAT
5WPW10225448 Whirlpool Spring Assembly
6BLOCK, TERMINAL
7W10464566 Whirlpool Thermostat
8BOX, BURNER
9WPW10545371-includeCORE Whirlpool WPW10545371 Refrigerator Electronic Control Board + Core
10WPW10387653 Whirlpool Electronic Control Board + Core
11W11563195 Whirlpool Surface Element
11ELMNT-SURF
11ELMNT-SURF
12W10422069 Whirlpool Heat Shield
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
16BOX, APPLIANCE MANAGER
17W10464574 Whirlpool Insulation
18W10340200 Whirlpool Element Support
19W10340199 Whirlpool Element Support
20W10340228 Whirlpool Mounting Bracket
21RAIL, VERTICAL SHORT
22SCREW
