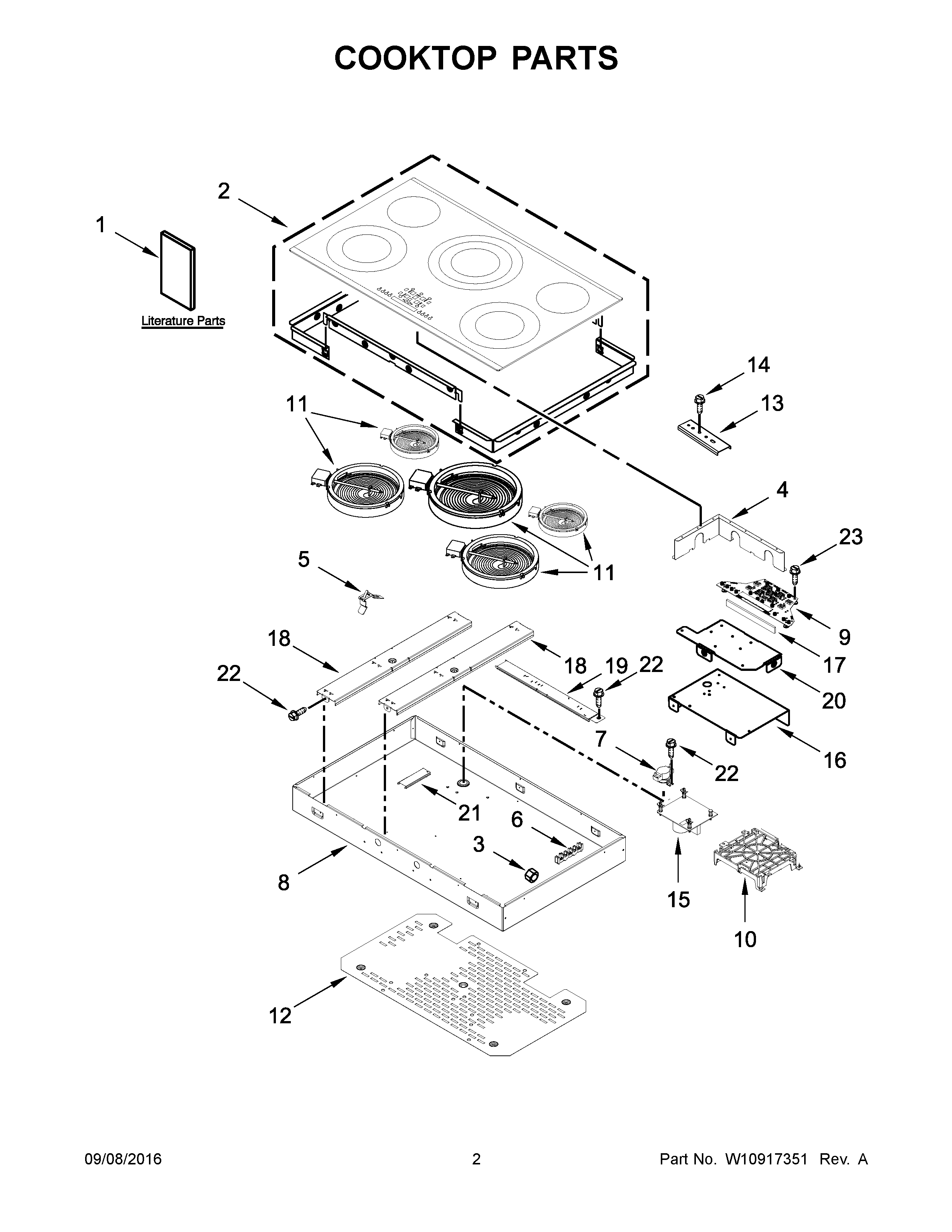

KECC667BSS02 02 – COOKTOP PARTS

Products

Position	Product
NI	W10905146 Whirlpool Wire Harness
NI	GASKET
NI	W10491984 Whirlpool Switch Seal
NI	W10291385 Whirlpool Conduit
NI	BUSHING
NI	WP8286642 Whirlpool Tape
NI	GROMMET, WIRE
NI	Nut
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNERS MANUAL
1B	SHEET, TECH (ENGLISH)
1C	SHEET, TECH (FRENCH)
1A	INSTRUCTIONS, INSTALLATION
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
2A	W10566716 Whirlpool Cooktop
2	W10524409 Whirlpool Cooktop
3	WP3400029 Whirlpool Dishwasher Nut
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	W10464566 Whirlpool Thermostat
8	BOX, BURNER
9	WPW10545371-includeCORE Whirlpool WPW10545371 Refrigerator Electronic Control Board + Core
10	W10920245-includeCORE Whirlpool W10920245 Washer Electronic Control Board + Core
11	ELMNT-SURF
11A	ELMNT-SURF
11B	W11563195 Whirlpool Surface Element
12	W10422069 Whirlpool Heat Shield
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
16	BOX, APPLIANCE MANAGER
17	W10464574 Whirlpool Insulation
18	W10340200 Whirlpool Element Support
19	W10340199 Whirlpool Element Support
20	W10340228 Whirlpool Mounting Bracket
21	RAIL, VERTICAL SHORT
22	SCREW
23	SCREW
