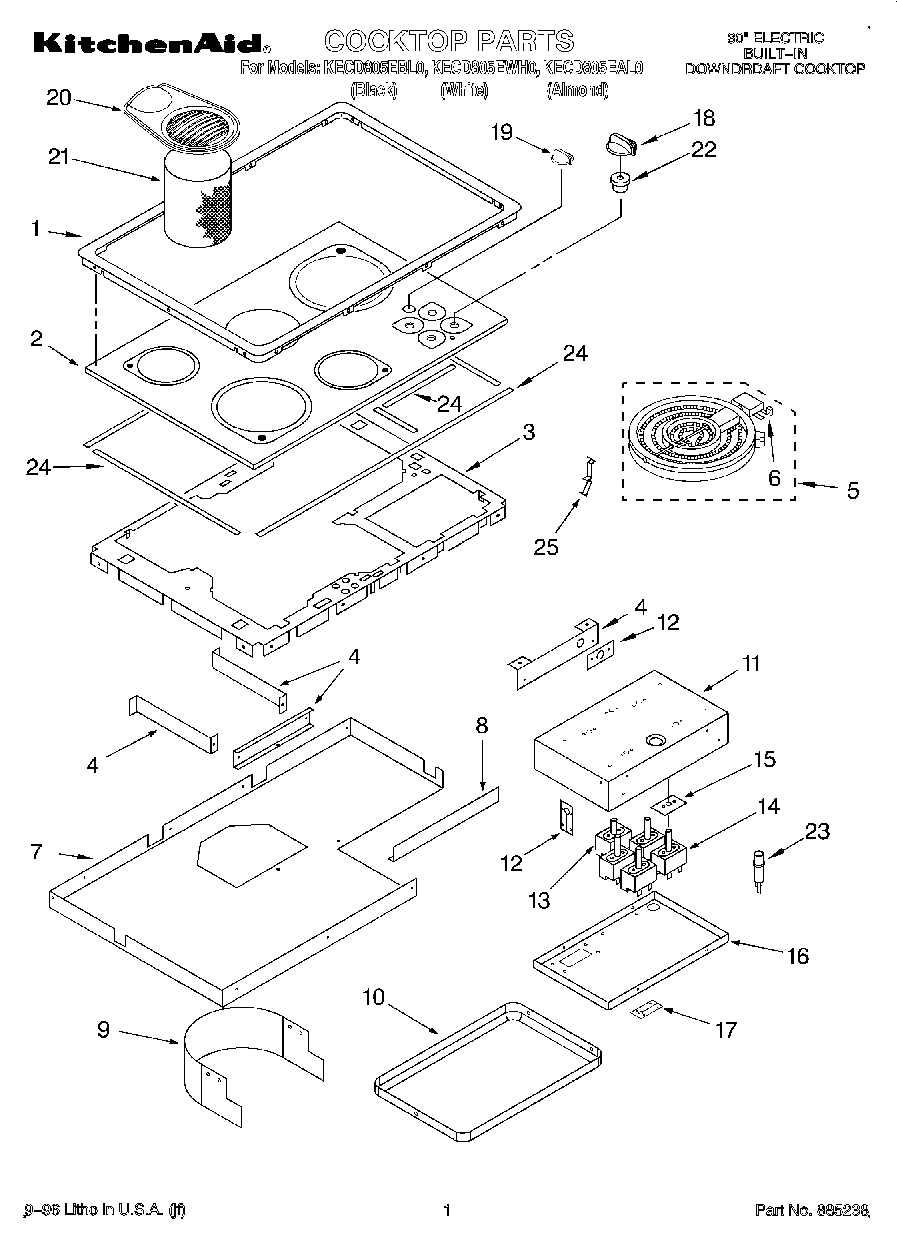

KECD805EAL0 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Almond Mdl)
1	Trim Ring, Cooktop (White Mdl)
1	Trim Ring, Cooktop (Black Mdl)
2	Glass, Cooktop (Black Mdl)
2	Glass, Cooktop (White Mdl)
2	Glass, Cooktop (Almond Mdl)
3	Plate, Backer
4	Bracket, Vent Shield (Front)
4	Bracket, Vent Shield (Right side)
4	Bracket, Vent Shield (Left side)
5	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
5	Element, Surface (8“ R.R. 2100W)
5	Element, Surface (7“ R.F. 1700W)
5	Element, Surface (6“ L.R. 1400W)
5	WP486754 Whirlpool Compactor Screw
6	Switch, Limiter (Use W/3189893 Element)
6	Limiter, Temp. (1400 W – LR)
6	Limiter, Temp (1700W – RF)
6	Limiter, Temp (2100W – RR)
7	Cover, Bottom
8	Bracket, Element Shield
9	Shield, Vent
10	Drip Bowl, Grease
11	Bracket, mounting Control
12	Grommet, Nomex
13	Switch, Speed Control
14	WP486579 Whirlpool Air Conditioner Screw
14	WP3191049 Infinite Switch Left Rear Right Front
14	WP3191050 Whirlpool Infinite Switch
15	3183956 Whirlpool Oven Seal Switch
16	Screw, 10-32 x 3/8
16	Cover, switch bottom
17	Plate, Cord Mtg
17	WP3196557 Whirlpool Screw
18	Knobs, Control (4) (Almond)
18	WP9750372FF Whirlpool Knob
18	WP9750372FW Whirlpool Knob Assembly
19	WPL 3190725
19	WPL 3190724
19	WPL 3190723
20	WPL 3190662
21	WPL 3190671
22	WP3188425 Whirlpool Seal Switch
23	Light, Indicator
24	WPL 3190665
24	WPL 3190666
24	Seal, Silicone (Controls (2))
24	Seal, Silicone (Front & Back (2))
24	WPL 3190667
25	Spring, Locator (8)
