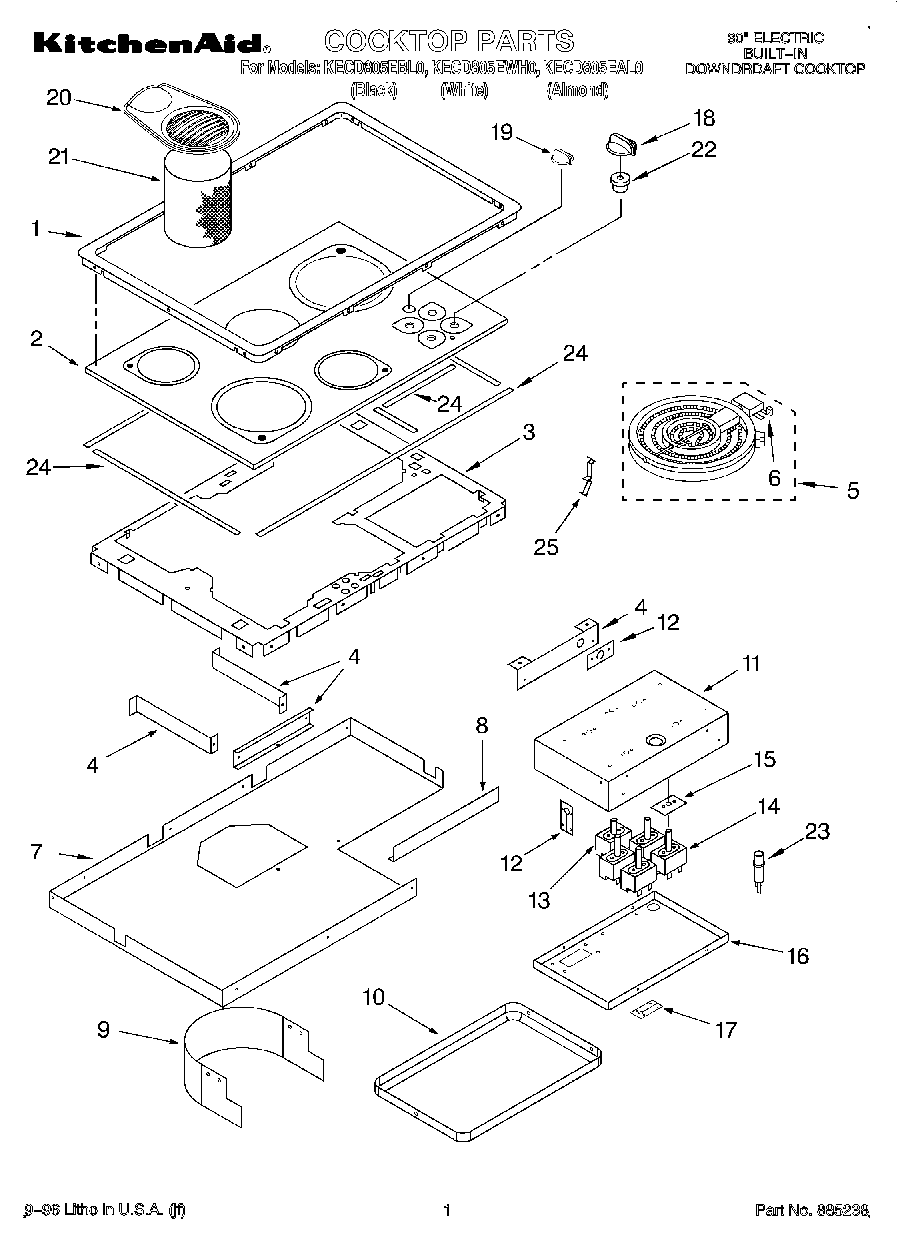

KECD805EWH0 01 – SECTION
Written by
in
KECD805EWH0 01 – SECTION
Products
Position
Product
1
Trim Ring, Cooktop (Almond Mdl)
1
Trim Ring, Cooktop (White Mdl)
1
Trim Ring, Cooktop (Black Mdl)
2
Glass, Cooktop (Black Mdl)
2
Glass, Cooktop (White Mdl)
2
Glass, Cooktop (Almond Mdl)
3
Plate, Backer
4
Bracket, Vent Shield (Front)
4
Bracket, Vent Shield (Right side)
4
Bracket, Vent Shield (Left side)
5
W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
5
Element, Surface (8“ R.R. 2100W)
5
Element, Surface (7“ R.F. 1700W)
5
Element, Surface (6“ L.R. 1400W)
5
WP486754 Whirlpool Compactor Screw
6
Switch, Limiter (Use W/3189893 Element)
6
Limiter, Temp. (1400 W – LR)
6
Limiter, Temp (1700W – RF)
6
Limiter, Temp (2100W – RR)
7
Cover, Bottom
8
Bracket, Element Shield
9
Shield, Vent
10
Drip Bowl, Grease
11
Bracket, mounting Control
12
Grommet, Nomex
13
Switch, Speed Control
14
WP486579 Whirlpool Air Conditioner Screw
14
WP3191049 Infinite Switch Left Rear Right Front
14
WP3191050 Whirlpool Infinite Switch
15
3183956 Whirlpool Oven Seal Switch
16
Screw, 10-32 x 3/8
16
Cover, switch bottom
17
Plate, Cord Mtg
17
WP3196557 Whirlpool Screw
18
Knobs, Control (4) (Almond)
18
WP9750372FF Whirlpool Knob
18
WP9750372FW Whirlpool Knob Assembly
19
WPL 3190725
19
WPL 3190724
19
WPL 3190723
20
WPL 3190662
21
WPL 3190671
22
WP3188425 Whirlpool Seal Switch
23
Light, Indicator
24
WPL 3190665
24
WPL 3190666
24
Seal, Silicone (Controls (2))
24
Seal, Silicone (Front & Back (2))
24
WPL 3190667
25
Spring, Locator (8)
←
