KECD805EWH0 02 – SECTION

Products

Position	Product
	WA906B Whirlpool Cooktop Glass Scraper
	1
	Hardware Asm.
	Harness, Wire (Blower/Switch)
	Strain Relief
	Harness, Wire (W/Hot Surface Lights attached)
	Harness, Wire (Ceran Downdraft)
	Guard, Screw
	Use & Care Guide
	Installation Instructions
	Wiring Diagram
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	8528351 Whirlpool Clip
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)

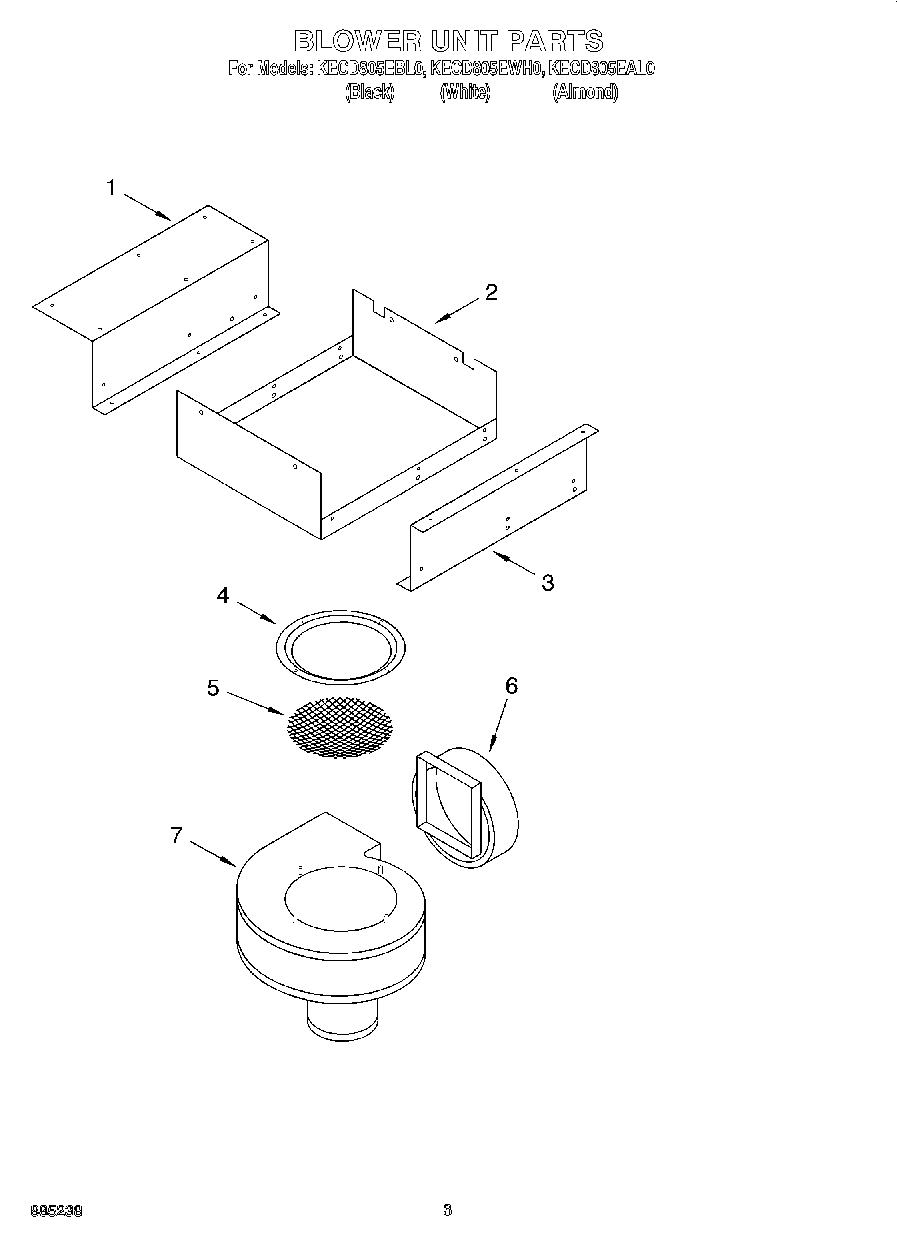

1	Bracket, Mtg. (Left)
2	Bracket, Mtg. (Bottom)
3	Bracket, Mtg. (Right)
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
6	WP3196557 Whirlpool Screw
7	Blower Motor Asm. (Includes Fan Asm)
