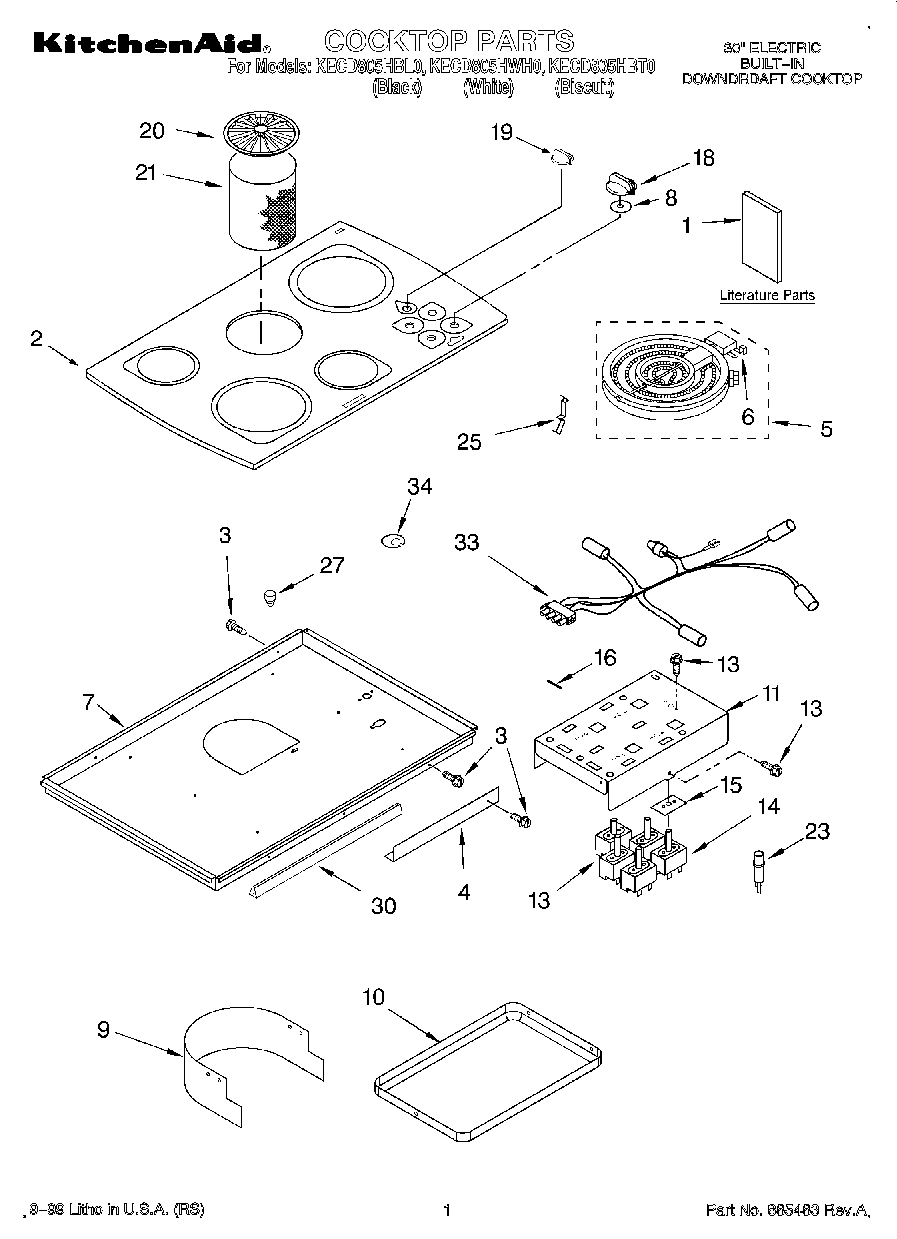

| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Wiring Diagram) |
| 2 | Cooktop, Glass & Bracket Assembly (Honeycomb) |
| 2 | Cooktop, Glass & Bracket Assembly (White) |
| 2 | Cooktop, Glass & Bracket Assembly (Black) |
| 3 | WP3196557 Whirlpool Screw |
| 4 | Bracket, Support (2) |
| 5 | Element, Surface (L.F. (2200W)) |
| 5 | W10823693 Whirlpool Surface Element |
| 5 | Element, Surface (Includes No. 16) (1200W Right Front) |
| 5 | Element, Surface (Includes No. 16) (1500W Left Rear) |
| 6 | Switch, Limiter (Use W/3191984 Element) |
| 6 | Limiter, Temp. (2100W, LF-RR) |
| 6 | Limiter, Temp. (LF) |
| 6 | Switch, Limiter (Use W/3191981 Element) |
| 7 | Box, Burner |
| 8 | WP3188425 Whirlpool Seal Switch |
| 9 | Shield, Vent |
| 10 | Drip Bowl, Grease |
| 11 | Bracket, Mounting Control |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | Switch, Speed Control |
| 14 | WP3191050 Whirlpool Infinite Switch |
| 14 | WP3191049 Infinite Switch Left Rear Right Front |
| 15 | 3183956 Whirlpool Oven Seal Switch |
| 16 | W10491984 Whirlpool Switch Seal |
| 18 | WP9750372FW Whirlpool Knob Assembly |
| 18 | WP9750372FC Whirlpool Knob |
| 18 | WP9750372FF Whirlpool Knob |
| 19 | WPL 3190724 |
| 19 | WPL 3190723 |
| 19 | Knob, Blower Switch (Biscuit) |
| 20 | Grille, Air |
| 21 | Filter, Grease |
| 23 | 3193012 Whirlpool Oven Indicator Light |
| 25 | Spring, Locator |
| 27 | Bumper, Silicone |
| 30 | Gasket, Vent Shield |
| 33 | Lamp, Hot Surface Indicator |
| 34 | WPL 3193094 |
