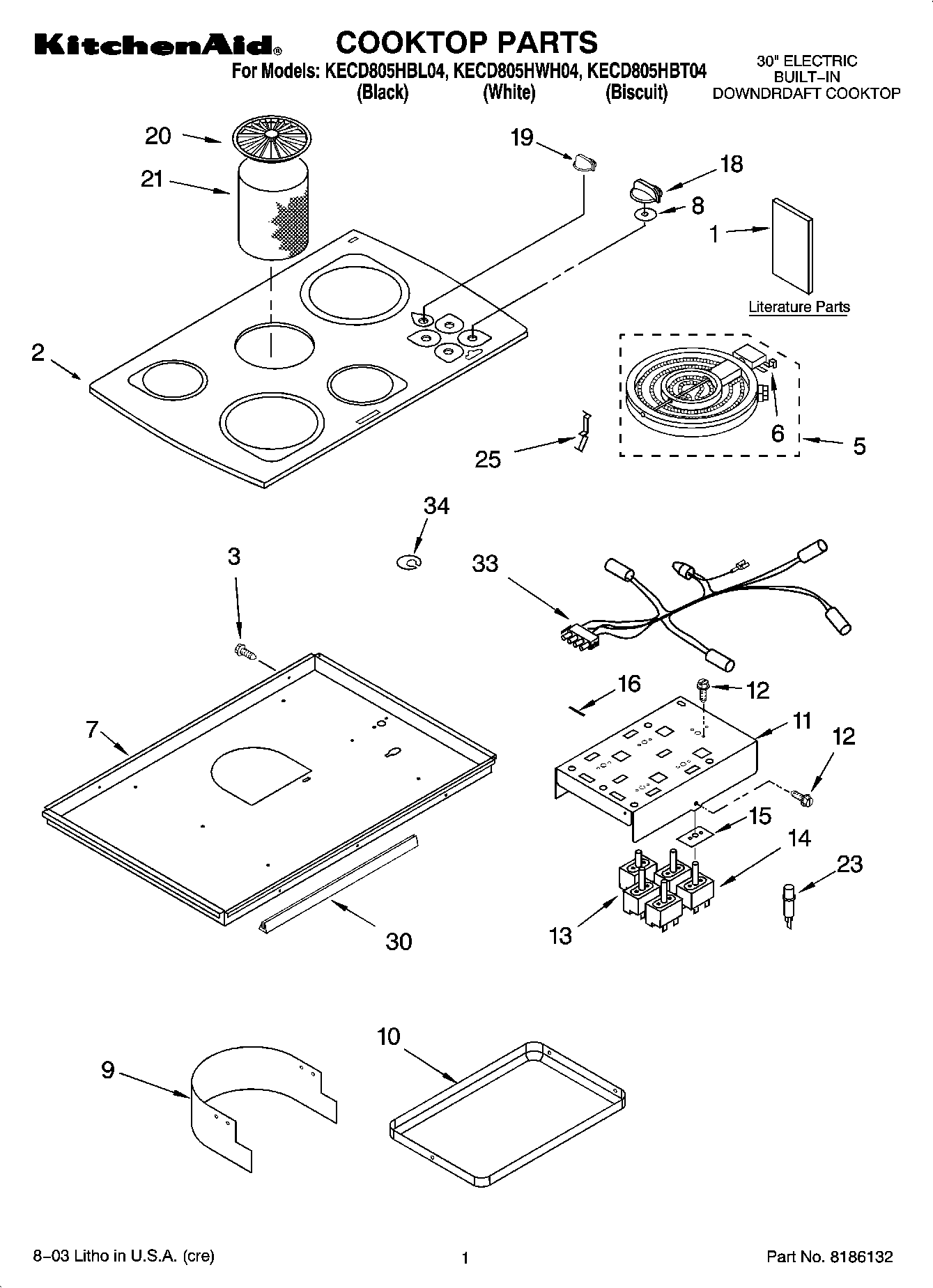

KECD805HBL04 01 – COOKTOP PARTS

KECD805HBL04 01 – COOKTOP PARTS

Written by

in

KECD805HBL04 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
2Cooktop, Glass & Bracket Assembly (White)
2Cooktop, Glass & Bracket Assembly (Honeycomb)
2Cooktop, Glass & Bracket Assembly (Black)
3WP3196557 Whirlpool Screw
5W10823697 Whirlpool Surface Element
5W10823698 Whirlpool Surface Element Right Rear
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Rail, Element (Right Hand)
6Rail, Element (Left Hand)
7Box, Burner
8WP3188425 Whirlpool Seal Switch
9Shield, Vent
9WP3177991 Whirlpool Screw
10Drip Bowl, Grease
113183956 Whirlpool Oven Seal Switch
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13Switch, Speed Control
14WP3191049 Infinite Switch Left Rear Right Front
14WP3191050 Whirlpool Infinite Switch
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
18WP9750372FF Whirlpool Knob
18WP9750372FC Whirlpool Knob
18WP9750372FW Whirlpool Knob Assembly
19WPL 3190723
19Knob, Blower Switch (Biscuit)
19WPL 3190724
20Grille, Air
21Filter, Grease
233193012 Whirlpool Oven Indicator Light
25Spring, Locator
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
