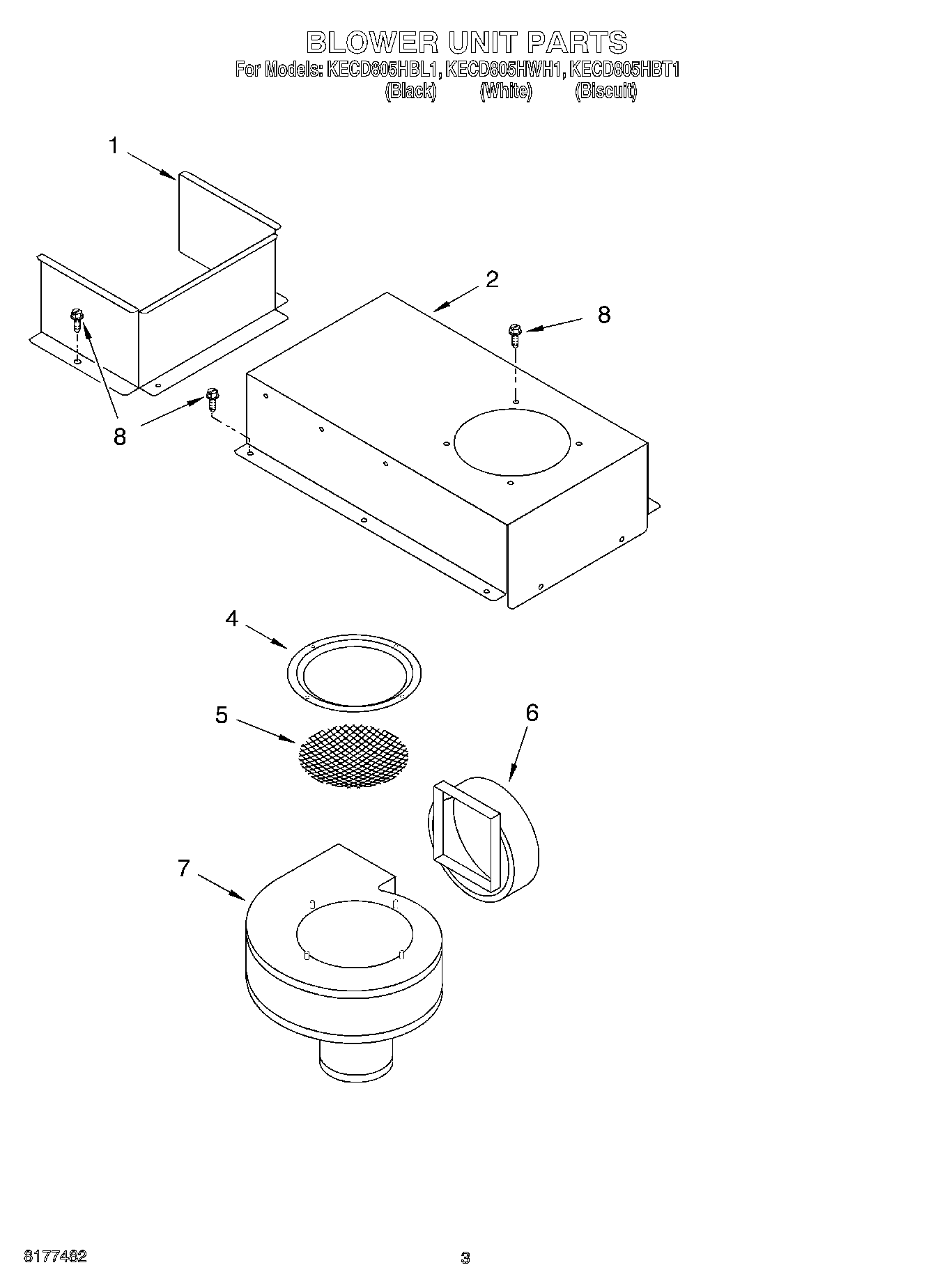

KECD805HBT1 02 – SECTION

Products

Position	Product
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	Blower Motor Asm. (Includes Fan Asm)
8	WP3196557 Whirlpool Screw
8	1
8	WA906B Whirlpool Cooktop Glass Scraper
8	Hardware Asm.
8	Harness, Wire (Blower/Switch)
8	Strain Relief
8	Harness, Wire (Ceran Downdraft)
8	Wire (14 Ga. 200 c Brown)
8	18 Ga. 80~c Rating (Red)
8	WP3400015 Whirlpool Screw
8	Wire, 25` Roll (Black 14 Ga.)
8	Wire, 25` Roll (Red 14 Ga.)
8	Wire, 25“ Roll (White 14 GA.)
8	8528351 Whirlpool Clip
8	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8	242831 Whirlpool Oven Wire
8	Wire (14 Ga. 150 c Brown)
8	Wire (14 Ga. 150 c Green)
8	Wire (14 Ga. 150 c Orange)
8	Wire (14 Ga. 150 c Yellow)
8	Wire (12 Ga. 150 c Black)
8	Conduit, Downdraft
