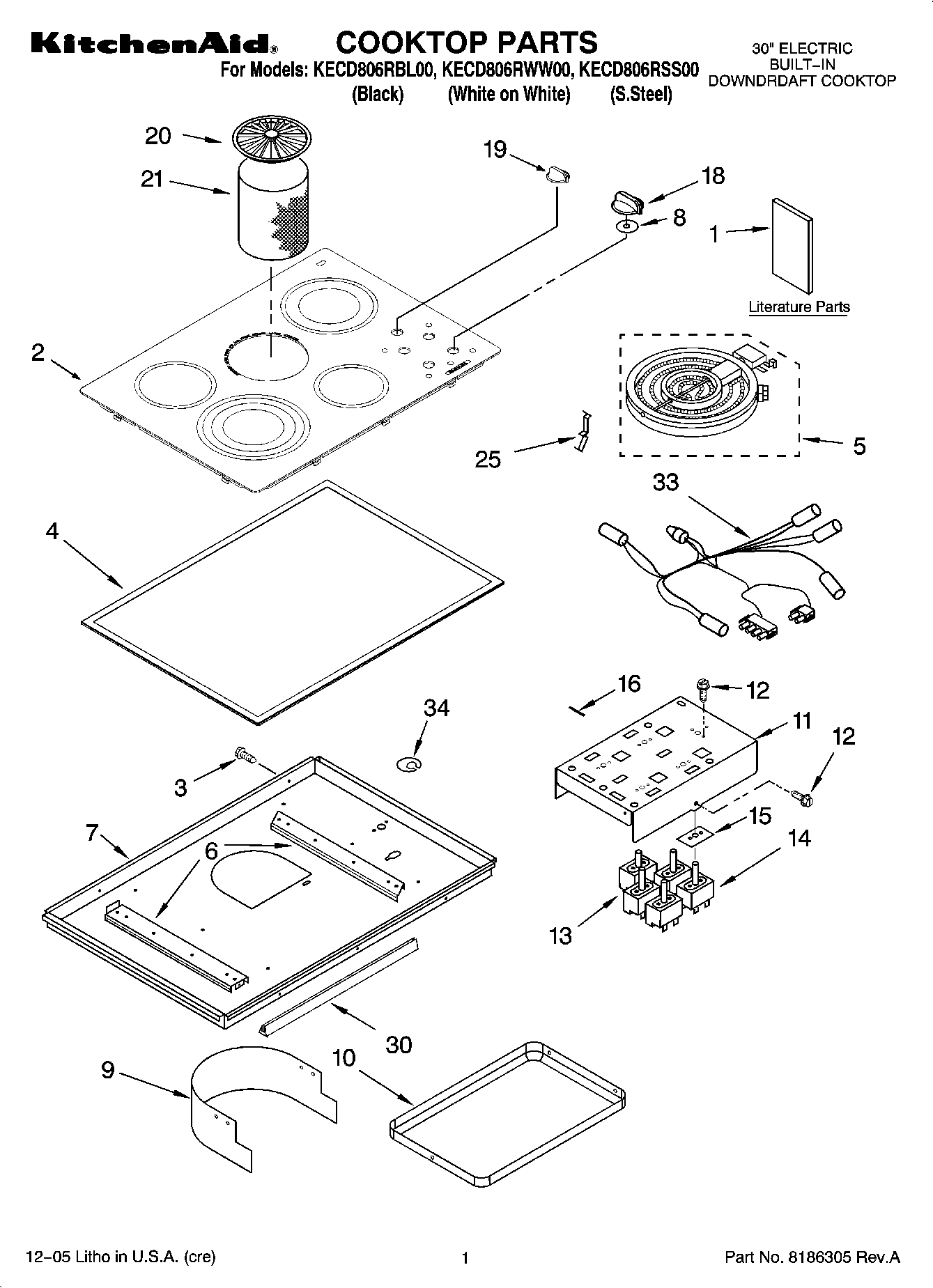

KECD806RSS00 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
1	COOKTOP PARTS
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
2	Foam, Seal
2	Cooktop, Glass & Bracket Assembly (Black)
2	Cooktop, Glass & Bracket Assembly (White)
2	Cooktop, Glass & Bracket Assembly (S.Steel)
3	WP3196557 Whirlpool Screw
4	Frame, Cooktop (S.Steel Only)
5	Element, Surface (2500/1800/900W LF)
5	ELEMENT, SURFACE 2000/1000W RR
5	W10823699 Whirlpool Right Front Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Rail, Element (Left Hand)
6	Rail, Element (Right Hand)
7	Box, Burner
8	WP3188425 Whirlpool Seal Switch
9	WP3177991 Whirlpool Screw
9	Shield, Vent
10	Drip Bowl, Grease
11	3183956 Whirlpool Oven Seal Switch
11	Bracket, Control Mounting
12	WP486579 Whirlpool Air Conditioner Screw
13	WP4456836 Whirlpool Speed Switch
14	WP8286070 Whirlpool Infinite Switch Left Front
14	WP4456027 Whirlpool Infinite Switch Right Rear
14	WP3191049 Infinite Switch Left Rear Right Front
15	8285469 Whirlpool Oven Seal Switch
16	W10491984 Whirlpool Switch Seal
18	WP8286096BL Whirlpool Knob
18	Knob, Control (4) (Cashmere Metal)
18	8286096WH Whirlpool Knob
19	Knob, Blower Switch (Cashmere Metalic)
19	WP8286097BL Whirlpool Knob
19	Knob, Blower Switch (White)
20	Grille, Air (White)
20	Grille, Air (Black)
20	Grille, Air (Cashmere Metalic)
21	Filter, Grease
25	WP486754 Whirlpool Compactor Screw
25	9759094 Whirlpool Spring
30	Gasket, Vent Shield
33	Lamp, Hot Surface Indicator
34	WPL 3193094
