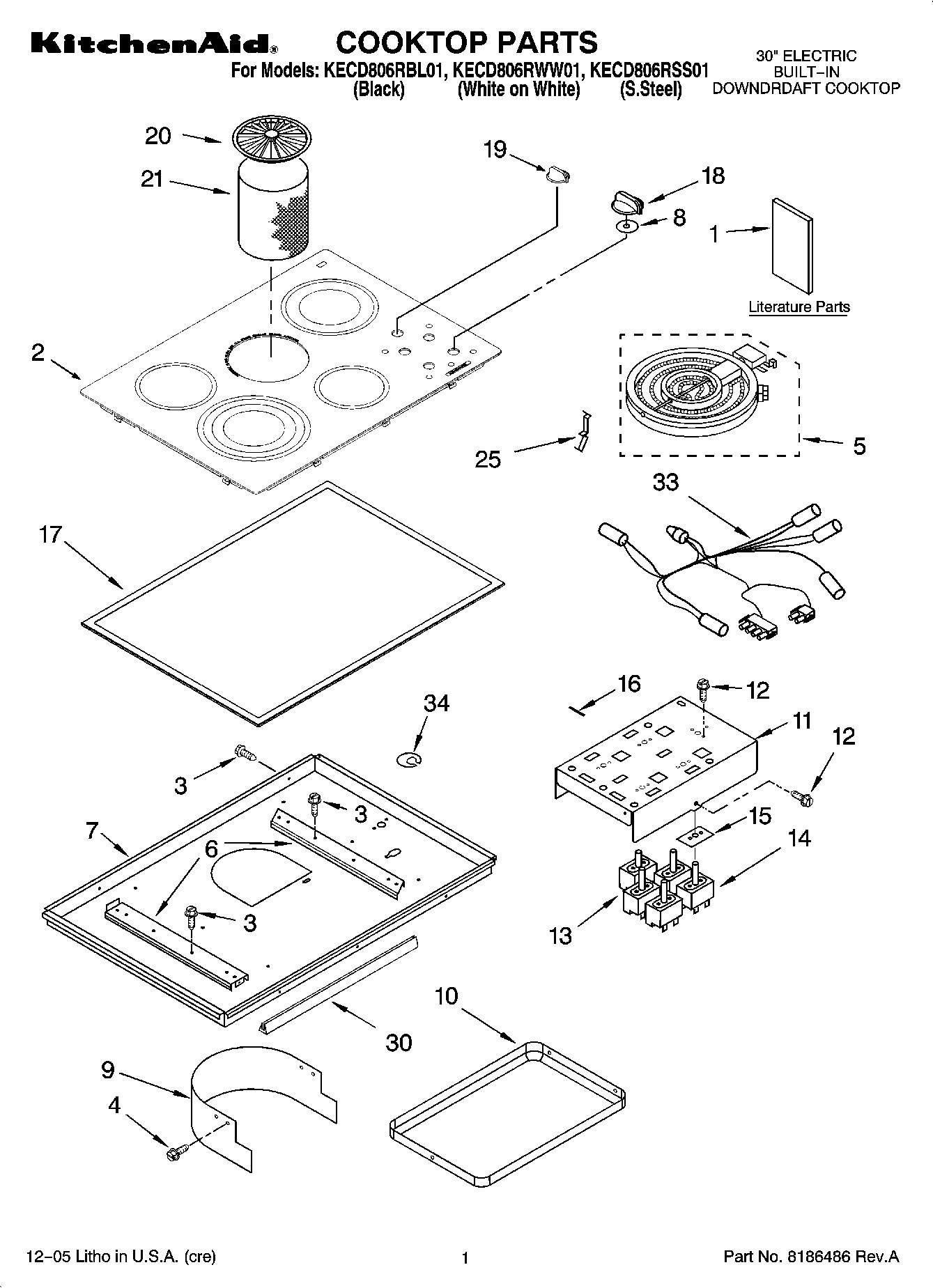

KECD806RSS01 01 – COOKTOP PARTS
Written by
in
KECD806RSS01 01 – COOKTOP PARTS
Products
Position
Product
1
Safe Cooking Tips (French)
1
Wiring Diagram
1
Use & Care Guide
1
Installation Instructions
1
Safe Cooking Tips
1
COOKTOP PARTS
2
Cooktop, Glass & Bracket Assembly (White)
2
Cooktop, Glass & Bracket Assembly (S.Steel)
2
Cooktop, Glass & Bracket Assembly (Black)
3
WP3196557 Whirlpool Screw
4
WP3177991 Whirlpool Screw
5
W10823699 Whirlpool Right Front Surface Element
5
ELEMENT, SURFACE 2000/1000W RR
5
Element, Surface (2500/1800/900W LF)
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
6
Rail, Element (Left Hand)
6
Rail, Element (Right Hand)
7
Box, Burner
8
WP3188425 Whirlpool Seal Switch
9
Shield, Vent
10
Drip Bowl, Grease
11
Bracket, Control Mounting
12
WP486579 Whirlpool Air Conditioner Screw
13
WP4456836 Whirlpool Speed Switch
14
WP3191049 Infinite Switch Left Rear Right Front
14
WP8286070 Whirlpool Infinite Switch Left Front
14
WP4456027 Whirlpool Infinite Switch Right Rear
15
8285469 Whirlpool Oven Seal Switch
16
W10491984 Whirlpool Switch Seal
17
Frame, Cooktop (S.Steel Only)
18
WP8286096BL Whirlpool Knob
18
8286096WH Whirlpool Knob
18
Knob, Control (4) (Cashmere Metal)
19
Knob, Blower Switch (Cashmere Metalic)
19
Knob, Blower Switch (White)
19
WP8286097BL Whirlpool Knob
20
Grille, Air (White)
20
Grille, Air (Cashmere Metalic)
20
Grille, Air (Black)
21
Filter, Grease
25
9759094 Whirlpool Spring
30
Gasket, Vent Shield
33
Lamp, Hot Surface Indicator
34
WPL 3193094
←
