KECD806RSS01 02 – BLOWER UNIT PARTS, OPTIONAL PARTSadmin2025-04-26T12:11:32+00:00KECD806RSS01 02 – BLOWER UNIT PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| 1 |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| ACCESSORY PARTS |
| FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES--25FT. LENGTH |
| Harness, Wire (Ceran Downdraft) |
| 4456859 Whirlpool Oven Wire Harness |
| Strain Relief |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| WP3400015 Whirlpool Screw |
| WIRING HARNESS PARTS WIRING HARNESS PARTS |
| Conduit, Downdraft |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| 8528351 Whirlpool Clip |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 242831 Whirlpool Oven Wire |
| Wire (14 Ga. 150 c Brown) |

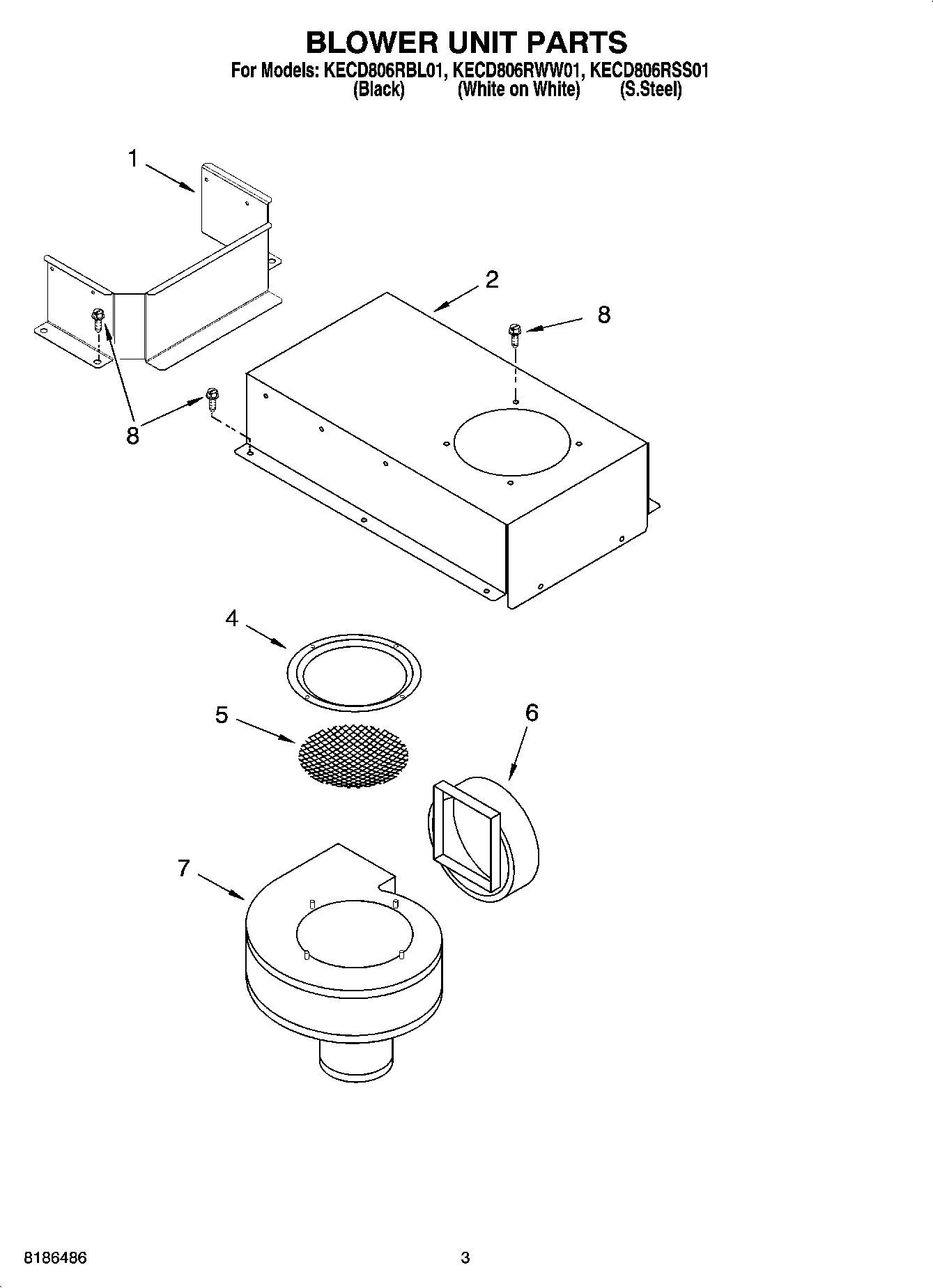

| 1 | Bracket, Shield |
| 2 | Bracket, Blower Mounting |
| 4 | Ring, Inlet |
| 5 | Screen, Inlet |
| 6 | Adapter, Vent |
| 7 | WPW10109930 Whirlpool Blower Assembly |
| 8 | Hardware Asm. |
| 8 | WP3196557 Whirlpool Screw |
| 8 | 8186533 Whirlpool Hardware |
| 8 | WP3400093 Whirlpool Screw |
| 8 | FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous |
