KECD806RSS03 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Following Parts Not Illustrated
1
WPL 4456028
4456859 Whirlpool Oven Wire Harness
Strain Relief
Conduit, Downdraft
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WP3400015 Whirlpool Screw
WIRING HARNESS PARTS
Harness, Wire (Ceran Downdraft)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
SPLICING WIRES–25FT. LENGTH
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire

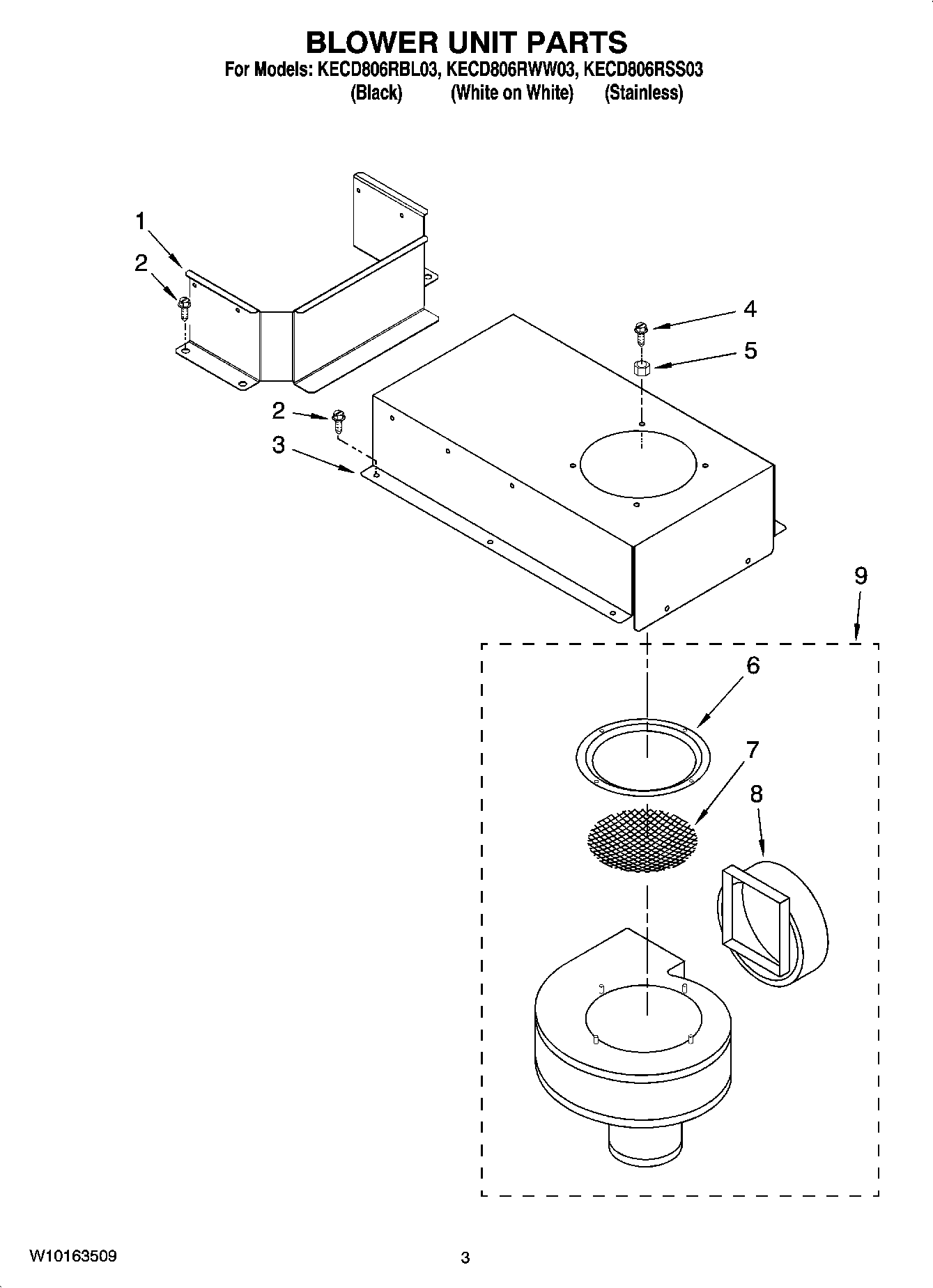

1Bracket, Vent Shield
2WP3196557 Whirlpool Screw
3Bracket, Blower Mounting
4WP308685 Whirlpool Microwave Screw
5WP488130 Whirlpool Air Conditioner Nut
6Ring, Inlet
7Screen, Inlet
8Adapter, Vent
9WPW10109930 Whirlpool Blower Assembly
98186533 Whirlpool Hardware
9WP8286642 Whirlpool Tape
9WP3400093 Whirlpool Screw
9FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
