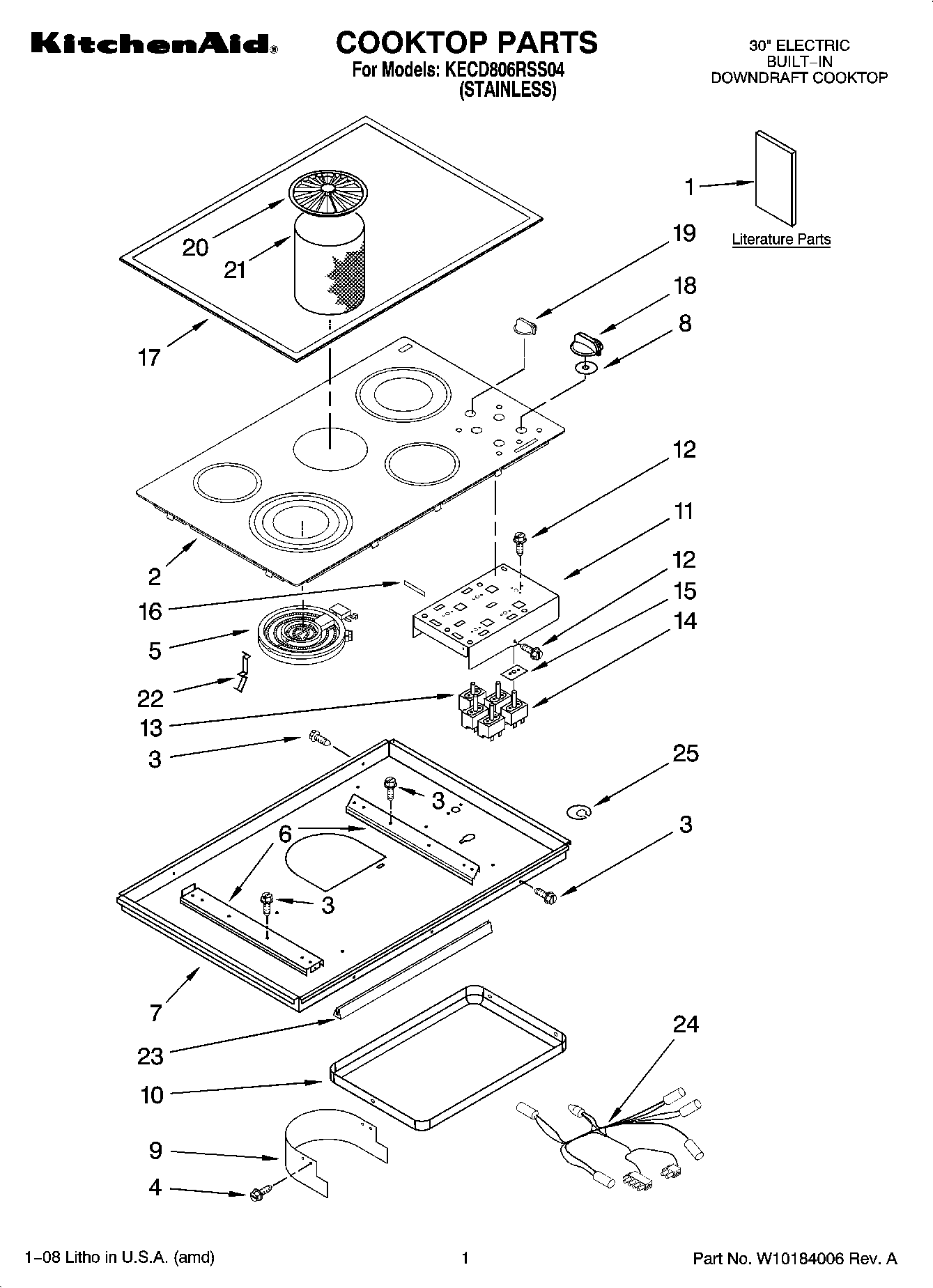

KECD806RSS04 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Wiring Diagram
1Use & Care Guide
2Cooktop, Glass (Black)
3WP3196557 Whirlpool Screw
4WP3177991 Whirlpool Screw
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5ELEMENT, SURFACE 2000/1000W RR
5Element, Surface (2500/1800/900W LF)
6Rail, Element (Left Hand)
6Rail, Element (Right Hand)
7Box, Burner
88285469 Whirlpool Oven Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP3191049 Infinite Switch Left Rear Right Front
14WP4456027 Whirlpool Infinite Switch Right Rear
14WP8286070 Whirlpool Infinite Switch Left Front
153183956 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
17Frame, Cooktop (Stainless Only)
18WP8286096BL Whirlpool Knob
19WP8286097BL Whirlpool Knob
20Grille, Air (Black)
21Filter, Grease
229759094 Whirlpool Spring
23Gasket, Vent Shield
24Lamp, Hot Surface Indicator
25WPL 3193094
