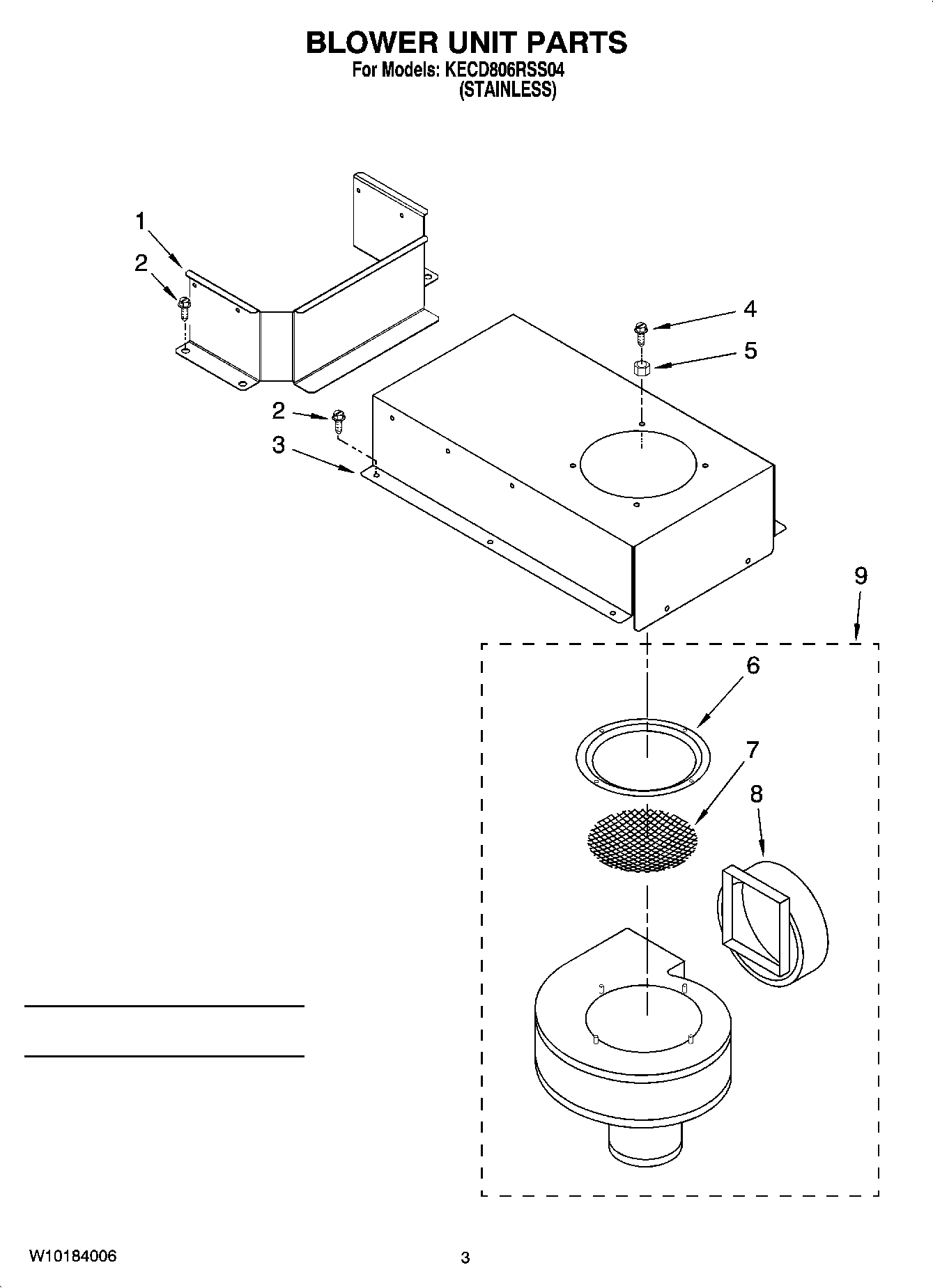

KECD806RSS04 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	1
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	SPLICING WIRES–25FT. LENGTH
	WPL 4456028
	4456859 Whirlpool Oven Wire Harness
	Strain Relief
	Following Parts Not Illustrated
	Conduit, Downdraft
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	WIRING HARNESS PARTS
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Harness, Wire (Ceran Downdraft)
	242831 Whirlpool Oven Wire
	ACCESSORY PARTS
	8528351 Whirlpool Clip
1	Bracket, Shield
2	WP3196557 Whirlpool Screw
3	Bracket, Blower Mounting
4	WP308685 Whirlpool Microwave Screw
5	WP488130 Whirlpool Air Conditioner Nut
6	Ring, Inlet
7	Screen, Inlet
8	Adapter, Vent
9	WPW10109930 Whirlpool Blower Assembly
9	8186533 Whirlpool Hardware
9	WP8286642 Whirlpool Tape
9	WP3400093 Whirlpool Screw
9	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
