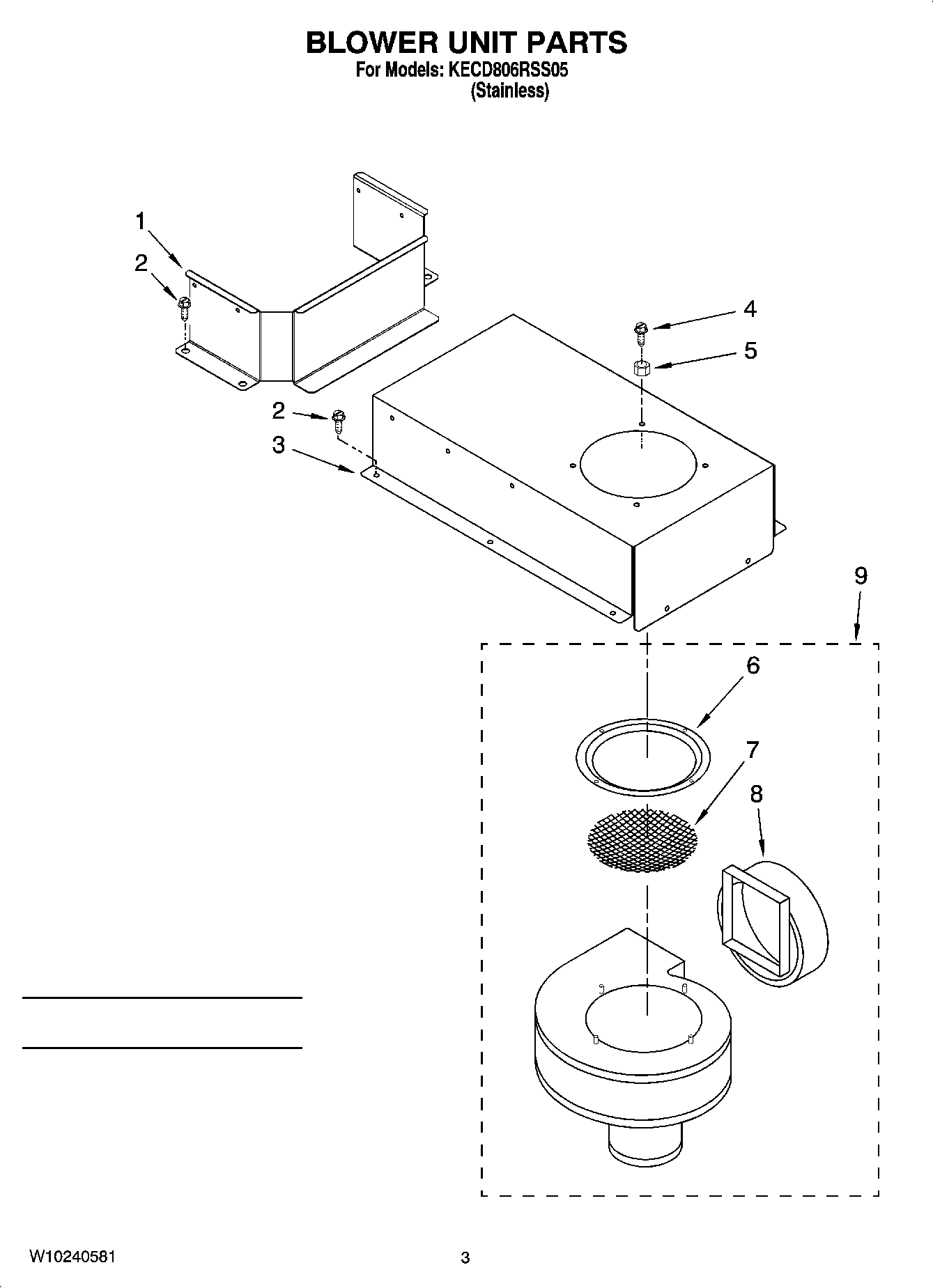

KECD806RSS05 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

KECD806RSS05 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Written by

in

KECD806RSS05 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
8186533 Whirlpool Hardware
Following Parts Not Illustrated
Miscellaneous
Following Parts Not Illustrated
Harness, Wire (Ceran Downdraft)
Conduit, Downdraft
Strain Relief
4456859 Whirlpool Oven Wire Harness
WPL 4456028
WIRING HARNESS PARTS
8528351 Whirlpool Clip
WP3400015 Whirlpool Screw
WP3400093 Whirlpool Screw
WP8286642 Whirlpool Tape
1Bracket, Shield
2WP3196557 Whirlpool Screw
3Bracket, Blower Mounting
4WP308685 Whirlpool Microwave Screw
5WP488130 Whirlpool Air Conditioner Nut
6Ring, Inlet
7Screen, Inlet
8Adapter, Vent
9WPW10109930 Whirlpool Blower Assembly
