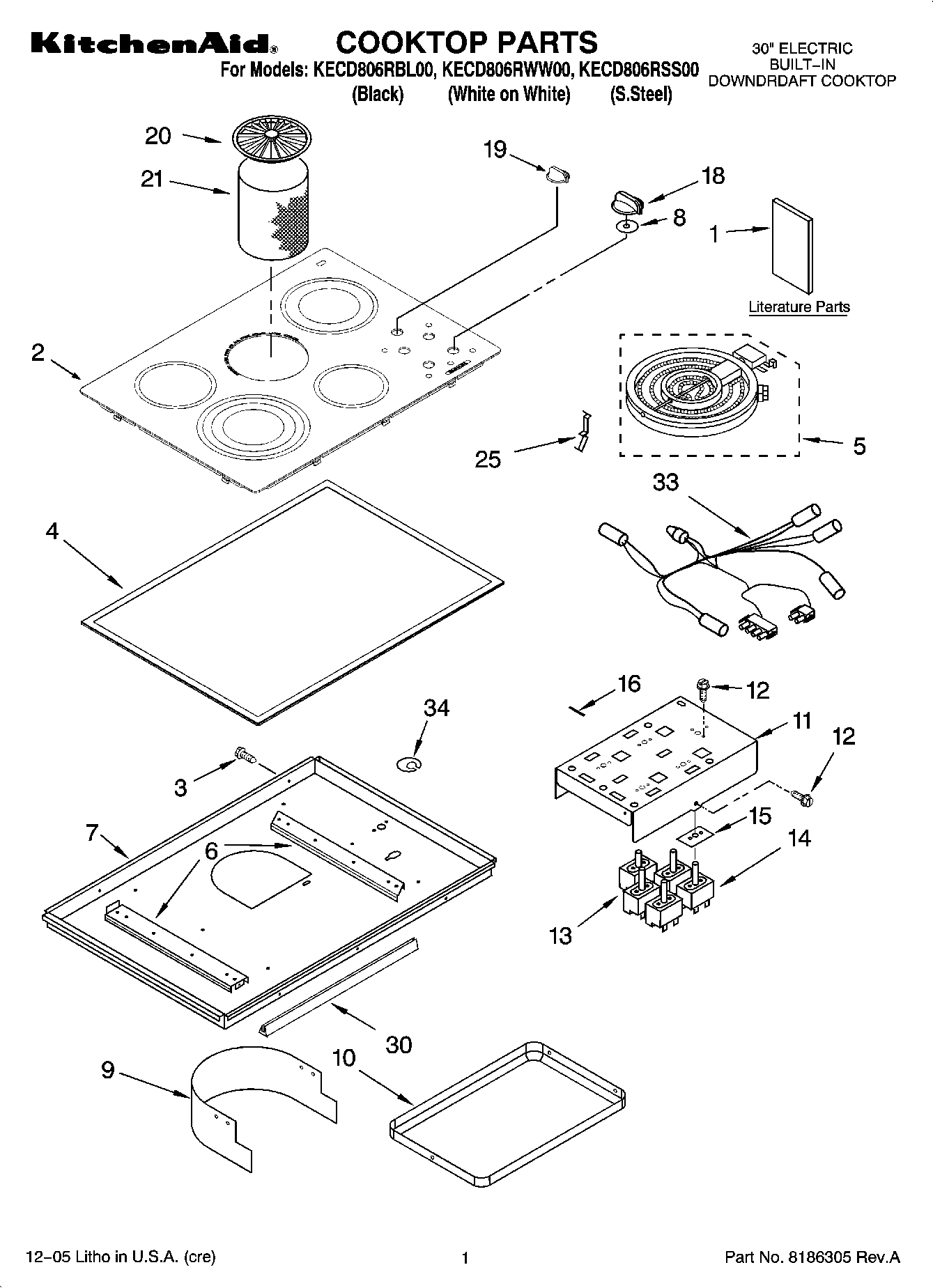

KECD806RWW00 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
1COOKTOP PARTS
1Safe Cooking Tips
1Safe Cooking Tips (French)
2Foam, Seal
2Cooktop, Glass & Bracket Assembly (Black)
2Cooktop, Glass & Bracket Assembly (White)
2Cooktop, Glass & Bracket Assembly (S.Steel)
3WP3196557 Whirlpool Screw
4Frame, Cooktop (S.Steel Only)
5Element, Surface (2500/1800/900W LF)
5ELEMENT, SURFACE 2000/1000W RR
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Rail, Element (Left Hand)
6Rail, Element (Right Hand)
7Box, Burner
8WP3188425 Whirlpool Seal Switch
9WP3177991 Whirlpool Screw
9Shield, Vent
10Drip Bowl, Grease
113183956 Whirlpool Oven Seal Switch
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP8286070 Whirlpool Infinite Switch Left Front
14WP4456027 Whirlpool Infinite Switch Right Rear
14WP3191049 Infinite Switch Left Rear Right Front
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
18WP8286096BL Whirlpool Knob
18Knob, Control (4) (Cashmere Metal)
188286096WH Whirlpool Knob
19Knob, Blower Switch (Cashmere Metalic)
19WP8286097BL Whirlpool Knob
19Knob, Blower Switch (White)
20Grille, Air (White)
20Grille, Air (Black)
20Grille, Air (Cashmere Metalic)
21Filter, Grease
25WP486754 Whirlpool Compactor Screw
259759094 Whirlpool Spring
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
