KECD806RWW00 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS WIRING HARNESS PARTS
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	4456859 Whirlpool Oven Wire Harness
	Strain Relief
	Conduit, Downdraft
	Harness, Wire (Ceran Downdraft)
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	8528351 Whirlpool Clip
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire, 25“ Roll (White 14 GA.)

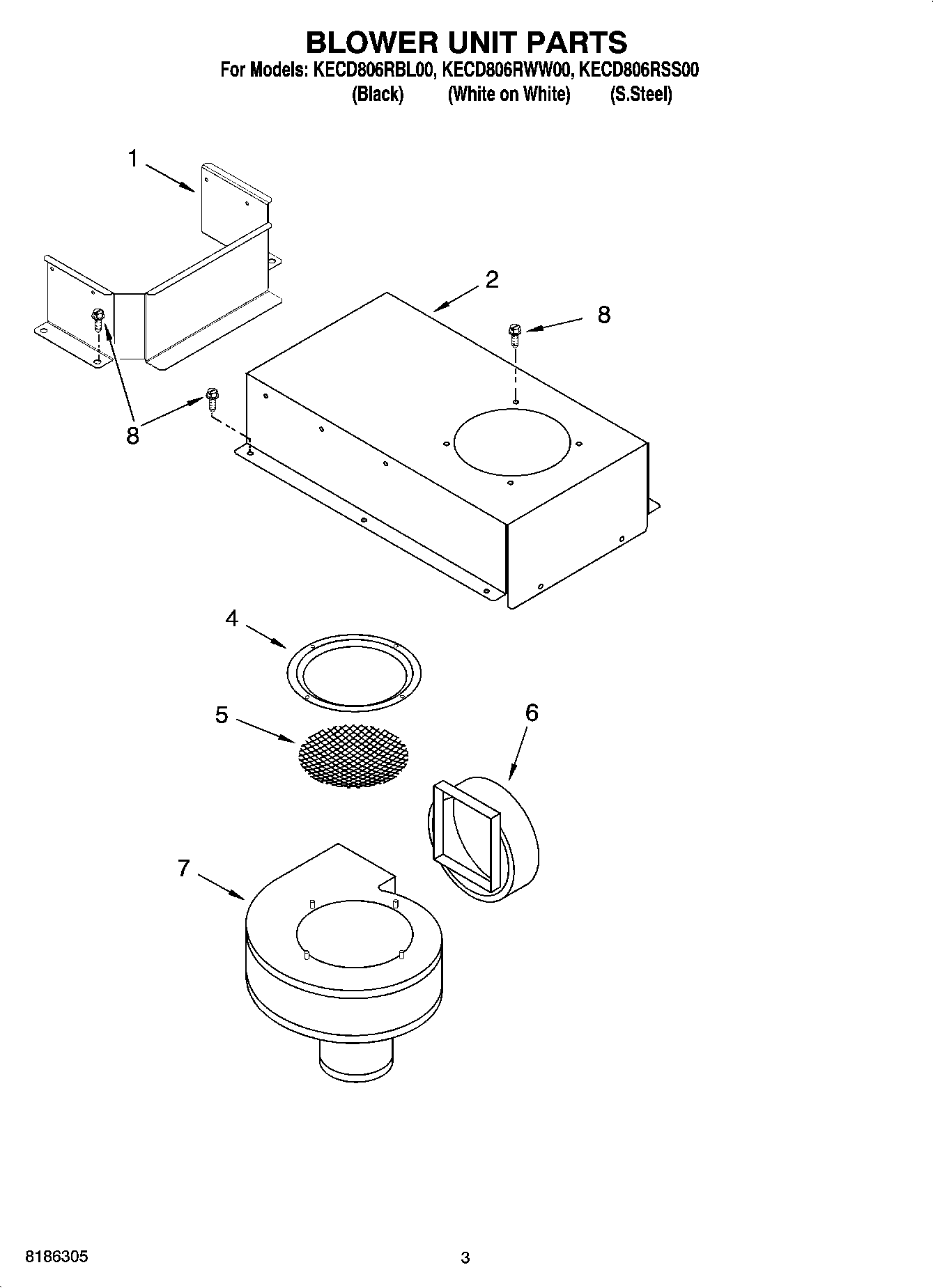

1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	WPW10109930 Whirlpool Blower Assembly
8	WP3196557 Whirlpool Screw
8	WP3400093 Whirlpool Screw
8	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
8	Hardware Asm.
8	8186533 Whirlpool Hardware
