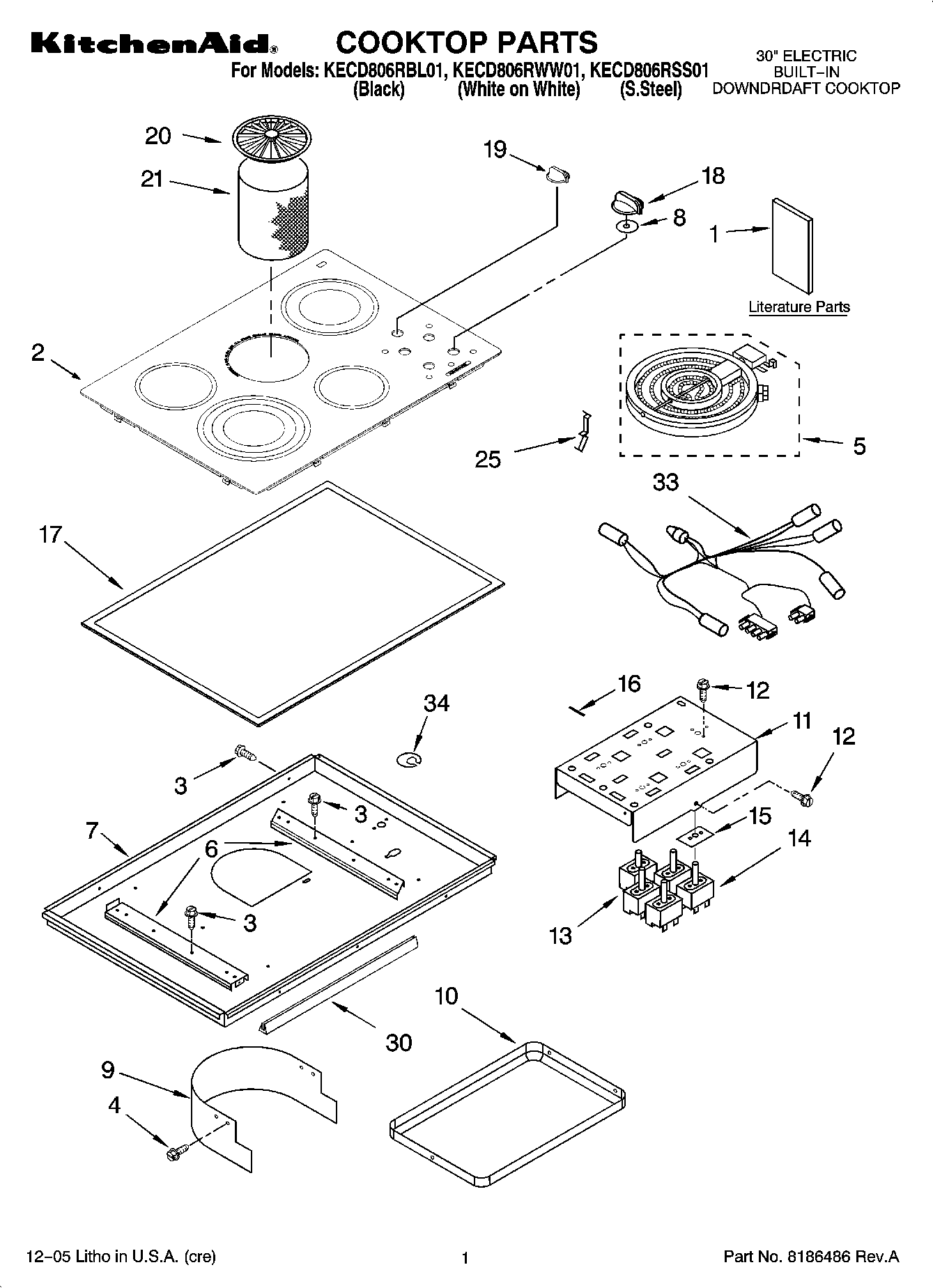

KECD806RWW01 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Wiring Diagram
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips
1COOKTOP PARTS
2Cooktop, Glass & Bracket Assembly (White)
2Cooktop, Glass & Bracket Assembly (S.Steel)
2Cooktop, Glass & Bracket Assembly (Black)
3WP3196557 Whirlpool Screw
4WP3177991 Whirlpool Screw
5W10823699 Whirlpool Right Front Surface Element
5ELEMENT, SURFACE 2000/1000W RR
5Element, Surface (2500/1800/900W LF)
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Rail, Element (Left Hand)
6Rail, Element (Right Hand)
7Box, Burner
8WP3188425 Whirlpool Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP3191049 Infinite Switch Left Rear Right Front
14WP8286070 Whirlpool Infinite Switch Left Front
14WP4456027 Whirlpool Infinite Switch Right Rear
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
17Frame, Cooktop (S.Steel Only)
18WP8286096BL Whirlpool Knob
188286096WH Whirlpool Knob
18Knob, Control (4) (Cashmere Metal)
19Knob, Blower Switch (Cashmere Metalic)
19Knob, Blower Switch (White)
19WP8286097BL Whirlpool Knob
20Grille, Air (White)
20Grille, Air (Cashmere Metalic)
20Grille, Air (Black)
21Filter, Grease
259759094 Whirlpool Spring
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
