KECD806RWW04 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
WIRING HARNESS PARTS
Wire (14 Ga. 200 c Brown)
WPL 4456028
SPLICING WIRES–25FT. LENGTH
4456859 Whirlpool Oven Wire Harness
Strain Relief
Following Parts Not Illustrated
Miscellaneous
Following Parts Not Illustrated
Harness, Wire (Ceran Downdraft)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
ACCESSORY PARTS
WP8286642 Whirlpool Tape
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Conduit, Downdraft

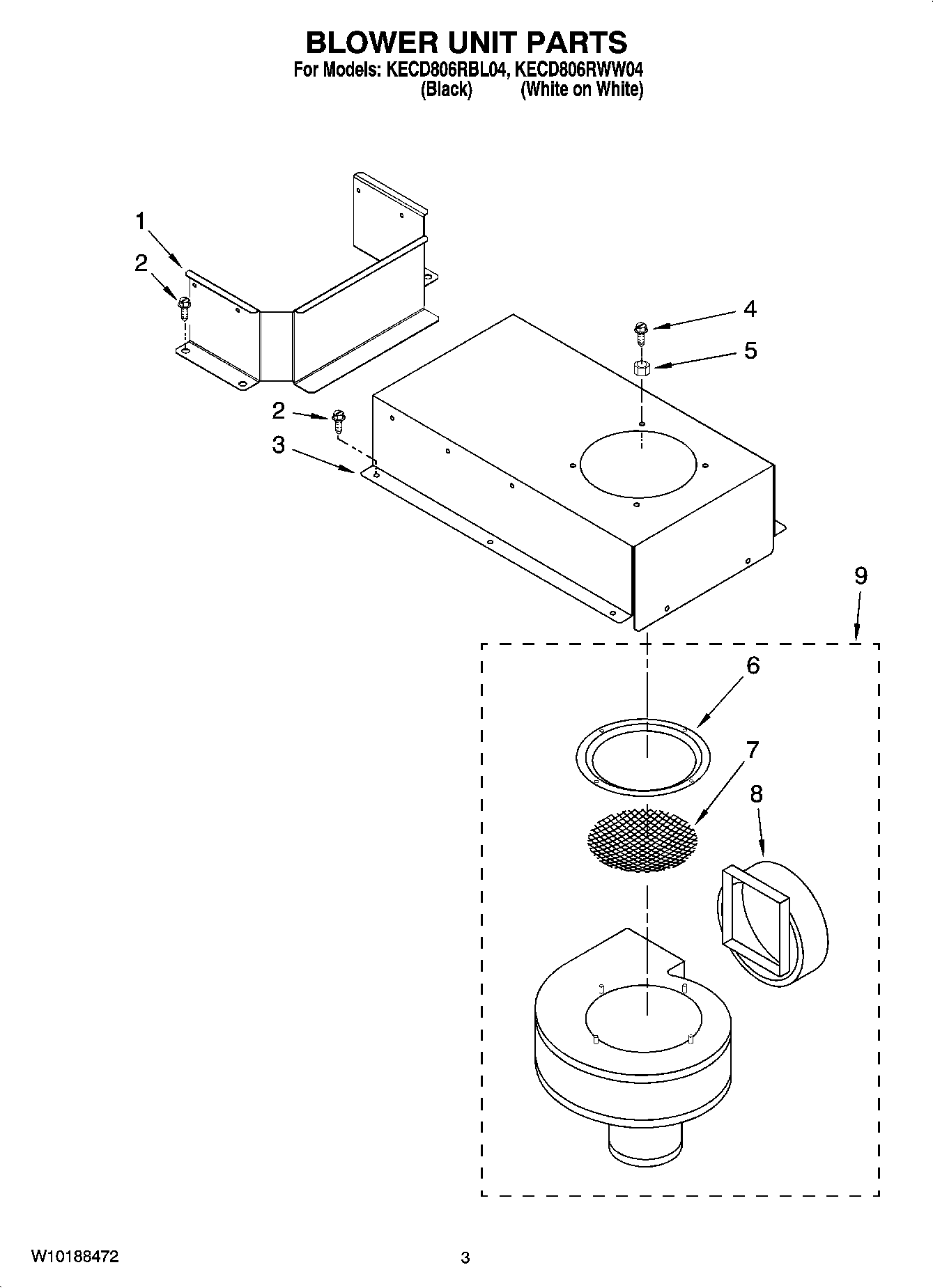

1Bracket, Shield
2WP3196557 Whirlpool Screw
3Bracket, Blower Mounting
4WP308685 Whirlpool Microwave Screw
5WP488130 Whirlpool Air Conditioner Nut
6Ring, Inlet
7Screen, Inlet
8Adapter, Vent
9WPW10109930 Whirlpool Blower Assembly
