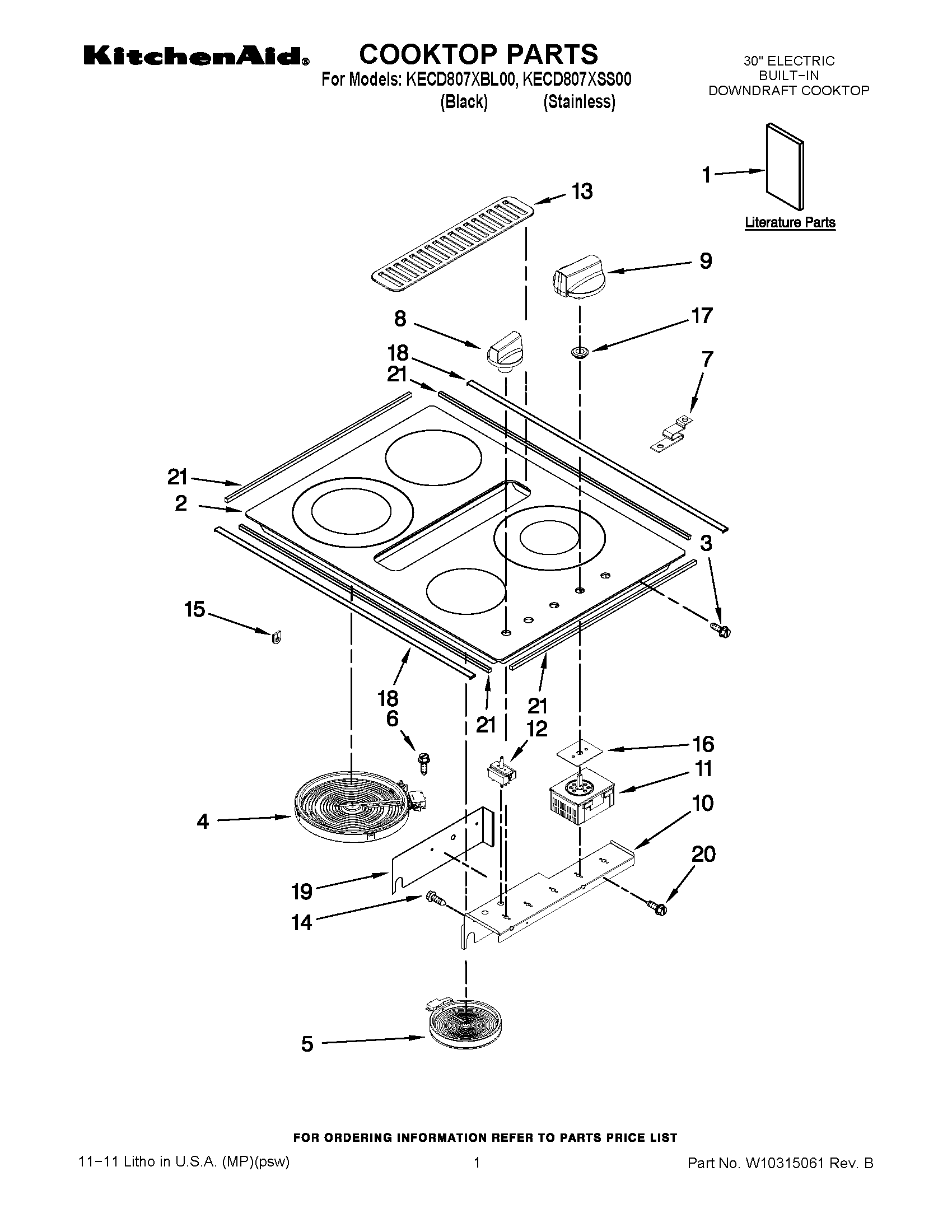

KECD807XBL00 01 – COOKTOP PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1	TECH SHEET
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	CARD, FLOW TEST
2	W10296247 Whirlpool Cooktop
4	WP8273993 Whirlpool Surface Element
4	WPW10178022 Whirlpool Range Radiant Surface Element Cooktop
4	WPW10221529 Whirlpool Surface Element
5	ELMNT-SURF
6	SCREW
7	SUPPORT,ELEMENT
8	W10298840 Whirlpool Knob
9	WPW10298835 Whirlpool Knob
10	PLATE, SWITCH
11	WPW10215034 Whirlpool Infinite Switch
11	WPW10222828 Whirlpool Infinite Switch
11	WPW10234425 Whirlpool Infinite Switch
12	WP4456836 Whirlpool Speed Switch
13	WPW10205094 Whirlpool Grille
14	SCREW
15	GROMMET, WIRE
16	GASKET, SWITCH
17	GROMMET
18	TRIM, STAINLESS (REAR)
18	TRIM STAINLESS ONLY (FRONT TRIM)
19	BRACKET, SWITCH PLATE SHIELD
20	WPL 7101P30960
21	TAPE, FOAM
