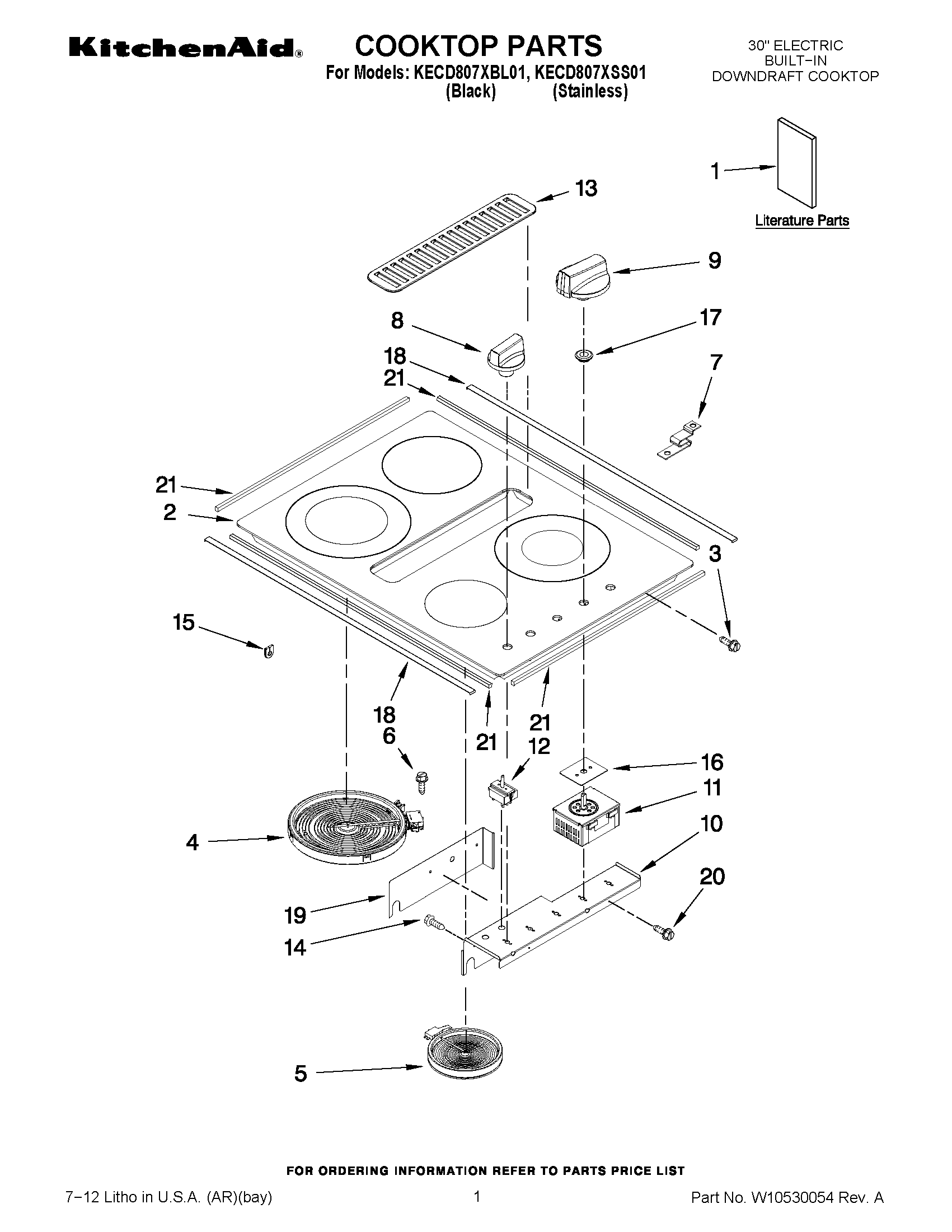

KECD807XBL01 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CARD, FLOW TEST
1USE & CARE GUIDE
1TECH SHEET
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2W10296247 Whirlpool Cooktop
4WP8273993 Whirlpool Surface Element
4WPW10221529 Whirlpool Surface Element
4WPW10178022 Whirlpool Range Radiant Surface Element Cooktop
5ELMNT-SURF
6SCREW
7SUPPORT,ELEMENT
8W10298840 Whirlpool Knob
9WPW10298835 Whirlpool Knob
10PLATE, SWITCH
11WPW10215034 Whirlpool Infinite Switch
11WPW10222828 Whirlpool Infinite Switch
11WPW10234425 Whirlpool Infinite Switch
12WP4456836 Whirlpool Speed Switch
13WPW10205094 Whirlpool Grille
14SCREW
15GROMMET, WIRE
16GASKET, SWITCH
17WPW10293874 Whirlpool Stove Cooktop Knob Grommet
18TRIM STAINLESS ONLY (FRONT TRIM)
18TRIM, STAINLESS (REAR)
19BRACKET, SWITCH PLATE SHIELD
20WPL 7101P30960
21TAPE, FOAM
