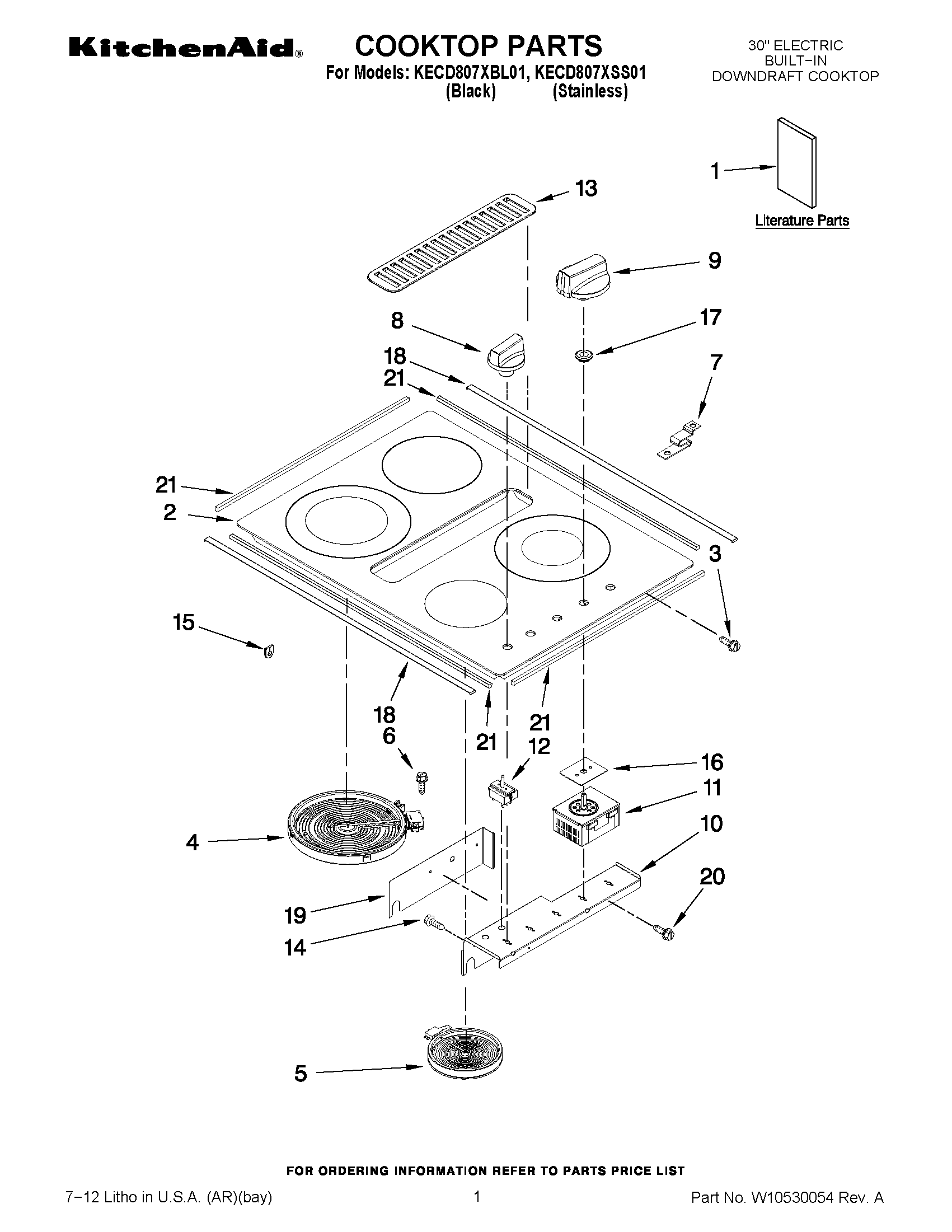

KECD807XSS01 01 – COOKTOP PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	CARD, FLOW TEST
1	USE & CARE GUIDE
1	TECH SHEET
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	W10296247 Whirlpool Cooktop
4	WP8273993 Whirlpool Surface Element
4	WPW10221529 Whirlpool Surface Element
4	WPW10178022 Whirlpool Range Radiant Surface Element Cooktop
5	ELMNT-SURF
6	SCREW
7	SUPPORT,ELEMENT
8	W10298840 Whirlpool Knob
9	WPW10298835 Whirlpool Knob
10	PLATE, SWITCH
11	WPW10215034 Whirlpool Infinite Switch
11	WPW10222828 Whirlpool Infinite Switch
11	WPW10234425 Whirlpool Infinite Switch
12	WP4456836 Whirlpool Speed Switch
13	WPW10205094 Whirlpool Grille
14	SCREW
15	GROMMET, WIRE
16	GASKET, SWITCH
17	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
18	TRIM STAINLESS ONLY (FRONT TRIM)
18	TRIM, STAINLESS (REAR)
19	BRACKET, SWITCH PLATE SHIELD
20	WPL 7101P30960
21	TAPE, FOAM
