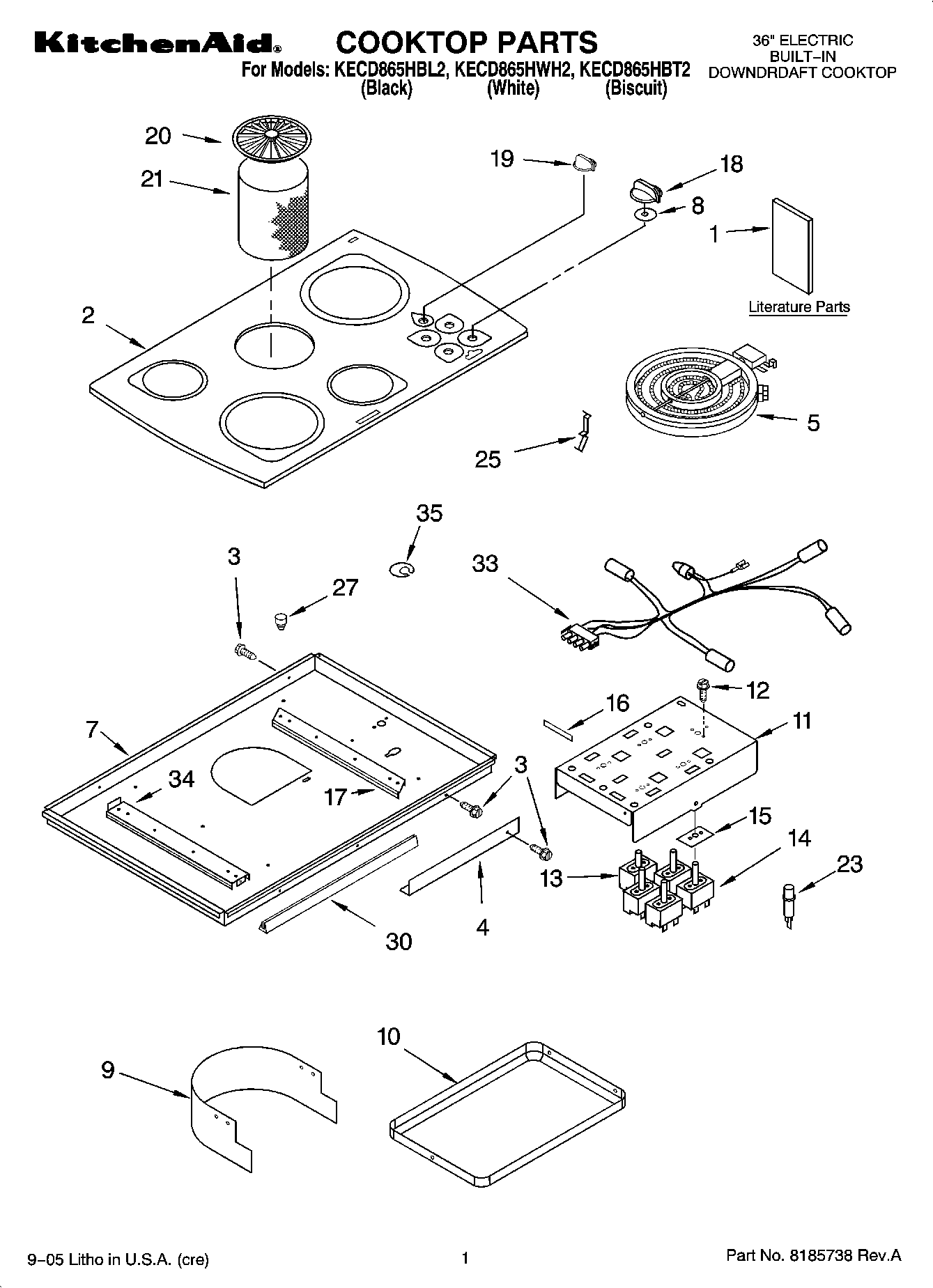

KECD865HBL2 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1COOKTOP PARTS
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass & Bracket Assembly (Honeycomb)
2Cooktop, Glass & Bracket Assembly (White)
2Cooktop, Glass & Bracket Assembly (Black)
3WP3196557 Whirlpool Screw
44455364 Whirlpool Oven Support Bracket
5W10823692 Whirlpool Dual Radiant Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823698 Whirlpool Surface Element Right Rear
5W10823699 Whirlpool Right Front Surface Element
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13Switch, Speed Control
13WP3188425 Whirlpool Seal Switch
148203534 Whirlpool Oven Top Burner Infinite Switch
14WP3191049 Infinite Switch Left Rear Right Front
14WP3191050 Whirlpool Infinite Switch
15Seal, Inifinite Switch
16W10491984 Whirlpool Switch Seal
17Rail, Element (Right Hand)
18WP9750372FF Whirlpool Knob
18WP9750372FC Whirlpool Knob
18WP9750372FW Whirlpool Knob Assembly
19WPL 3190724
19WPL 3190723
19Knob, Blower Switch (Biscuit)
20Grille, Air
21Filter, Grease
233193012 Whirlpool Oven Indicator Light
25Spring, Locator
27Bumper, Silicone
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34Rail, Element (Left Hand)
35WPL 3193094
