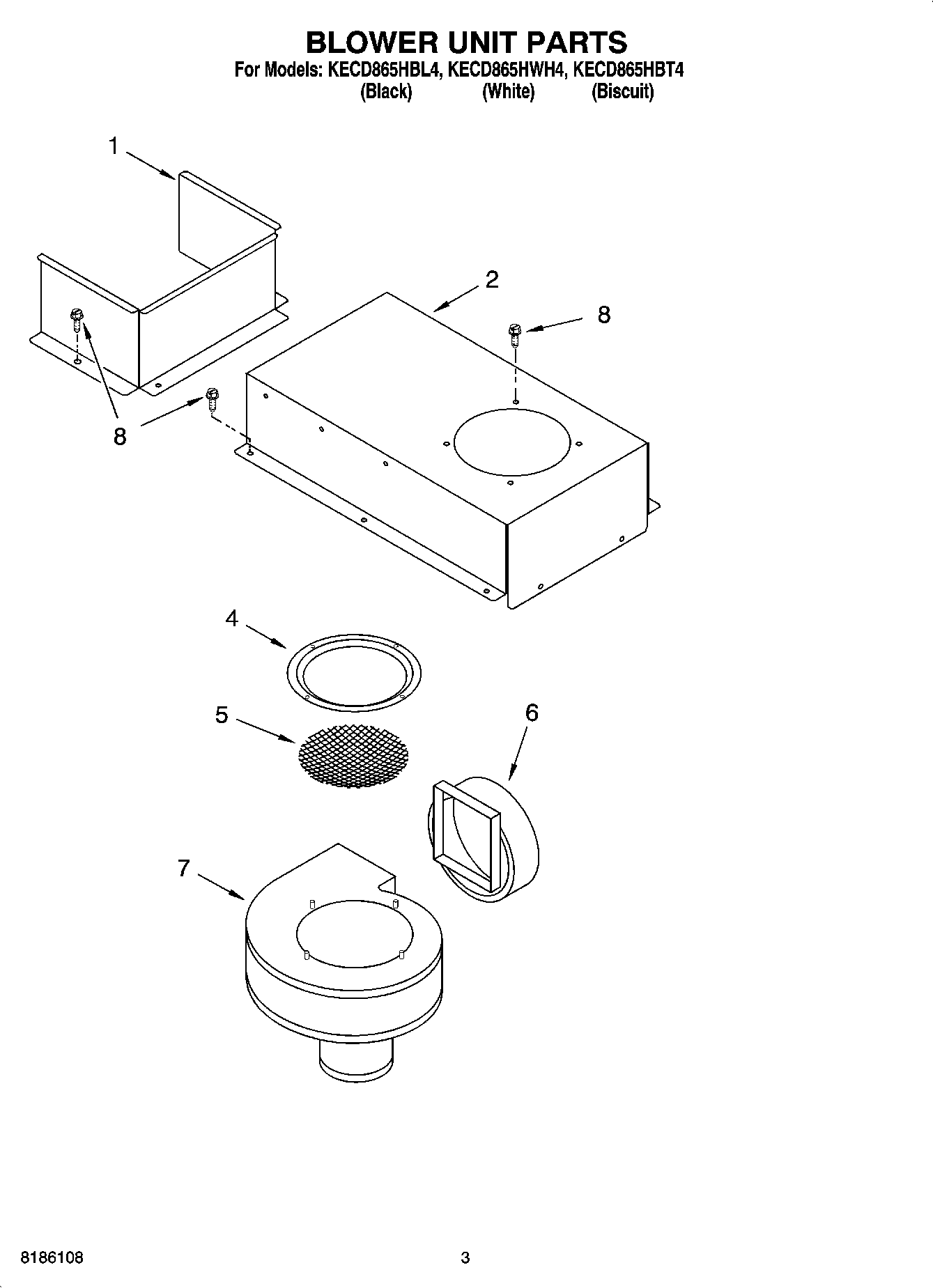

KECD865HBT4 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	1
	Bracket, Support (2)
	Hardware Asm.
	WPL 4456028
	Harness, Wire (Blower/Switch)
	Strain Relief
	Conduit, Downdraft
	Harness, Wire (Ceran Downdraft)
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	8528351 Whirlpool Clip
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WIRING HARNESS PARTS
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	Blower Motor Asm. (Includes Fan Asm)
8	WP3196557 Whirlpool Screw

No products found
