KECD865HWH0 01 – SECTION

KECD865HWH0 01 – SECTION

Written by

in

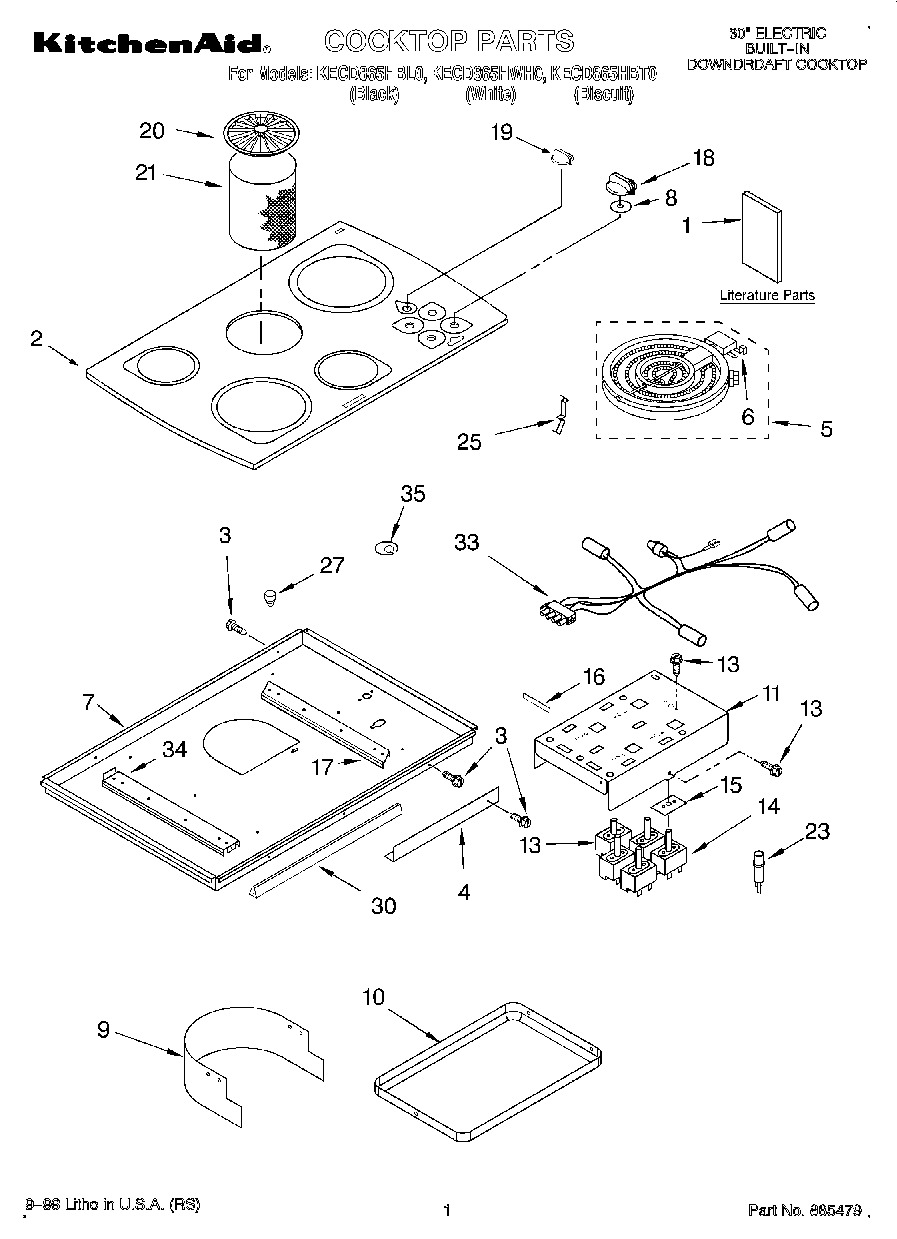

KECD865HWH0 01 – SECTION

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass & Bracket Assembly (Black)
2Cooktop, Glass & Bracket Assembly (White)
2Cooktop, Glass & Bracket Assembly (Honeycomb)
3WP3196557 Whirlpool Screw
4Bracket, Support (2)
5Element, Surface (Includes No. 16) (1500W Left Rear)
5W10823693 Whirlpool Surface Element
5Element, Surface (Includes No. 16) (1200W Right Front)
5W10823692 Whirlpool Dual Radiant Element
6Switch, Limiter (Use W/3191981 Element)
6Limiter, Temp. (LF)
6Limiter, Temp. (LF)
6Switch, Limiter (Use W/3191984 Element)
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Mounting Control
12WP486579 Whirlpool Air Conditioner Screw
13Switch, Speed Control
14WP3191050 Whirlpool Infinite Switch
148203534 Whirlpool Oven Top Burner Infinite Switch
14WP3191049 Infinite Switch Left Rear Right Front
15WP3188425 Whirlpool Seal Switch
16W10491984 Whirlpool Switch Seal
17Rail, Element (Right Hand)
18WP9750372FF Whirlpool Knob
18WP9750372FC Whirlpool Knob
18WP9750372FW Whirlpool Knob Assembly
19WPL 3190723
19Knob, Blower Switch (Biscuit)
19WPL 3190724
20Grille, Air
21Filter, Grease
233193012 Whirlpool Oven Indicator Light
25Spring, Locator
27Bumper, Silicone
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34Rail, Element (Left Hand)
35WPL 3193094
