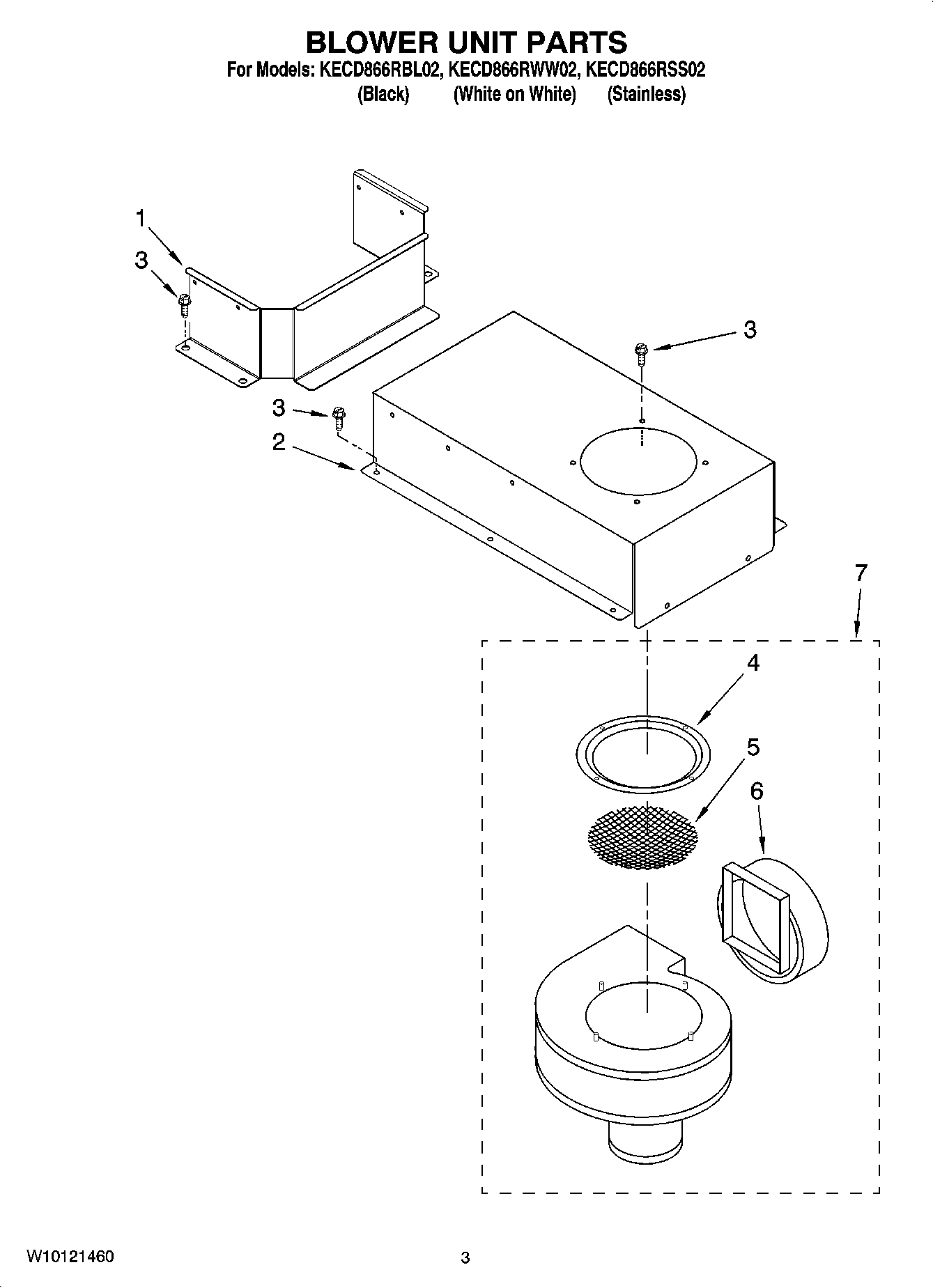

KECD866RBL02 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	8186533 Whirlpool Hardware
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Hardware Asm.
	WPL 4456028
	4456859 Whirlpool Oven Wire Harness
	Strain Relief
	Conduit, Downdraft
	Harness, Wire (Ceran Downdraft)
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WP3400015 Whirlpool Screw
	WP3400093 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WIRING HARNESS PARTS
	WP8286642 Whirlpool Tape
	8528351 Whirlpool Clip
	242831 Whirlpool Oven Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
1	Bracket, Shield
2	Bracket, Blower Mounting
3	WP3196557 Whirlpool Screw
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	WPW10109930 Whirlpool Blower Assembly
