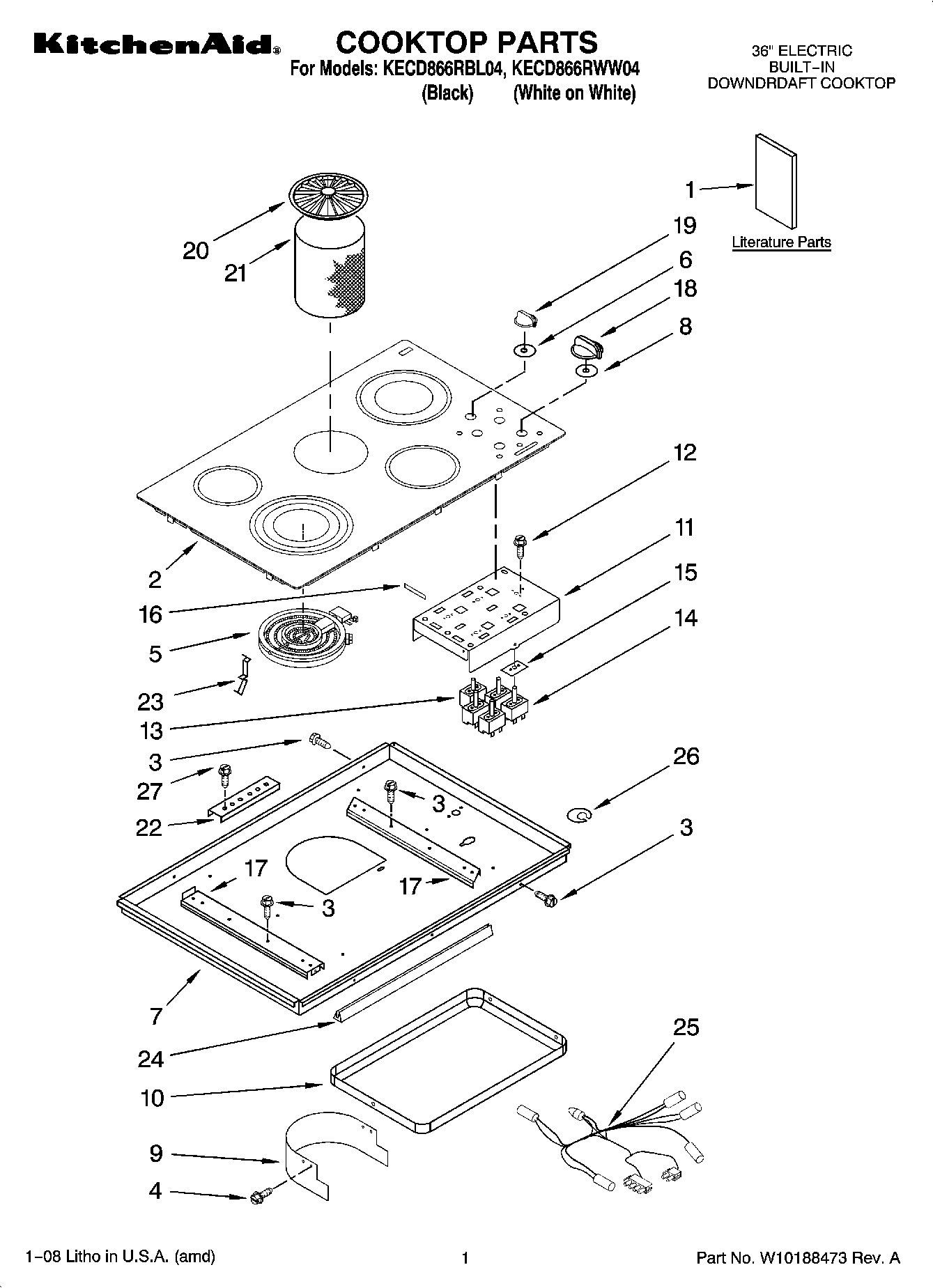

KECD866RBL04 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	W10141009 Whirlpool Cooktop
2	Cooktop, Glass & Bracket Assembly (White)
3	WP3196557 Whirlpool Screw
4	WP3177991 Whirlpool Screw
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	Element, Surface (RR 1000/2000W)
5	W10823699 Whirlpool Right Front Surface Element
5	Element, Surface (2500/1800/900W LF)
6	WP3188425 Whirlpool Seal Switch
7	Box, Burner
8	3183956 Whirlpool Oven Seal Switch
9	Shield, Vent
10	Drip Bowl, Grease
11	Bracket, Control Mounting
12	WP486579 Whirlpool Air Conditioner Screw
13	WP4456836 Whirlpool Speed Switch
14	WP4456027 Whirlpool Infinite Switch Right Rear
14	WP3191049 Infinite Switch Left Rear Right Front
14	WP8286070 Whirlpool Infinite Switch Left Front
15	Seal, Switch (White)
15	8285469 Whirlpool Oven Seal Switch
16	W10491984 Whirlpool Switch Seal
17	Rail, Element (Right Hand)
17	Rail, Element (Left Hand)
18	8286096WH Whirlpool Knob
18	WP8286096BL Whirlpool Knob
19	WP8286097BL Whirlpool Knob
19	Knob, Blower Switch (White)
20	Grille, Air (White)
20	Grille, Air (Black)
21	Filter, Grease
22	8186533 Whirlpool Hardware
23	9759094 Whirlpool Spring
24	Gasket, Vent Shield
25	Lamp, Hot Surface Indicator
26	WPL 3193094
27	WP3400093 Whirlpool Screw
